Create a MicroBlaze, Test the UART in SDK, and Boot Linux using 2019.1 Vivado and PetaLinux Tools

Updated: May 14, 2023




This post contains everything needed to create a MicroBlaze design and boot Linux on it over JTAG. It also contains links to all the IP documentation and how to smoke-test a design before using it.


Versions Used

2019.1 Vivado, PetaLinux Tools, and XSDK

VMWare Workstation 14 Player running Ubuntu 16.04.5 LTS running on Windows 10



Update Vivado 2019.1


Note


I needed this patch to build the bitstream.


Steps


Step #1: Download the patch at:

https://www.xilinx.com/support/answers/72956.html#:~:text=You%20will%20see%20a%20MIG,will%20not%20generate%20a%20response.


Step #2: Exit Vivado 2019.1


Note: commands assume Vivado is installed at:

/tools/Xilinx/Vivado/2019.1/bin/vivado


Step #3: Run

mkdir /tools/Xilinx/Vivado/2019.1/patches
mkdir /tools/Xilinx/Vivado/2019.1/patches/AR72956
pushd /tools/Xilinx/Vivado/2019.1/patches/AR72956
unzip ~/Downloads/AR72956_vivado_2019_1_preliminary_rev1.zip

Step #4: Restart Vivado 2019.1


Step #5: Check that the Patch Applied


Enter in the Design


Notes

For Linux to boot on MicroBlaze


Page 19 of https://www.xilinx.com/support/documentation/sw_manuals/xilinx2019_1/ug1144-petalinux-tools-reference-guide.pdf lists the requirements to run Linux on a MicroBlaze. I've left out both the Non-volatile memory and Ethernet in this design. Also, I use an AXI Timer, not a Dual channel timer.


Steps


Step #1: Run Vivado 2019.1


Step #2: File > Project > New


Step #3: Click Next on the Create New Vivado Project window


Step # 3.1: Click Next in the Project Name window


Step #3.2: (A) Click RTL Project and (B) click Next


Step # 3.3: (A) Click Boards, (B) enter zcu102, (C) click on the line, and (D) click Next


Step #3.4: Click Finish


Create the Block Design


Steps


Step #1: Click Create Block Design


Step #1.1: Click OK


Step #2: (A) Click Board, (B) Pull DDR4 SDRAM to the Diagram, and (C) click OK

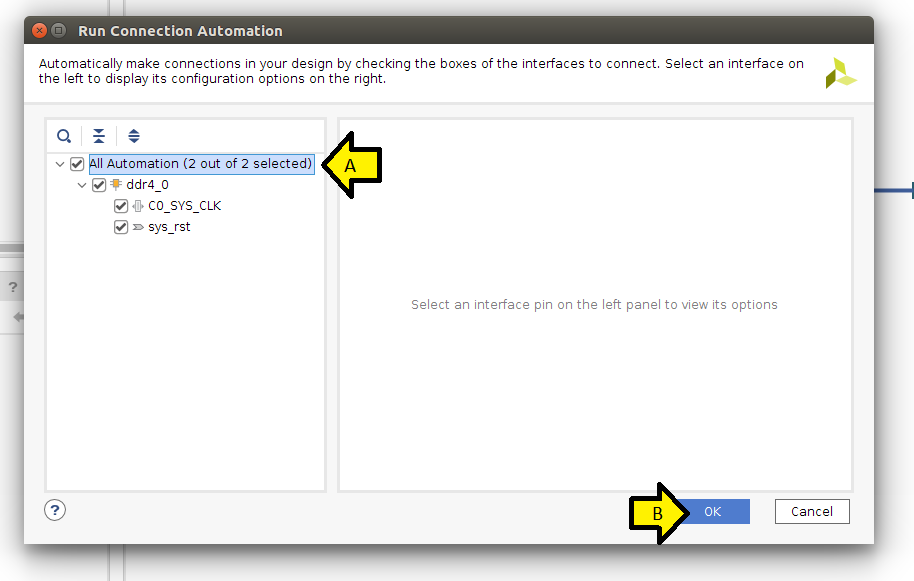

Step #3: Click Run Connection Automation


Step #3.1: (A) Check all checkboxes and (B) click OK

You should see:


Step #4: (A) Click +, (B) type micro, and (C) double-click MicroBlaze


Step #5: Click Run Block Automation


Step #6: (A) Check the Interrupt Controller checkbox and (B) click OK


Note: we select Linux with MMU later during IP customization


Note 2: this ^^^ step is how you get microblaze_0_local_memory

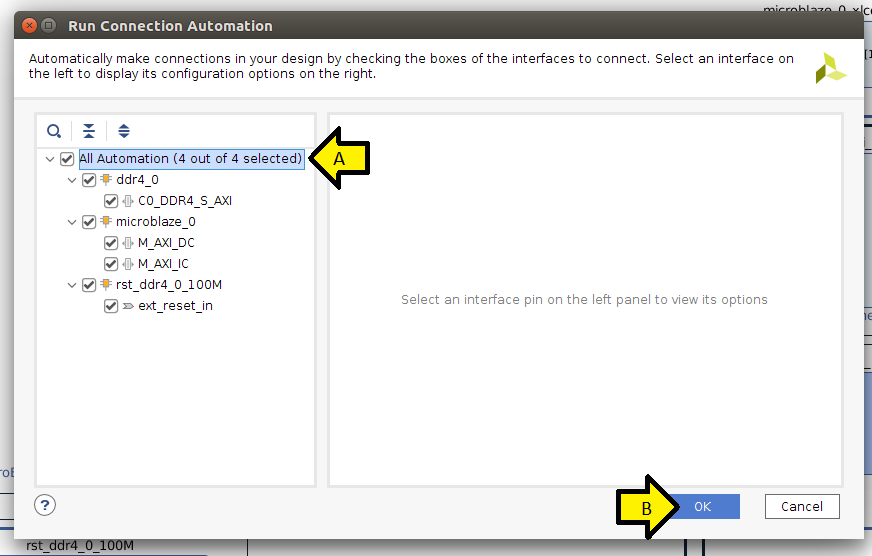

Step #7: Click Run Connection Automation


Step #7.1: (A) Select all checkboxes and (B) click OK

You should see:


Step #7.2: (A) Click Board, (B) click and drag UART, (C) click OK, and (D) click Run Connection Automation


Step #7.3: Click OK

You should see:


Step #8: (A) Click +, (B) Type AXI Timer, and (C) click AXI Timer


Step #8.1: Click Run Connection Automation



Step # 8.2: Click OK

You should see:



Step #9: Connect the axi_timer_0 interrupt and the axi_uartlite_0 interrupt pins to the microblaze_0_xlconcat


Note: you will still see the UART output in XSDK without this, and Linux will run, but you won't see any UART output.


Customize the MicroBlaze IP


Steps


Step #1: Double click on the microblaze_0 instance of the MicroBlaze


Step #1.1: (A) Select Linux with MMU and (B) click OK


You only need to set Linux with MMU. Here are the other pages as a reference.


Page 1


Page 2


Page 3


Page 4


Page 5


Page 6


Page 7


Get Ready to Create the Bitstream


Steps


Step #1: Check the Board



Step #2: Check the full design


Step #2.1: Zoom into the left side


Step #2.2: Zoom into the right side


Step #3: Check the Address Editor


Step #4: Check the Project Summary


Step #4.1: Click PROJECT MANAGER to get the Project Summary


You should see something like:


Create the Bitstream


Steps


Step #1: Create the HDL Wrapper


Step #1.1: (A) Click Sources, (B) right-click design_1 (design_1_hd), and (C) click Create HDL Wrapper...


Step #1.2: Leave Let Vivado manage wrapper and auto-update selected and click OK


You should see:


Step #2: Click Generate Bitstream


Step #2.1: Click Save


Step #2.2: Click Yes on the No Implementation Results Available notification box


Step #2.3: Select as many cores as you can and click OK


Note: this can take 1 to 2 hours to run


Note 2: You should see a status indicator in the upper right-hand corner


Program the Bitstream


Steps


Step #1: (A) Select Open Hardware Manager and (B) click OK


Step #2: Plug the UART and JTAG USB cables into the board...


Step #2.1: ...and into a hub...


Step #2.2: ...which is plugged into the computer


Important note: using a hub is a good way to connect the JTAG and UART USB devices to a VM. It has worked for VMWare and VirtualBox.


Step #3: Make sure the SW6 is set to JTAG boot the ZCU102


Step #4: Turn on the ZCU102


Step #5: Ensure that the Cygnal Integrated CP2108 Quad USB to UART Bridge Controller is enabled and Future Devices Digilent USB Device is enabled.


Step #6: Click Open target



Step #7: Click Auto Connect


Step #8: Click Program device


Step #9: Click Program


You should see:



Export the Design for UART Smoke Test with XSDK and Creating a Linux Build with PetaLinux


Steps

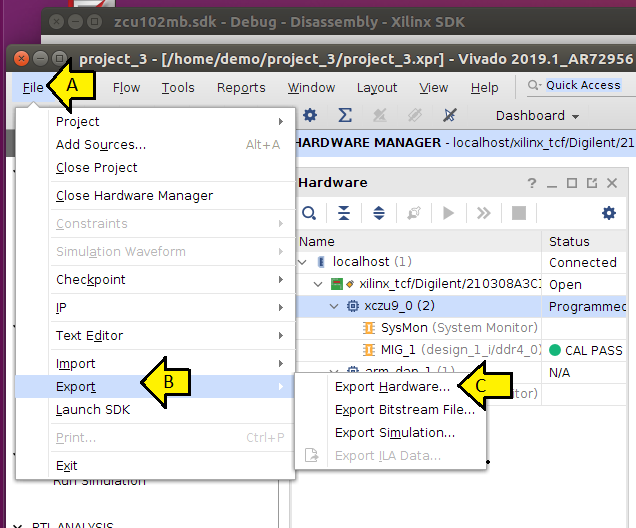

Step #1: (A) Click File, (B) Export, and (C) Export Hardware...


Step #1.1: Click OK



Create a Hello World test App to Test the UART Works Before Creating a Linux Build


Steps


Step #1: (A) Click File and (B) click Launch SDK


Step #1.1: Click OK

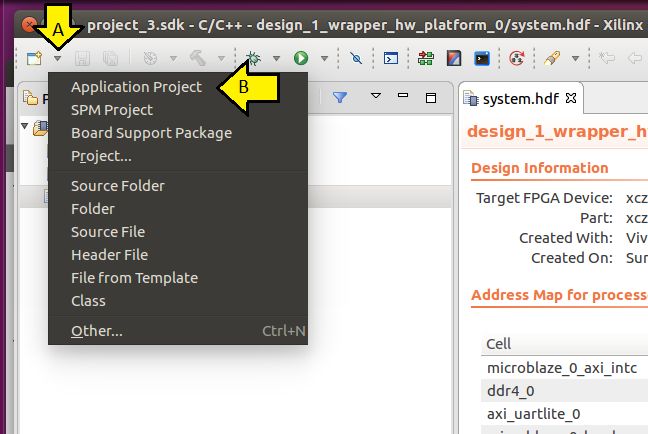

Step #2: (A) Click the drop-down and (B) click Application Project


Step #2.1: (A) Use Hello_world for the Project name: and (B) click Next


Important Note: never use spaces; the SDK cannot handle spaces


Step #2.2: (A) Click Hello World and (B) Finish


Step #3: Open a terminal and start screen using:

screen /dev/ttyUSB2 9600

Note 1: Type Ctrl-a d to detach, Ctrl-a k to kill


Note 2: After detaching, reattached with:

screen -r

Note 3: if someone else has attached, reattach with:

screen -x

Note 4: to clear what's in a screen, type Ctrl-a C. To get more commands, type Ctrl-a ?

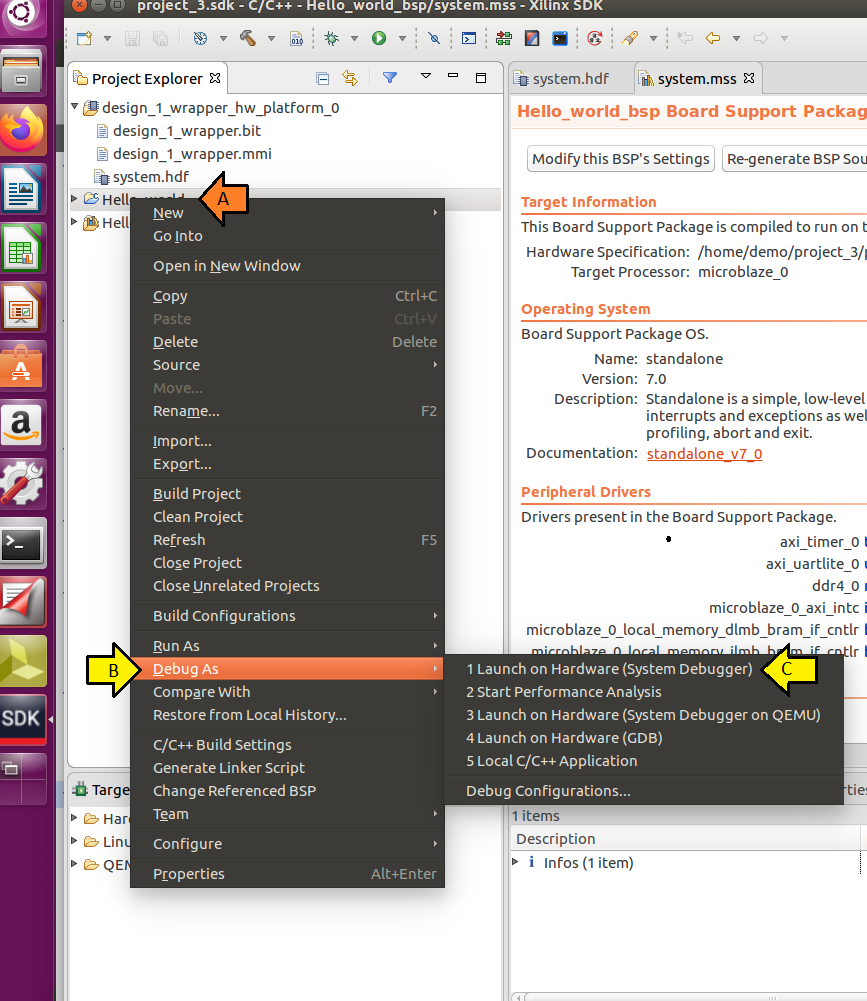

Step #4: (A) Right-click on Hello_world, (B) click Debug As, and (C) click Launch on Hardware (System Debugger)


Step #5: Click Yes to Confirm Perspective Switch

You will likely not see anything because the target is stuck at:

void XUartLite_SendByte(UINTPTR BaseAddress, u8 Data)
{
 while (XUartLite_IsTransmitFull(BaseAddress));   /* <<<<< stuck */

 XUartLite_WriteReg(BaseAddress, XUL_TX_FIFO_OFFSET, Data);
}

...and the memory load from the UART returned:


xsct% mrd 0x40600000

xsct% Memory read error at 0x40600000. Memory access exception

0xdec0ce1c


We'll fix that next by ensuring we click the Reset entire system check box in the Debug configuration.


Step #6: (A) Click the debug drop down and (B) click Debug Configurations....

Step #6.1: (A) Check the Reset entire system checkbox, (B) click Apply, and (C) click Debug


Step #6.2: Click OK


Step #7:Click Step Over


Step #7.1: Click Step Over again


Step #7.2: ...and one more time observing Hello World on your screen session


Note: To restart debugging, click the Bug...

...and click OK...



Create and Build MicroBlaze Linux


Steps


Step #1: Type the following to create a PetaLinux project and build it

cd plxprjs/
source ~/petalinux/2019.1/settings.sh
petalinux-create --type project --template microblaze --name zcu102mb
cd zcu102mb
petalinux-config --get-hw-description=/home/demo/project_3/project_3.sdk
# Accept defaults and exit (just select Exit in the autoconfig)
petalinux-build

Step #2: Reset the ZCU102


Step #3: Download the FPGA using xsct

cd /home/demo/petalinux/2019.1/tools/xsct/bin/
 ./xsct
 connect -url tcp:localhost:3121
 targets
 # Select the PL
 targets 3
 fpga -no-revision-check /home/demo/plxprjs/zcu102mb/images/linux/system.bit

Note 1:

I needed to use xsct flow because I got a

WARNING: [Xicom 50-99] Incorrect bitstream assigned to device. Bitstream was generated for part xczu9eg-ffvb1156-2-e, target device (with IDCODE revision 1) is compatible with es2 revision bitstreams.

Note 2: You can download the bit file using HARDWARE MANAGER by running:

set_param xicom.use_bitstream_version_check false

...in Vivado


Step #4: Back in PetaLinux type:

petalinux-boot --jtag --kernel -v

Note: Consider always using -v to see what the command actually does


Step #5: Examine build output:

INFO: sourcing build tools
XSDB Script:
INFO: Launching XSDB for file download and boot.
INFO: This may take a few minutes, depending on the size of your image.

connect
targets -set -nocase -filter {name =~ "microblaze*#0"}
puts stderr "INFO: Downloading ELF file: /home/demo/plxprjs/zcu102mb/images/linux/image.elf to the target."
dow "/home/demo/plxprjs/zcu102mb/images/linux/image.elf"
after 2000
con
exit
rlwrap: warning: your $TERM is 'xterm-256color' but rlwrap couldn't find it in the terminfo database. Expect some problems.: Inappropriate ioctl for device
INFO: Downloading ELF file: /home/demo/plxprjs/zcu102mb/images/linux/image.elf to the target.
Downloading Program -- /home/demo/plxprjs/zcu102mb/images/linux/image.elf
 section, .text: 0xc0000000 - 0xc043d427
 section, __fdt_blob: 0xc043d428 - 0xc044d427
 section, .rodata: 0xc044e000 - 0xc0565adf
 section, .pci_fixup: 0xc0565ae0 - 0xc056767f
 section, __ksymtab: 0xc0567680 - 0xc056ddbf
 section, __ksymtab_gpl: 0xc056ddc0 - 0xc0572717
 section, __ksymtab_strings: 0xc0572718 - 0xc058bf6c
 section, __param: 0xc058bf70 - 0xc058c537
 section, __modver: 0xc058c538 - 0xc058cfff
 section, __ex_table: 0xc058d000 - 0xc058e53f
 section, .notes: 0xc058e540 - 0xc058e57b
 section, .sdata2: 0xc058e57c - 0xc058efff
 section, .data: 0xc058f000 - 0xc05b557f
 section, .init.text: 0xc05b6000 - 0xc05d9c1f
 section, .init.data: 0xc05d9c20 - 0xc05db6b3
 section, .init.ivt: 0xc05db6b4 - 0xc05db6db
 section, .init.setup: 0xc05db6dc - 0xc05dba8f
 section, .initcall.init: 0xc05dba90 - 0xc05dbe07
 section, .con_initcall.init: 0xc05dbe08 - 0xc05dbe0b
 section, .init.ramfs: 0xc05dbe0c - 0xc1283013
 section, .bss: 0xc1284000 - 0xc1310533
100% 18MB 0.2MB/s 01:52
Setting PC to Program Start Address 0x80000000
Successfully downloaded /home/demo/plxprjs/zcu102mb/images/linux/image.elf

Step #6: Examine console output


Note 1: it looks like the console hangs, but it eventually came up (after a few minutes)


Note 2: Use root for the username and root for the password

Ramdisk addr 0x00000000,
Compiled-in FDT at (ptrval)
Linux version 4.19.0-xilinx-v2019.1 (oe-user@oe-host) (gcc version 8.2.0 (GCC)) #1 Sun Mar 7 18:29:2
2 UTC 2021
setup_memory: max_mapnr: 0x20000
setup_memory: min_low_pfn: 0x80000
setup_memory: max_low_pfn: 0xa0000
setup_memory: max_pfn: 0xa0000
Zone ranges:
 DMA [mem 0x0000000080000000-0x000000009fffffff]
 Normal empty
 HighMem empty
Movable zone start for each node
Early memory node ranges
 node 0: [mem 0x0000000080000000-0x000000009fffffff]
Initmem setup node 0 [mem 0x0000000080000000-0x000000009fffffff]
On node 0 totalpages: 131072
 DMA zone: 1024 pages used for memmap
 DMA zone: 0 pages reserved
 DMA zone: 131072 pages, LIFO batch:31
setup_cpuinfo: initialising
setup_cpuinfo: Using full CPU PVR support
wt_msr_noirq
pcpu-alloc: s0 r0 d32768 u32768 alloc=1*32768
pcpu-alloc: [0] 0
Built 1 zonelists, mobility grouping on. Total pages: 130048
Kernel command line: console=ttyUL0,9600 earlyprintk
Dentry cache hash table entries: 65536 (order: 6, 262144 bytes)
Inode-cache hash table entries: 32768 (order: 5, 131072 bytes)
Memory: 499716K/524288K available (4341K kernel code, 153K rwdata, 1276K rodata, 13108K init, 561K b
ss, 24572K reserved, 0K cma-reserved, 0K highmem)
Kernel virtual memory layout:
 * 0xfffea000..0xfffff000 : fixmap
 * 0xff800000..0xffc00000 : highmem PTEs
 * 0xff800000..0xff800000 : early ioremap
 * 0xf0000000..0xff800000 : vmalloc & ioremap
NR_IRQS: 64, nr_irqs: 64, preallocated irqs: 0
irq-xilinx: /amba_pl/interrupt-controller@41200000: num_irq=2, edge=0x1
/amba_pl/timer@41c00000: irq=1
clocksource: xilinx_clocksource: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 6370868154 ns
xilinx_timer_shutdown
xilinx_timer_set_periodic
sched_clock: 32 bits at 300MHz, resolution 3ns, wraps every 7158278654ns
Calibrating delay loop... 49.35 BogoMIPS (lpj=246784)
pid_max: default: 4096 minimum: 301
Mount-cache hash table entries: 1024 (order: 0, 4096 bytes)
Mountpoint-cache hash table entries: 1024 (order: 0, 4096 bytes)
devtmpfs: initialized
random: get_random_u32 called from bucket_table_alloc+0xa0/0x23c with crng_init=0
clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns
futex hash table entries: 16 (order: -4, 448 bytes)
NET: Registered protocol family 16
audit: initializing netlink subsys (disabled)
PCI: Probing PCI hardware
audit: type=2000 audit(0.200:1): state=initialized audit_enabled=0 res=1
vgaarb: loaded
clocksource: Switched to clocksource xilinx_clocksource
NET: Registered protocol family 2
tcp_listen_portaddr_hash hash table entries: 256 (order: 0, 6144 bytes)
TCP established hash table entries: 4096 (order: 2, 16384 bytes)
TCP bind hash table entries: 4096 (order: 4, 81920 bytes)
TCP: Hash tables configured (established 4096 bind 4096)
UDP hash table entries: 256 (order: 1, 12288 bytes)
UDP-Lite hash table entries: 256 (order: 1, 12288 bytes)
NET: Registered protocol family 1
RPC: Registered named UNIX socket transport module.
RPC: Registered udp transport module.
RPC: Registered tcp transport module.
RPC: Registered tcp NFSv4.1 backchannel transport module.
PCI: CLS 0 bytes, default 32
random: fast init done
Skipping unavailable RESET gpio -2 (reset)
workingset: timestamp_bits=30 max_order=17 bucket_order=0
romfs: ROMFS MTD (C) 2007 Red Hat, Inc.
io scheduler noop registered
io scheduler deadline registered
io scheduler cfq registered (default)
io scheduler mq-deadline registered
io scheduler kyber registered
Serial: 8250/16550 driver, 4 ports, IRQ sharing disabled
40600000.serial: ttyUL0 at MMIO 0x40600000 (irq = 2, base_baud = 0) is a uartlite
console [ttyUL0] enabled
brd: module loaded
libphy: Fixed MDIO Bus: probed
NET: Registered protocol family 17
Key type encrypted registered
Warning: unable to open an initial console.
Freeing unused kernel memory: 13108K
This architecture does not have kernel memory protection.
Run /init as init process
random: dd: uninitialized urandom read (512 bytes read)
random: dropbearkey: uninitialized urandom read (32 bytes read)
random: dropbearkey: uninitialized urandom read (32 bytes read)
random: crng init done

PetaLinux 2019.1 zcu102mb /dev/ttyUL0

zcu102mb login:


Example of Checking the Pins and How the Pins Map to a Part


Once the bitstream has completed, check package pins


To get to the Package Pins


Step #1: Click Open Implemented Design


Step #2: A) Click Window, B) click I/O Ports


Step #3: Turn off Group by Interface and Bus to get a linear tale


Package Pins:



USER_SI570


Schematic

AL7 USER_SI570_N

AL8 USER_SI570_P

SI570


BOM

Ref Des: U42

Device: Oscillator

Package: SI570

Value: 10MHZ_TO_810MHZ

Voltage: N/A

Tolerance: 50PPM

Dielectric: N/A

Power: N/A

Manf: SILABS

Manf P/N: 570BAB001614DG

Dist: Silicon Labs

Dist P/N: 570BAB001614DG

Alternate P/N: N/A

Barcode: 600047


Datasheet



UART2_TXD_O_FPGA_RXD & UART2_RXD_I_FPGA_TXD


Schematic


F13 UART2_TXD_O_FPGA_RXD

E13 UART2_RXD_I_FPGA_TXD


BOM

CP2108

Item#: 268

Qty: 1

Ref Des: U40

Device: IC Bridge

Package: 64_VFQFN

Value: CP2108

Voltage: 3.3V

Tolerance: N/A

Dielectric: N/A

Power: N/A

Manf: SILICON LABS

Manf P/N: CP2108-B02-GM

Dist: Digikey

Dist P/N: 336-3020-ND

Alternate P/N: N/A

Barcode: 500404


Datasheet




Core Docs


mdm_0

MicroBlaze Debug Module (MDM) (3.2)

MicroBlaze Debug Module v3.2 LogiCORE IP Product Guide Vivado Design Suite

PG115 (v3.2) January 21, 2021


ddr4_0

DDR4 SDRAM (MIG) (2.2)


microblaze_0

MicroBlaze (11.0)


rst_ddr4_0_300M

Processor System Reset (5.0)

Processor System Reset Module v5.0 LogiCORE IP Product Guide PG164 November 18, 2015


axi_uartlite_0

AXI Uartlite (2.0)

AXI UART Lite v2.0 LogiCORE IP Product Guide Vivado Design Suite PG142 April 5, 2017


axi_smc

AXI SmartConnect (1.0)

SmartConnect v1.0 LogiCORE IP Product Guide Vivado Design Suite PG247 February 3, 2020


rst_ddr4_0_100M

Processor System Reset

Processor System Reset (5.0)

Processor System Reset Module v5.0 LogiCORE IP Product Guide PG164 November 18, 2015


microblaze_0_axi_periph

AXI Interconnect

AXI Interconnect (2.1)

AXI Interconnect v2.1 LogiCORE IP Product Guide Vivado Design Suite PG059 December 20, 2017


microblaze_0_xlconcat

Concat

Concat (2.1)


microblaze_0_axi_intc

AXI Interrupt Controller

AXI Interrupt Controller (4.1)

AXI Interrupt Controller (INTC) v4.1 LogiCORE IP Product Guide Vivado Design Suite PG099 June 24, 2020


microblaze_0_local_memory

dlmb_v10

Local Memory Bus (LMB) 1.0

Local Memory Bus (LMB) v3.0 LogiCORE IP Product Guide Vivado Design Suite PG113 April 6, 2016


dlmb_bram_if_cntlr

LMB BRAM Controller

LMB BRAM Controller (4.0)

LMB BRAM Interface Controller v4.0 LogiCORE IP Product Guide Vivado Design Suite PG112 January 21, 2021


lmb_bram

Block Memory Generator

Block Memory Generator (8.4)

Block Memory Generator v8.4 LogiCORE IP Product Guide Vivado Design Suite PG058 December 9, 2019



References


Zynq UltraScale+ MPSoC ZCU102 Evaluation Kit


PetaLinux Tools Documentation Reference Guide UG1144 (v2019.1) May 22, 2019


MicroBlaze Processor Reference Guide UG984 (v2019.1) May 22, 2019:


MicroZed Chronicles: Building PetaLinux for MicroBlaze — Part One


MicroZed Chronicles: Building PetaLinux for MicroBlaze — Part 2


Running Hello World on Microblaze + ZCU102


Utilizing PS memory to execute Microblaze application on Zynq Ultrascale


Vivado Design Suite User Guide Embedded Processor Hardware Design UG898 (v2019.1) June 4, 2019


Vivado Design Suite User Guide Designing IP Subsystems Using IP Integrator UG994 (v2019.1) May 22, 2019


Generating Basic Software Platforms Reference Guide

UG1138 (v2018.2) July 16, 2018

UG1138 (v2019.2) October 30, 2019


Xilinx logo from [link]




bottom of page
