Install 2019.2 Vitis on Ubuntu 16.04.5



This post demonstrates an install of Vitis 2019.2 on Ubuntu 16.04.5.


Steps


#1 Go to

https://www.xilinx.com/support/download/index.html/content/xilinx/en/downloadNav/vitis/archive-vitis.html


#2 Download:

Xilinx Unified Installer 2019.2: Linux Self Extracting Web Installer (BIN - 115.4 MB) @ https://www.xilinx.com/member/forms/download/xef.html?filename=Xilinx_Unified_2019.2_1106_2127_Lin64.bin


MD5 SUM Value : b8d415a14a84241bdbae1f6a8a6e9a11


#3 Check install requirements:

https://www.xilinx.com/html_docs/xilinx2019_2/vitis_doc/aqm1532064088764.html


#4 Run:

cd /mnt/hgfs/shared

./Xilinx_Unified_2019.2_1106_2127_Lin64.bin


#5 Click Next > @

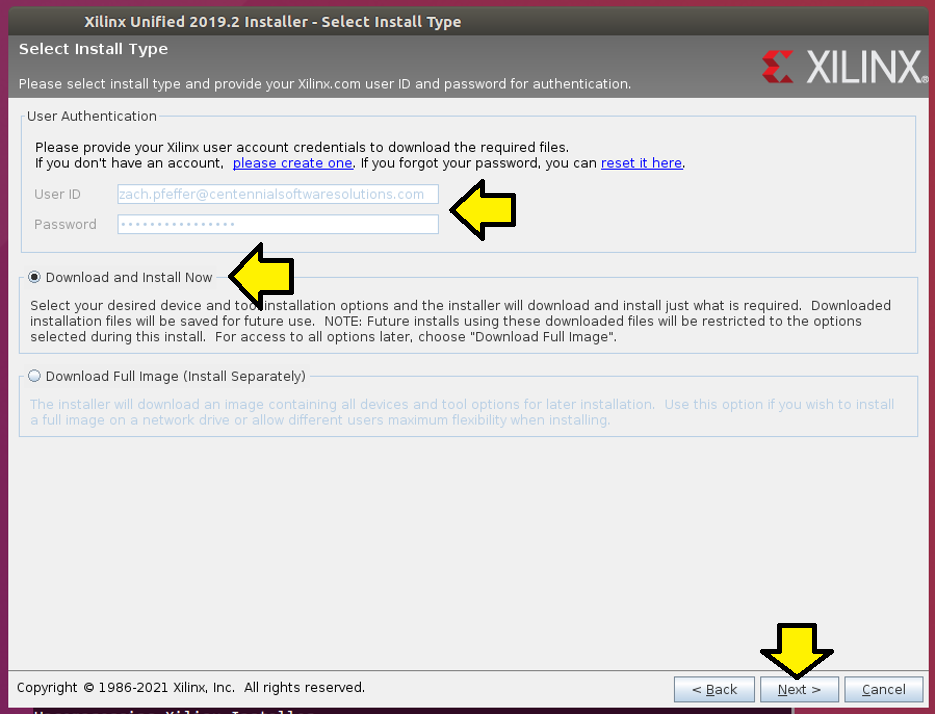

#6 Enter your Xilinx account, select Download and Install Now, and click Next > @


#7 Agree to each term and click Next > @


#8 Ensure you select Vitis and click Next > @


#9 Click Next > @


#10 For just doing Zynq-7000 and Zynq UltraScale+ MPSoC development select these options and click Next > @


#11 Install to /home/demo/xsdk and click Next >


#12 In another terminal type df -h to ensure you have enough room

Example:

/dev/sda1 216G 93G 113G 46% /

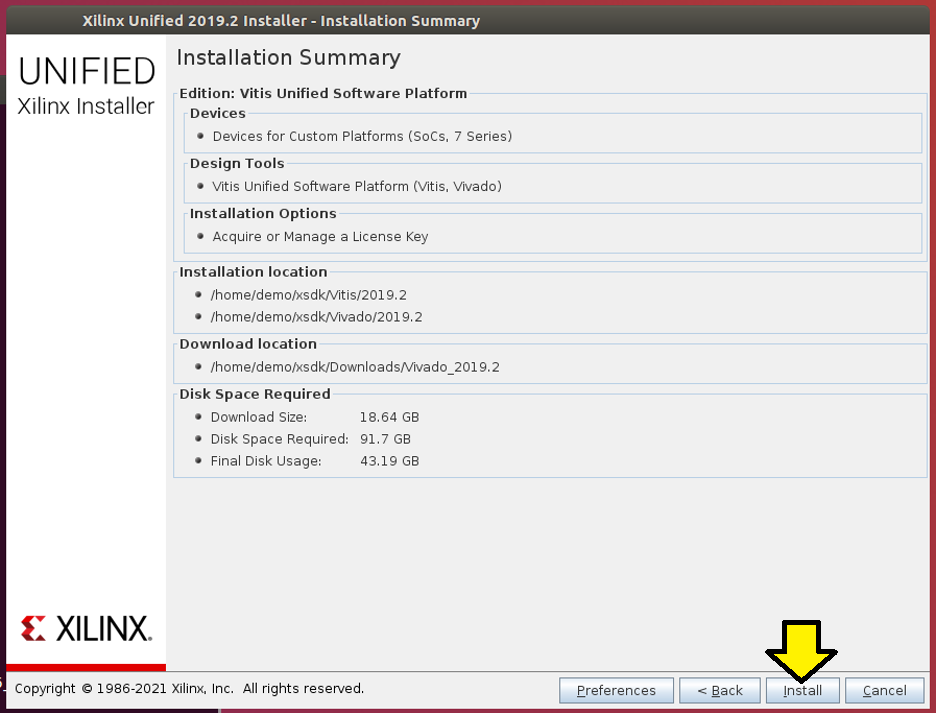

#13 Click Install @


#14 Click OK


#15 Close the Vivado License Manager 2019.1 by clicking File > Exit



References


Vitis 2019.2 Docs @ https://www.xilinx.com/support/documentation-navigation/design-hubs/2019-2/dh0089-vitis-embedded.html
