A Dummies Guide to Ultra96-V2 Initial Setup (No License Key Required)

xilinx_logo_1

This guide is meant to supplement the excellent “Ultra96-V2 Hardware and Tools Initial Setup” blog entry by Brian Davis, which will be referred to as “Brians’s Guide (BG).” The big difference seems to be in the license setup, which doesn’t seem to be required with the method I will be describing. Only the Windows install will be described.

Brians Ultra96-V2 Hardware and Tools Initial Setup

https://www.centennialsoftwaresolutions.com/post/ultra96-v2-hardware-and-tools-initial-setup?gclid=EAIaIQobChMI8dyz9KPe5AIVYhh9Ch0aiAaAEAAYASAAEgIj9fD_BwE

1.) Follow BG Steps 1-2 to order the hardware.

2.) Per BG Step 3, click on the download link, which should prompt you to create an account.

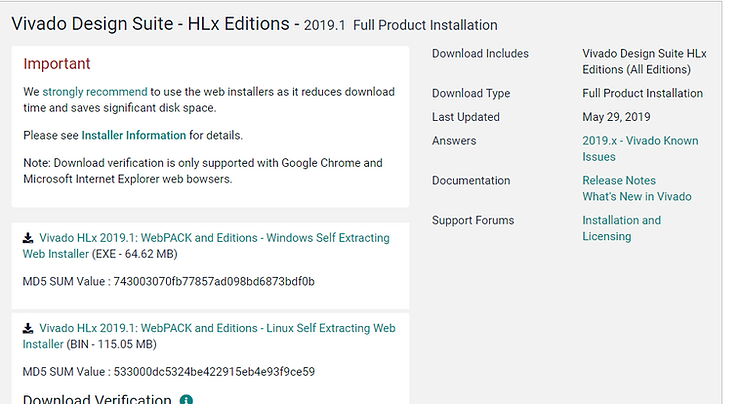

3.) Download the Vivado HLx 2019.1 WebPACK and Editions

download_vivado_hlx_2019.1_2

4.) Run the downloaded file

run_download_file_3

5.) You will be prompted to enter your Xilinx UserID and Password created during the download process.

enter_xilinx_login_info_4

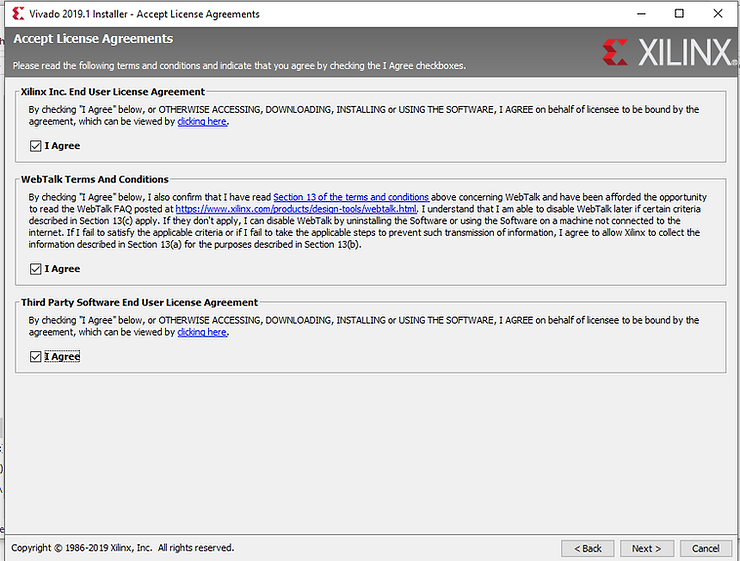

6.) Next are the user agreements

agree_to_user_agreememts_5

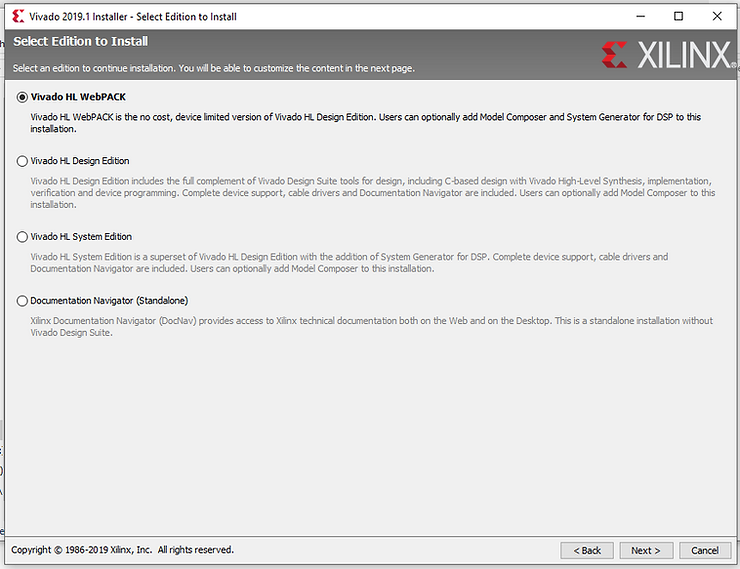

7.) Install the Vivado HL WebPACK

install_vivado_hl_webpack_6

8.) Use the default items

use_default_items_7

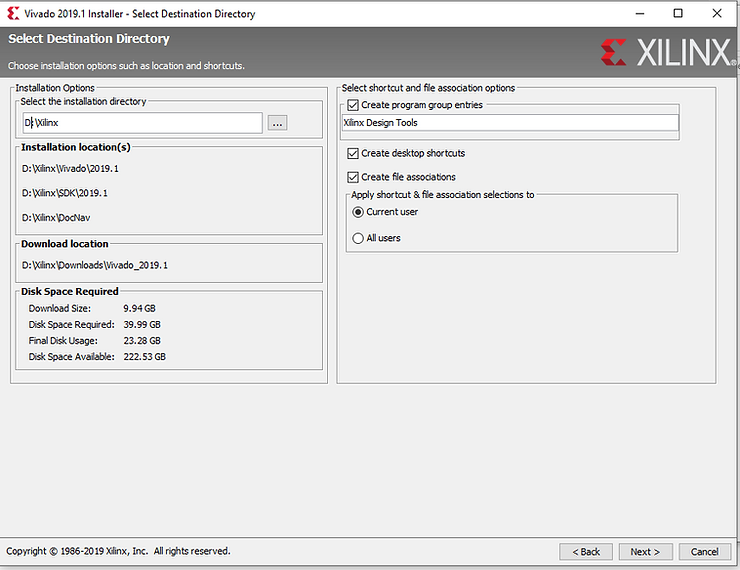

9.) Select your destination directory (I changed mine from default)

select_destination_directory_8

10.) You should then see an Installation Summary

installation_summary_9

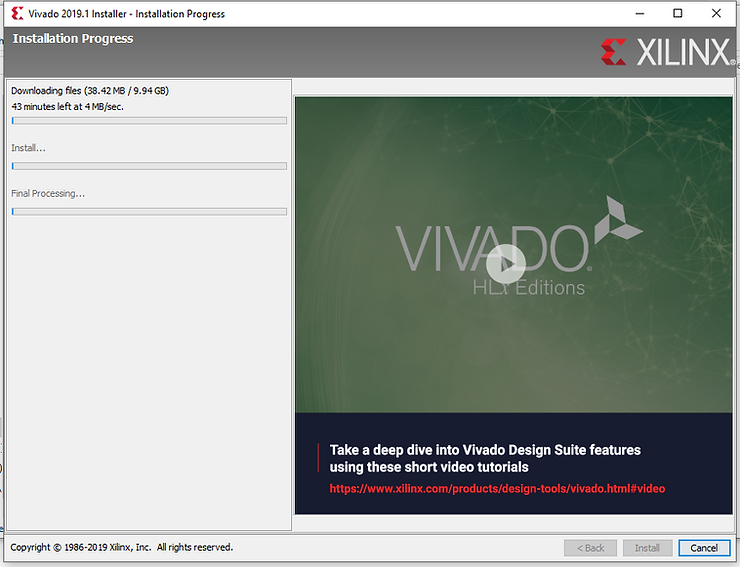

11.) Click on Install to start the install process; it typically takes 20 minutes to download and about 20 minutes to install.

start_install_process_10

12.) Scroll down to the zedboard URLS in the BG guide and download any files you might need (note that none of the available files are needed to complete this guide; it just references stuff you might find useful)

13.) Follow steps 1-5 in the BG guide following the zedboard URLs (step 3 is very important!)
