“About Vitis IDE” - a Wealth of Information

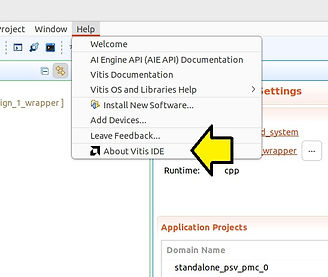

After clicking About Vitis IDE, this post shows examples of all the information available in each sub-menu. The info at Installation Details - Configuration - Text and Installation Details - Configuration - View Error Log - Text sections are especially helpful. For example, some info shows where all Vitis components are installed and which Vitis driver versions are used.Why is this useful?
Why is this useful?
If you’re having an issue, talking to serial ports, for example, you can ID the software component that may be at fault and debug it. This info can also identify changes between Vitis IDE releases, which may help debug a problem.

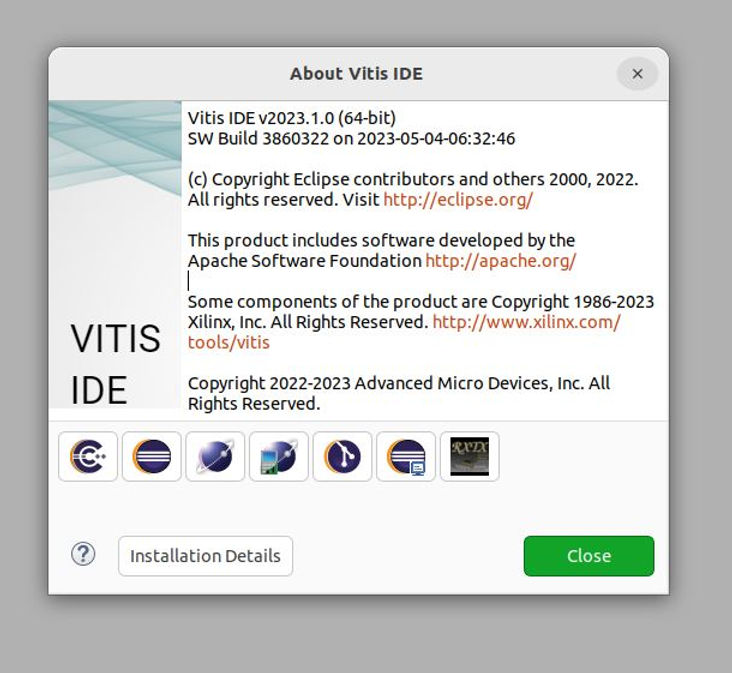

“About Vitis IDE”
Text:
Vitis IDE v2023.1.0 (64-bit)
SW Build 3860322 on 2023-05-04-06:32:46
(c) Copyright Eclipse contributors and others 2000, 2022. All rights reserved. Visit http://eclipse.org/
This product includes software developed by the
Some components of the product are Copyright 1986-2023 Xilinx, Inc. All Rights Reserved. http://www.xilinx.com/tools/vitis
Copyright 2022-2023 Advanced Micro Devices, Inc. All Rights Reserved.

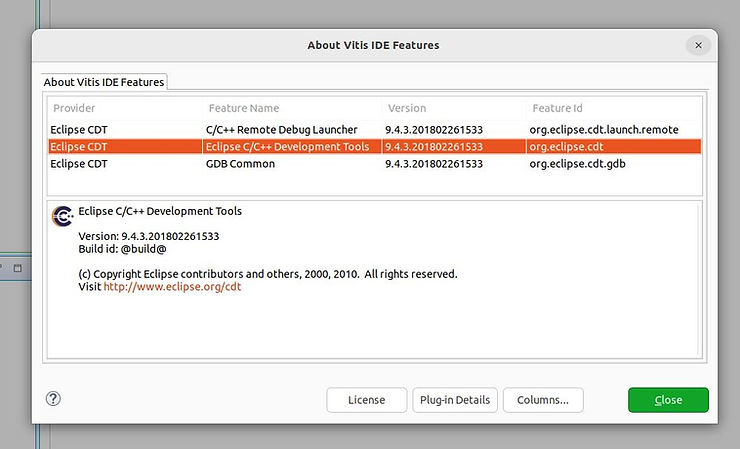

Eclipse CDT
Text:
Eclipse C/C++ Development Tools
Version: 9.4.3.201802261533
Build id: @build@
(c) Copyright Eclipse contributors and others, 2000, 2010. All rights reserved.
Visit http://www.eclipse.org/cdt

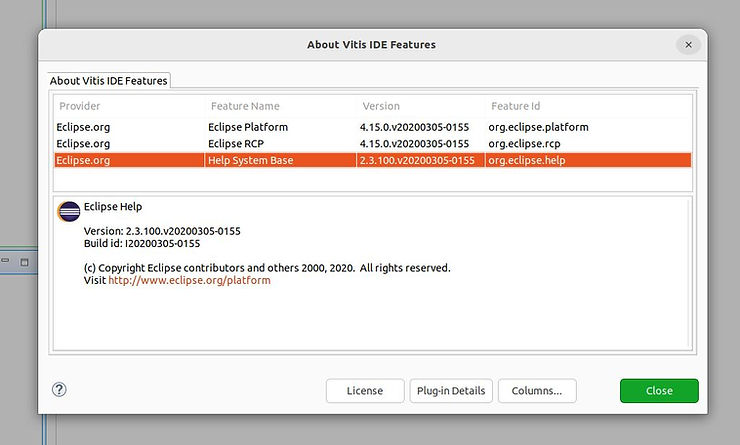

Eclipse.org
Text:
Eclipse Help
Version: 2.3.100.v20200305-0155
Build id: I20200305-0155
(c) Copyright Eclipse contributors and others 2000, 2020. All rights reserved.
Visit http://www.eclipse.org/platform
Eclipse Modeling Project
Text:
EMF Common
Version: 2.18.0.v20191225-1014
Build: 202002180048
Commit: 164f7a1d6eedd6cbda8321987c0a2419f1616f72
(c) Copyright Eclipse contributors and others. 2002, 2018. All rights reserved.
EMF is a Java/XML framework for generating tools and other
applications based on simple class models.
Visit http://www.eclipse.org/emf/

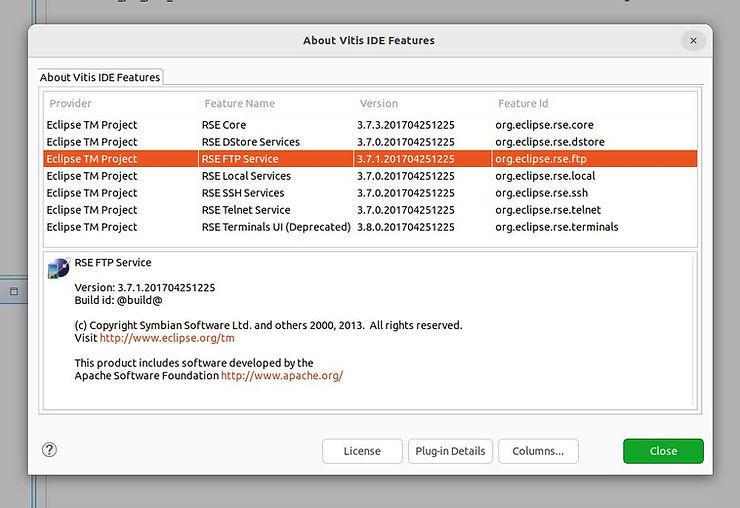

Eclipse TM Project
Text:
RSE FTP Service
Version: 3.7.1.201704251225
Build id: @build@
(c) Copyright Symbian Software Ltd. and others 2000, 2013. All rights reserved.
This product includes software developed by the
Apache Software Foundation http://www.apache.org/
Eclipse EGit
Text:
Eclipse Git is an Eclipse Team provider based on JGit, a pure Java implementation of the Git version control system.
Copyright (c) 2005, 2009 EGit project committers and others. All rights reserved.
Visit http://eclipse.org/egit

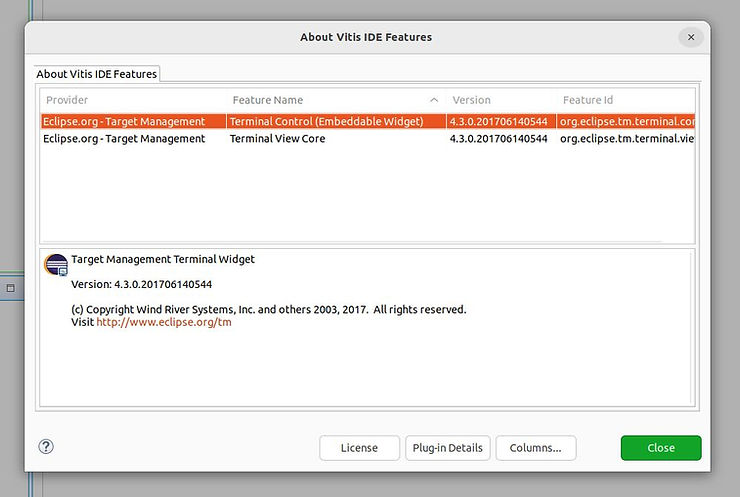

Eclipse.org - Target Management
Text:
Target Management Terminal Widget
Version: 4.3.0.201706140544
(c) Copyright Wind River Systems, Inc. and others 2003, 2017. All rights reserved.
Visit http://www.eclipse.org/tm
RXTX.org
Text:
RXTX - a native interface to serial ports in java.
Version: 2.1.7.4_v20071016-7B57e7UAXMAAqGAGf
(c) Copyright 1997-2007 by Trent Jarvi [email protected] and others.
All rights reserved.
Visit http://www.rxtx.org

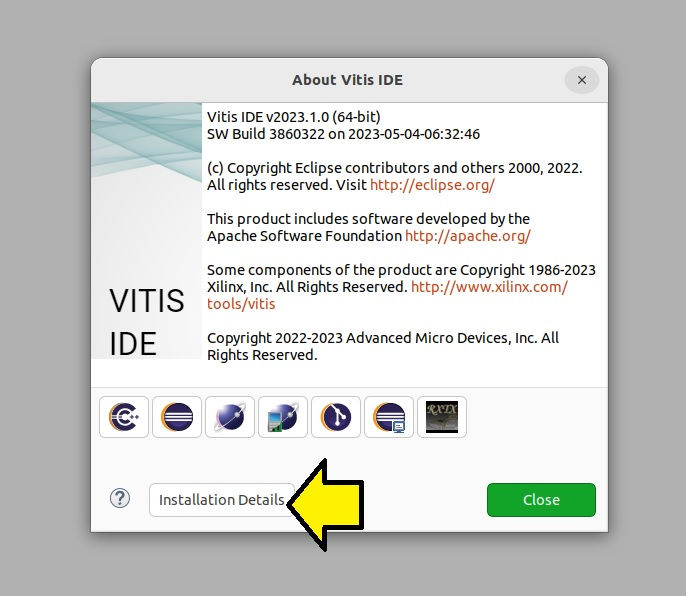

Installation Details
The error log and configuration detail screens available after clicking Installation Details are very helpful to ID specific install paths and driver versions.

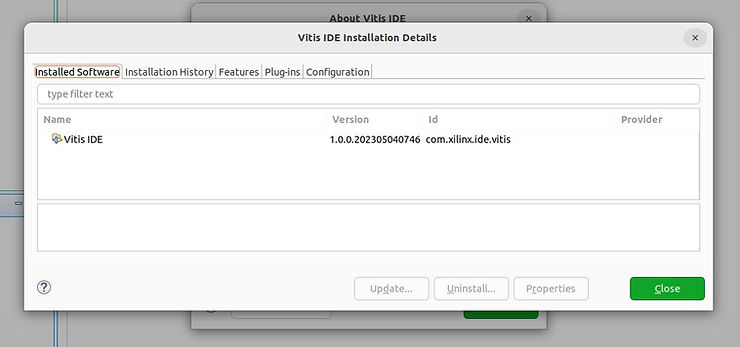

Installation Details - Installed Software

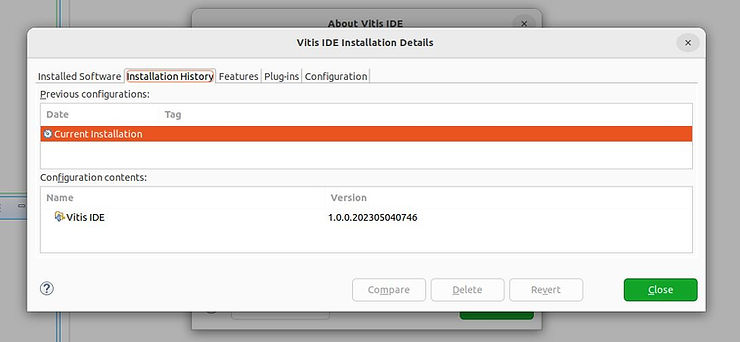

Installation Details - Installation History

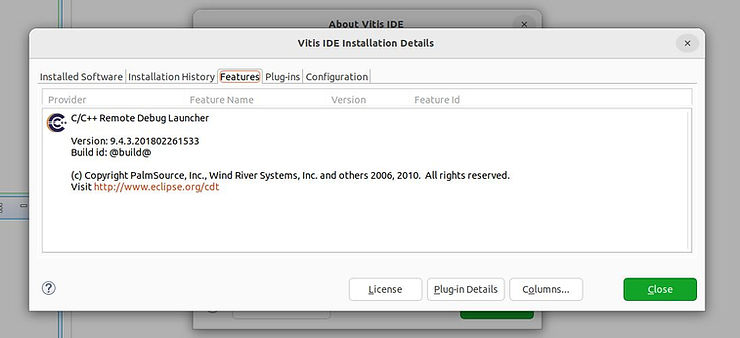

Installation Details - Features

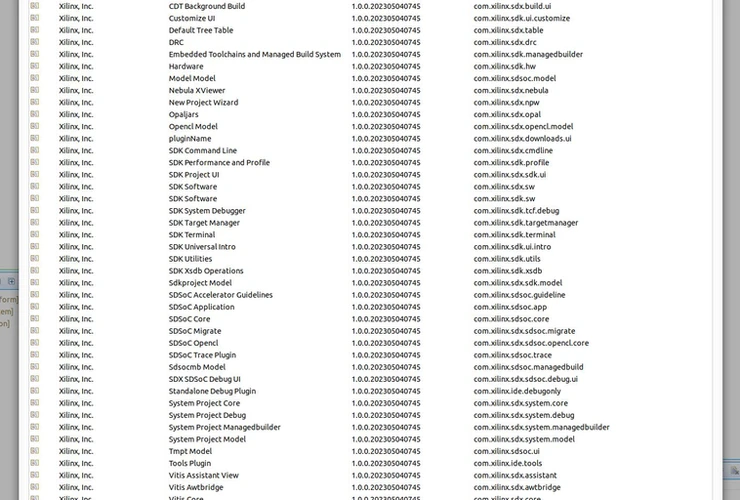

Installation Details - Plug-ins
Installation Details - Configuration
Installation Details - Configuration - Text
https://docs.google.com/document/d/126rpGN9b8A945pt2A8kET7H9Me4bvK1TjKB9yla2fMY/edit?usp=sharing
Installation Details - Configuration - View Error Log
Installation Details - Configuration - View Error Log - Text
https://docs.google.com/document/d/1sB2dHT7IlPtQi2fdhkBZ2_96b7eYJyZ4NxQ7r6Ed2C0/edit?usp=sharing
