“Bridged, NAT, Host-only or Custom” VMWare

vmware_workstation_icon_1

This post brings together the diagrams and links from the Bridged, NAT, Host-only or Custom network diagrams found on various vmware.com pages.

Bridged Networking

https://www.vmware.com/support/ws4/doc/network_bridged_ws.html

bridged_networking_flowchart_2

“Bridged networking connects a virtual machine to a network using the host computer’s Ethernet adapter.”

“If you use bridged networking, your virtual machine needs to have its own identity on the network.”

“If you use bridged networking, the virtual machine is a full participant in the network.”

Related:

  • Adding and Modifying Virtual Network Adapters at [link]

  • Configuring Bridged Networking Options on a Windows Host at [link]

  • Enabling, Disabling, Adding and Removing Host Virtual Adapters at [link]

Network Address Translation (NAT)

https://www.vmware.com/support/ws5/doc/ws_net_configurations_nat.html

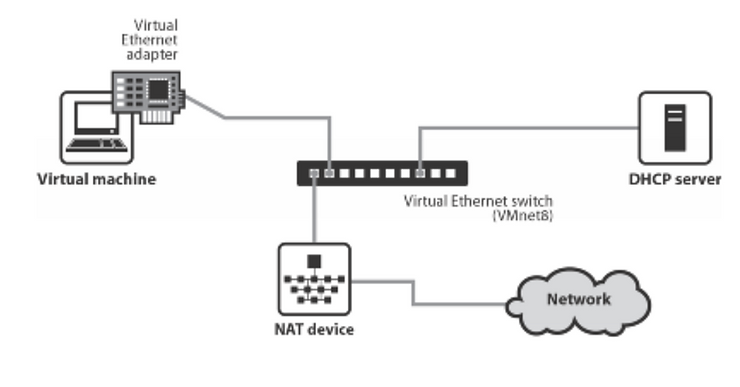

network_address_translation_flowchart_3

“If you want to connect to the Internet or other TCP/IP network using the host computer’s dial-up networking or broadband connection and you are not able to give your virtual machine an IP address on the external network, NAT is often the easiest way to give your virtual machine access to that network.”

Host-Only Networking

https://www.vmware.com/support/ws3/doc/ws32_network6.html

host_only_networking_4

“Host-only networking creates a network that is completely contained within the host computer.”

Customer Networking Configurations

https://www.vmware.com/support/ws5/doc/ws_net_configurations_custom.html

customer_networking_config_flowchart_5

“The virtual networking components provided by VMware Workstation make it possible for you to create sophisticated virtual networks. The virtual networks can be connected to one or more external networks, or they may run entirely on the host computer.”

Reference

From https://en.wikipedia.org: VMWare Workstation Player Icon @ [link]
