Connecting Vivado to Digilent’s USB-to-JTAG through VirtualBox

xilinx_logo_1

This post shows how to configure VirtualBox to allow Vivado and other Xilinx tools running on Ubuntu 16.04.3 in the VirtualBox managed virtual machine to communicate with Digilent’s USB-to-JTAG and the USB UART.

Prerequisites

This post assumes you’ve installed Vivado. See [link] for instructions.
You’ll need 2 open USB ports: one for the JTAG-to-USB and one for the USB UART

Versions Used

Ubuntu 16.04.3
Vivado 2018.2
VirtualBox 5.2.12
Windows 7 SP 1
ZC706 REV 1.1

Configure VirtualBox

1. Save your work and close all programs on your Ubuntu 16.04.3 desktop

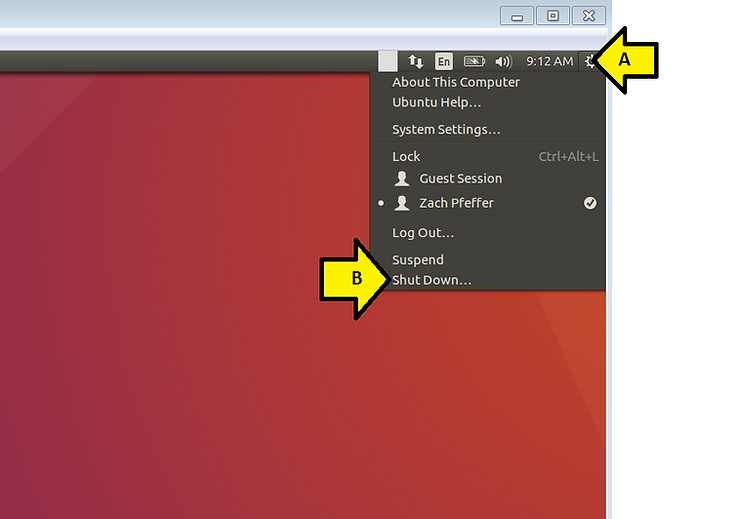

2. Shut down Ubuntu by (A) clicking the gear and (B) selecting Shut Down…

shut_down_ubuntu_2

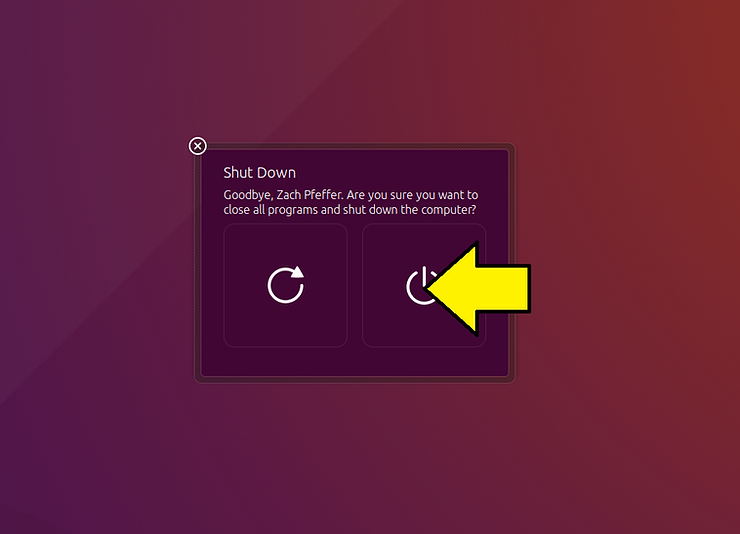

…then selecting the shutdown button:

click_shutdown_button_3

Note: you must shut down Ubuntu in this way for this to work.

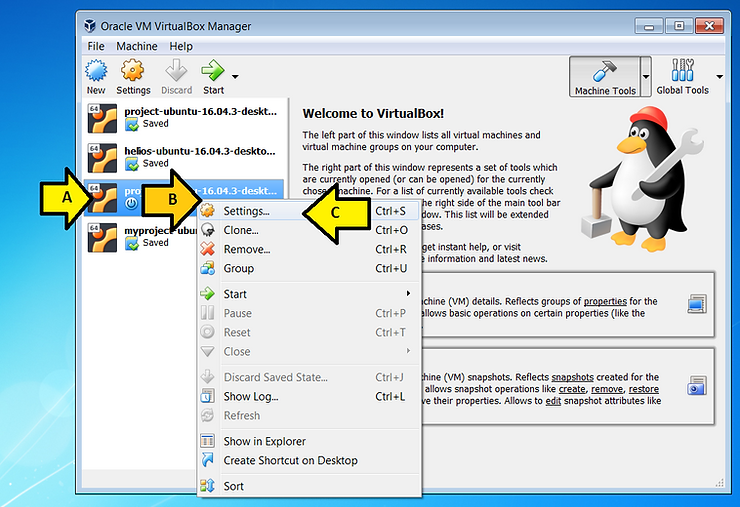

3. Open settings by (A) selecting the virtual machine, (B) right-clicking and (C) clicking Settings…

virtual_machine_settings_4

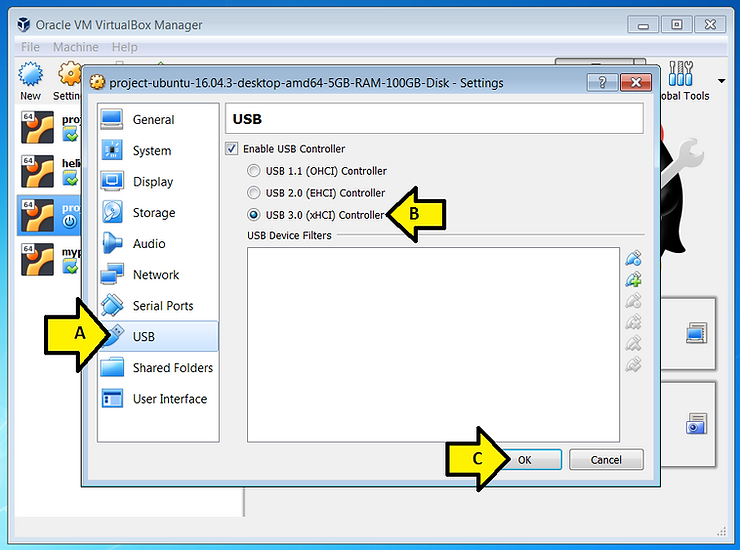

4. (A) Select USB, (B) select USB 3.0 (xHCI) Controller and (C) select OK

select_usb_3_0_controller_5

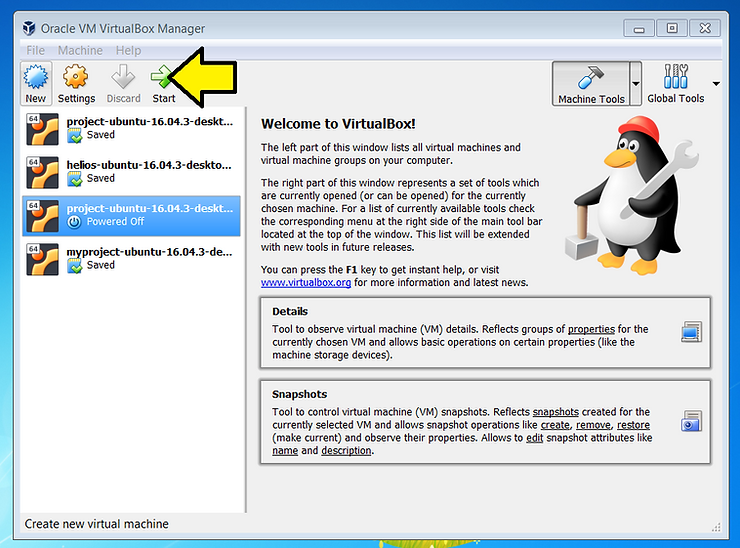

5. Start the virtual machine that has the USB 3.0 (xHCI) Controller selected

start_virtual_machine_with_correct_controller_6

Install the Drivers

1. Type cd /opt/Xilinx/Vivado/2018.2

2. Type cd ./data/xicom/cable_drivers/lin64/install_script/install_drivers

3. Type sudo ./install_drivers

You should see:

INFO: Installing cable drivers.
INFO: Script name = ./install_drivers
INFO: HostName = z
INFO: Current working dir = /opt/Xilinx/Vivado/2018.2/data/xicom/cable_drivers/lin64/install_script/install_drivers
INFO: Kernel version = 4.10.0-28-generic.
INFO: Arch = x86_64.
Successfully installed Digilent Cable Drivers
--File /etc/udev/rules.d/52-xilinx-ftdi-usb.rules does not exist.
--File version of /etc/udev/rules.d/52-xilinx-ftdi-usb.rules = 0000.
--Updating rules file.
--File /etc/udev/rules.d/52-xilinx-pcusb.rules does not exist.
--File version of /etc/udev/rules.d/52-xilinx-pcusb.rules = 0000.
--Updating rules file.

INFO: Digilent Return code = 0
INFO: Xilinx Return code = 0
INFO: Xilinx FTDI Return code = 0
INFO: Return code = 0
INFO: Driver installation successful.
CRITICAL WARNING: Cable(s) on the system must be unplugged then plugged back in order for the driver scripts to update the cables.

Note the line: INFO: Driver installation successful.

Connect to the Hardware

1. Ensure the board’s power is off

2. Plug the USB B micro end of a USB cable into the JTAG-to-USB port and the USB A end into your computer

3. Plug the USB B micro (or mini) end of a USB cable into the USB UART port and the USB A end into your computer

4. Power on the board

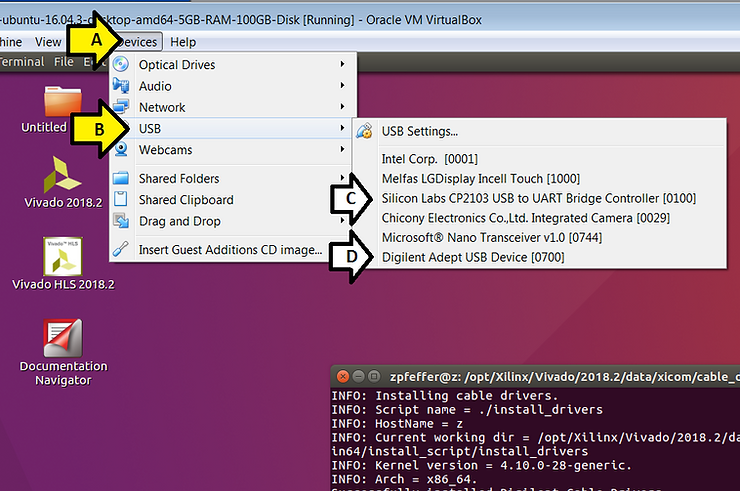

5. In the VirtualBox management window (A) click Devices then (B) click USB.

You should see (C) Silicon Labs CP2103 USB to UART Bridge Controller [0100] and (D) Digilent Adept USB Device

usb_devices_7

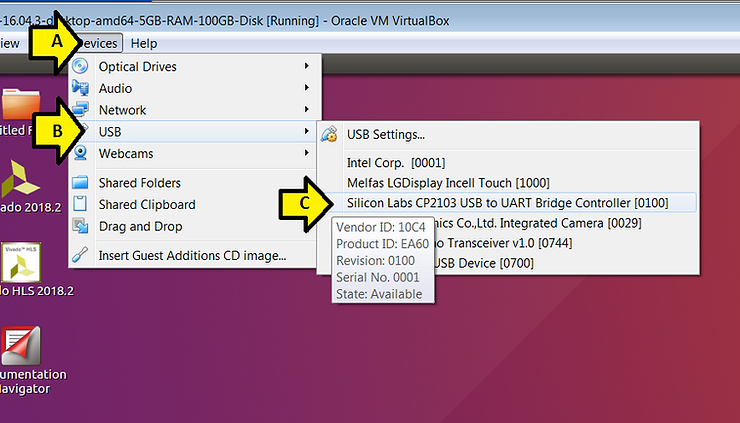

6. In the VirtualBox management window:

A) Click Devices then

B) Click USB, then

C) Select Silicon Labs CP2103 USB to UART Bridge Controller [0100] and

select_silicone_labs_bridge_controller_8

Note: hover over the selection to bring up the pop up

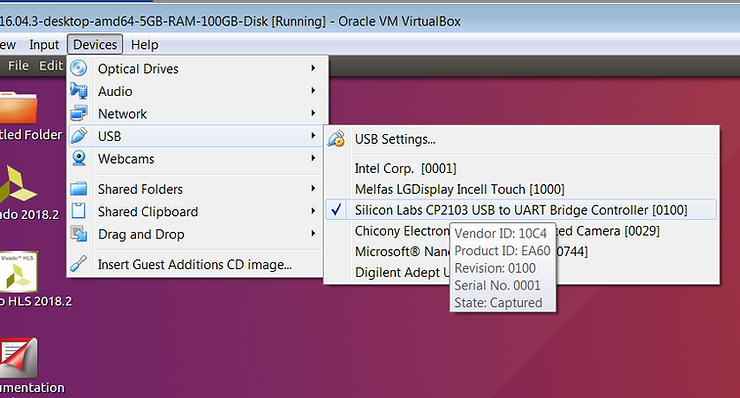

You should see:

silicone_labs_bridge_controller_checked_9

If you don’t, try selecting it again.

Open a terminal and type dmesg. You should see the following at the end of the dmesg:

[ 2341.323630] usb 1-2: new full-speed USB device number 3 using xhci_hcd
[ 2341.710407] usb 1-2: New USB device found, idVendor=10c4, idProduct=ea60
[ 2341.710409] usb 1-2: New USB device strings: Mfr=1, Product=2, SerialNumber=3
[ 2341.710410] usb 1-2: Product: CP2103 USB to UART Bridge Controller
[ 2341.710410] usb 1-2: Manufacturer: Silicon Labs
[ 2341.710411] usb 1-2: SerialNumber: 0001
[ 2342.788513] usbcore: registered new interface driver usbserial
[ 2342.788808] usbcore: registered new interface driver usbserial_generic
[ 2342.788825] usbserial: USB Serial support registered for generic
[ 2342.791950] usbcore: registered new interface driver cp210x
[ 2342.792124] usbserial: USB Serial support registered for cp210x
[ 2342.792146] cp210x 1-2:1.0: cp210x converter detected
[ 2342.798925] usb 1-2: cp210x converter now attached to ttyUSB0

Note ttyUSB0

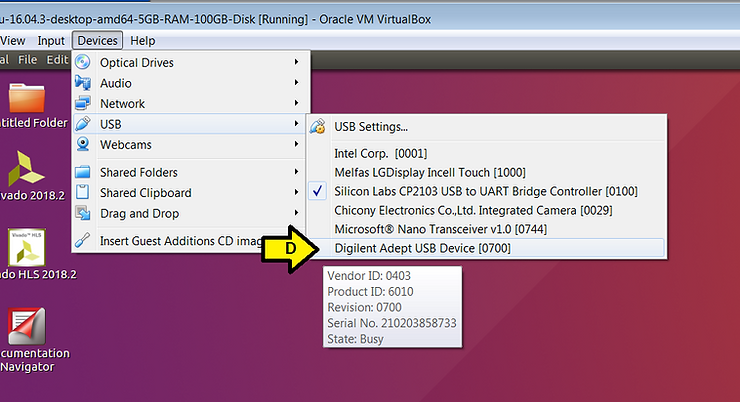

D) Select Digilent Adept USB Device

select_diligant_adept_usb_device_10

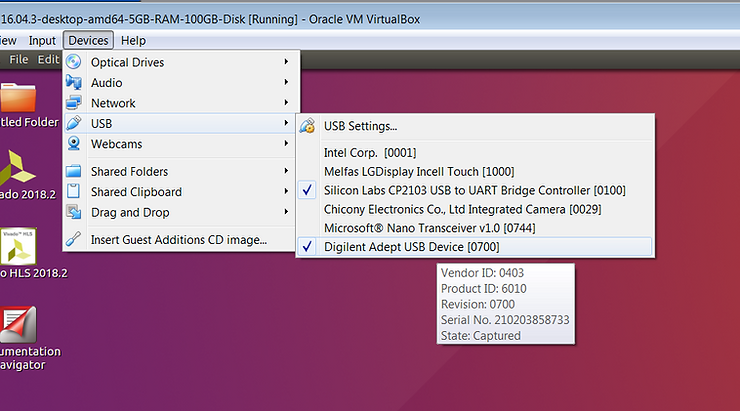

You should see:

diligant_adept_usb_device_selected_11

Open a terminal and type dmesg. You should see the following at the end of the dmesg:

[ 2588.236466] usb 1-3: New USB device found, idVendor=0403, idProduct=6010
[ 2588.236467] usb 1-3: New USB device strings: Mfr=1, Product=2, SerialNumber=3
[ 2588.236468] usb 1-3: Product: Digilent Adept USB Device
[ 2588.236469] usb 1-3: Manufacturer: Digilent
[ 2588.236470] usb 1-3: SerialNumber: 210203858733
[ 2588.314345] usbcore: registered new interface driver ftdi_sio
[ 2588.314590] usbserial: USB Serial support registered for FTDI USB Serial Device
[ 2588.314619] ftdi_sio 1-3:1.0: FTDI USB Serial Device converter detected
[ 2588.314708] usb 1-3: Detected FT2232H
[ 2588.316622] usb 1-3: FTDI USB Serial Device converter now attached to ttyUSB1
[ 2588.316642] ftdi_sio 1-3:1.1: FTDI USB Serial Device converter detected
[ 2588.316701] usb 1-3: Detected FT2232H
[ 2588.319494] usb 1-3: FTDI USB Serial Device converter now attached to ttyUSB2

Configure VirtualBox USB Auto Connect

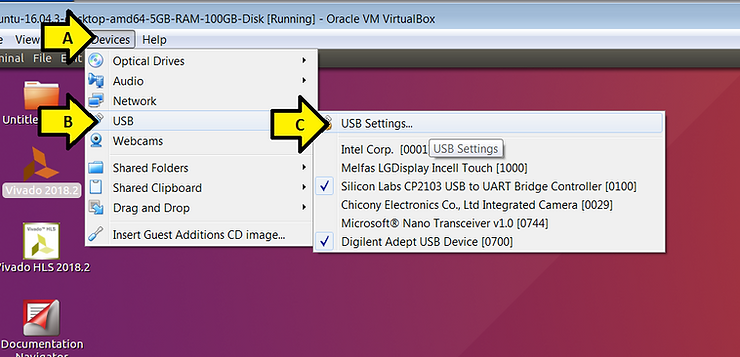

1. (A) Click Devices, (B) click USB and (C) click USB Settings…

select_usb_settings_12

2. Click the USB+ icon

click_usb_plus_icon_13

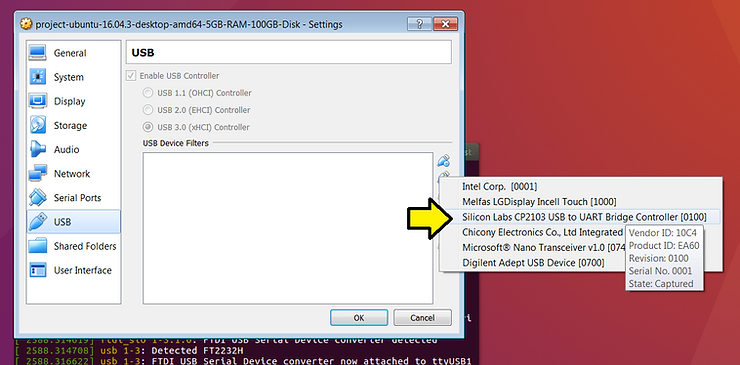

3. Click Silicon Labs CP2103 USB to UART Bridge Controller [0100]

click_silicone_labs_device_14

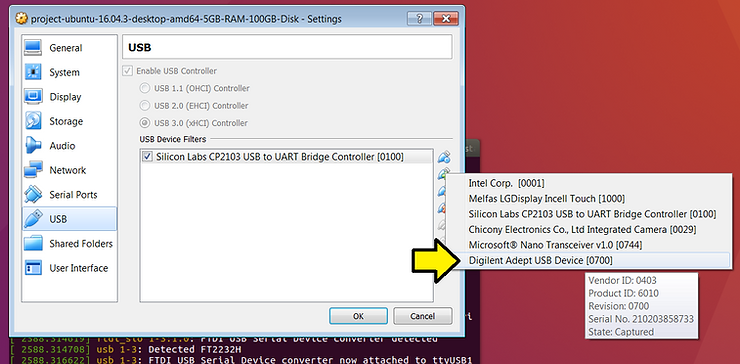

4. Click Digilent Adept USB Device [0700]

add_diligant_adept_device_to_filtered_15

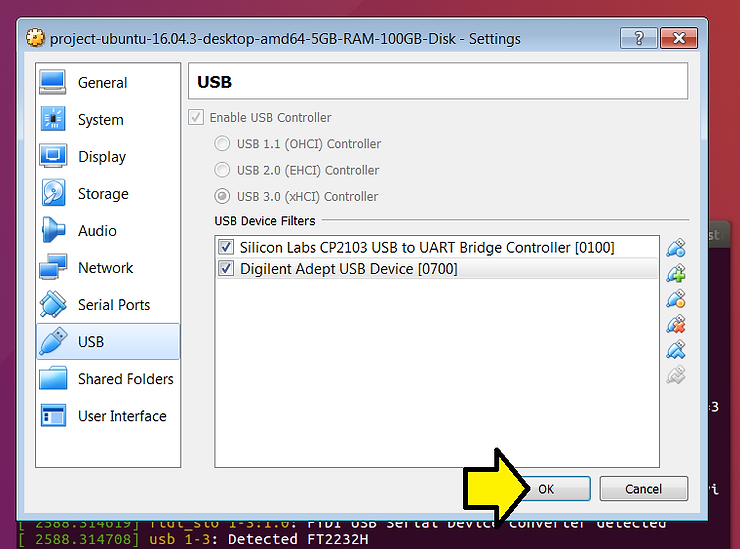

5. If you see the following, click OK

correct_devices_in_device_filters_16

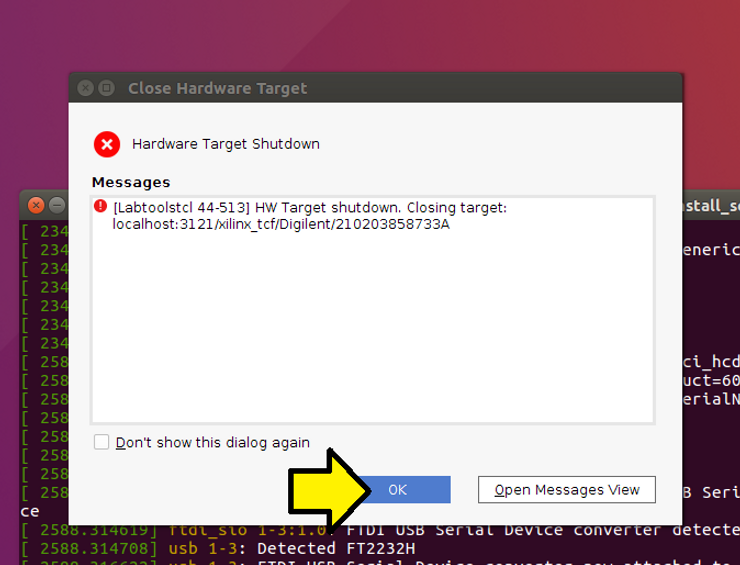

6. Test by unplugging the USB-to-JTAG cable and seeing the USB device come back:

A) Unplug

B) Click OK

close_hardware_target_shutdown_17

Test JTAG

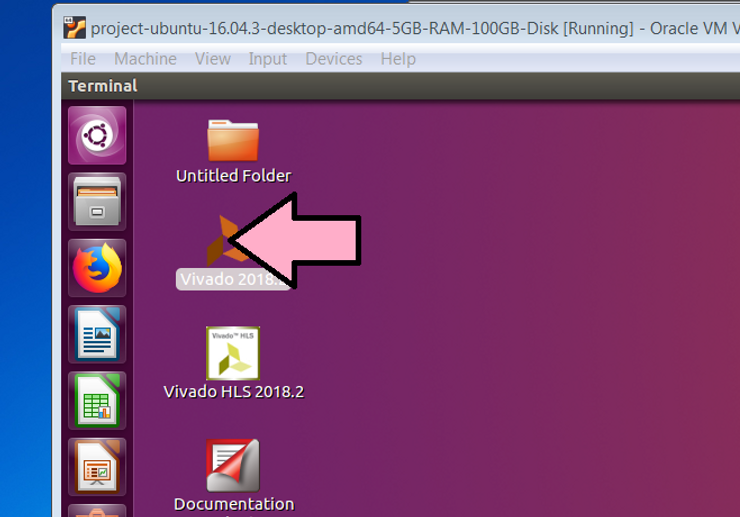

1. Run Vivado

run_vivado_18

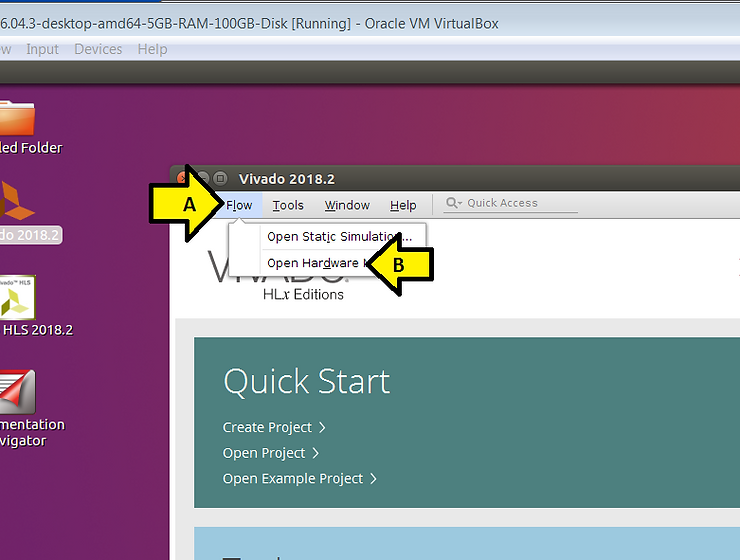

2. (A) Click Flow then (B) click Open Hardware Manager

open_hardware_manager_19

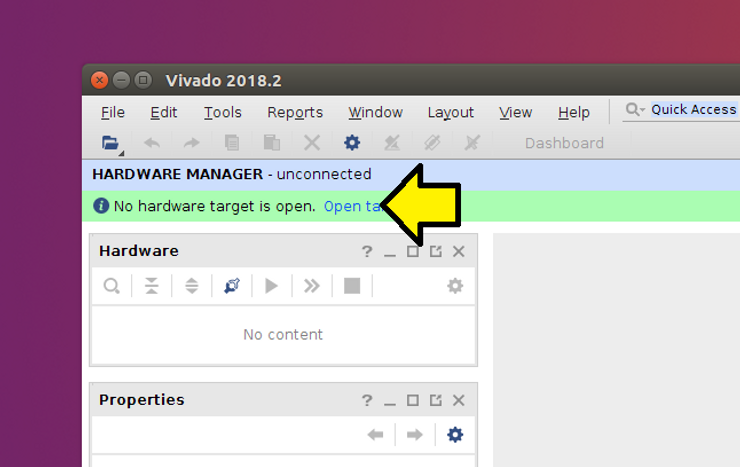

3. Click Open target

open_target_20

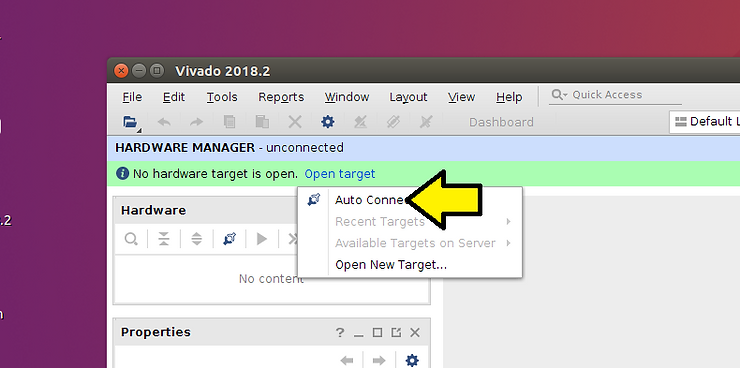

4. Click Auto Connect

auto_connect_21

You should see:

vivado_final_setup_22

Text of TCL Console

start_gui
open_hw
INFO: [IP_Flow 19-234] Refreshing IP repositories
INFO: [IP_Flow 19-1704] No user IP repositories specified
INFO: [IP_Flow 19-2313] Loaded Vivado IP repository '/opt/Xilinx/Vivado/2018.2/data/ip'.
open_hw: Time (s): cpu = 00:00:08 ; elapsed = 00:00:11 . Memory (MB): peak = 6042.531 ; gain = 158.926 ; free physical = 2011 ; free virtual = 8560
connect_hw_server
INFO: [Labtools 27-2285] Connecting to hw_server url TCP:localhost:3121
INFO: [Labtools 27-2222] Launching hw_server...
INFO: [Labtools 27-2221] Launch Output:

****** Xilinx hw_server v2018.2
  **** Build date : Jun 14 2018-20:18:37
    ** Copyright 1986-2018 Xilinx, Inc. All Rights Reserved.


open_hw_target
INFO: [Labtoolstcl 44-466] Opening hw_target localhost:3121/xilinx_tcf/Digilent/210203858733A
open_hw_target: Time (s): cpu = 00:00:02 ; elapsed = 00:00:06 . Memory (MB): peak = 6592.738 ; gain = 544.031 ; free physical = 1404 ; free virtual = 7967
current_hw_device [get_hw_devices xc7z020_1]
refresh_hw_device -update_hw_probes false [lindex [get_hw_devices xc7z020_1] 0]
INFO: [Labtools 27-1434] Device xc7z020 (JTAG device index = 1) is programmed with a design that has no supported debug core(s) in it.
WARNING: [Labtools 27-3361] The debug hub core was not detected.
Resolution:
1. Make sure the clock connected to the debug hub (dbg_hub) core is a free running clock and is active.
2. Make sure the BSCAN_SWITCH_USER_MASK device property in Vivado Hardware Manager reflects the user scan chain setting in the design and refresh the device.  To determine the user scan chain setting in the design, open the implemented design and use 'get_property C_USER_SCAN_CHAIN [get_debug_cores dbg_hub]'.

Test Serial

Note: See [link] for setting up and running minicom

Reboot Ubuntu

Once everything has been shown to work:

A) Power off the board,

B) Reboot Ubuntu

C) Power on the board

D) Verify dmesg messages

E) Run Vivado to set up the hardware connection

Uninstall the Drivers

If you need to you can uninstall the drivers using the following stepspwd

1. Unplug the serial and JTAG-to-USB cables

2. Type sudo rm -f /etc/udev/rules.d/52-xilinx-digilent-usb.rules

3. Type sudo rm -f /etc/udev/rules.d/52-xilinx-ftdi-usb.rules

4. Type sudo rm -f /etc/udev/rules.d/52-xilinx-pcusb.rules
