Download and Install Xilinx’s 2017.4 PetaLinux Tools

tux_logo_1

This post shows how to download and install Xilinx’s 2017.4 PetaLinux Tools on Ubuntu 16.04.1 (available here, if you need help downloading and installing it click here). I wrote it because there is no document named Installing PetaLinux Tools 2017.4 posted at Xilinx.com (the instructions are in the UG1144 (v2017.4) PetaLinux Tools Reference Guide).

Note: the whole process took me about 3 hours on a 40 Gbps download link. Most of the time is spent waiting for 7.8 GB’s to download.

Prerequisites

1. Get a Xilinx Account (update: you may be able to directly download PetaLinux Tools 2017.4 here).

Before starting, ensure you have a xilinx.com account. If you need one create it here.

2. Ensure you have the following packages by running:

sudo apt-get update
sudo apt-get install python3 dos2unix iproute2 gawk xvfb git make net-tools libncurses5-dev tftpd lib32z1 libssl-dev flex bison libselinux1 gnupg wget diffstat chrpath socat xterm autoconf libtool tar unzip texinfo zlib1g-dev gcc-multilib build-essential libsdl1.2-dev libglib2.0-dev libsdl-dev build-essential gcc-multilib glib2.0 automake screen pax gzip libtool-bin zlib1g:i386

PetaLinux Tools 2017.4 requires the following components:

Tool / Library	Ubuntu 16.04.1	Command to Check Version	Command to Get	Version pf Command or Package Tested in this Post
python	python: 3.4.0	python3 –version	sudo apt-get install python3	Python 3.5.2
dos2unix	tofrodos_1.7.13+ds-2.debia n.tar.xz	dos2unix –version	sudo apt-get install dos2unix	dos2unix 6.0.4 (2013-12-30)
ip	iproute2 4.3.0-lubuntu3	ip -V	sudo apt-get install iproute2	ip utility, iproute2-ss151103
gawk	gawk (1:4.1.3+dfsg-0.1)	gawk –version	sudo apt-get install gawk	GNU Awk 4.1.3, API: 1.1 (GNU MPFR 3.1.4, GNU MP 6.1.0)
xvfb	xvfb (2:1.18.3-lubuntu2.3)	Type: man Xvfb and scroll to bottom of page	sudo apt-get install xvfb	xorg-server 1.18.4
git	git 1.7.1 or above	git –version	sudo apt-get install git	git version 2.7.4
make	make 3.81	make –version	sudo apt-get install make	GNU Make 3.81
netstat	net-tools	net-tools –version	sudo apt-get install net-tools	net-tools 1.60, netstat 1.42 (2001-04-15)
ncurses devel	libncurses5 -dev	dpkg -s libncurses5-dev \| grep Version	sudo apt-get install libncurses5-dev	6.0+20160213-1ubuntu1
tftp server	tftpd	dpkg -s tftpd \| grep Version	sudo apt-get install tftpd	0.17-18ubuntu2
zlib devel (also, install 32-bit of this version)	i386/zliblg-dev/1:1.2.8.dfsg -2ubuntu4-dev	dpkg -s lib32z1 \| grep Version	sudo apt-get install lib32z1	1:1.2.8.dfsg-2ubuntu4.1
openssl devel	libssl-dev	dpkg -s libssl-dev \| grep Version	sudo apt-get install libssl-dev	1.0.2g-1ubuntu4.10
flex	flex	flex –version	sudo apt-get install flex	2.6.0-11
bison	bison	bison –version	sudo apt-get install bison	bison (GNU Bison) 3.0.4
libselinux	libselinuxl	dpkg -s libselinux1 \| grep Version	sudo apt-get install libselinux1	2.4-3build2
gnupg	gnupg	dpkg -s gnupg \| grep Version	sudo apt-get install gnupg	1.4.20-1ubuntu3.1
wget	wget	wget –version	sudo apt-get install wget	GNU Wget 1.17.1 built on linux-gnu.
diffstat	diffstat	diffstat –version	sudo apt-get install diffstat	diffstat version 1.61
chrpath	chrpath	chrpath –version	sudo apt-get install chrpath	chrpath version 0.16
socat	socat	socat -V	sudo apt-get install socat	socat version 1.7.3.1 on Feb 2 2016 21:25:06
xterm	xterm	xterm -version	sudo apt-get install xterm	XTerm(322)
autoconf	autoconf	autoconf –version	sudo apt-get install autoconf	autoconf (GNU Autoconf) 2.69
libtool	libtool	dpkg -s libtool \| grep Version	sudo apt-get install libtool	2.4.6-0.1
tar	tar:1.24	tar –version	sudo apt-get install tar	tar (GNU tar) 1.28
unzip	unzip	unzip -v	sudo apt-get install unzip	UnZip 6.00 of 20 April 2009, by Debian. Original by Info-ZIP.
texinfo	texinfo	dpkg -s texinfo \| grep Version	sudo apt-get install texinfo	6.1.0.dfsg.1-5
zliblg-dev	zlib1g-dev	dpkg -s zlib1g-dev \| grep Version	sudo apt-get install zlib1g-dev	1:1.2.8.dfsg-2ubuntu4.1
gcc-multilib	gcc-multilib	dpkg -s gcc-multilib \| grep Version	sudo apt-get install gcc-multilib	4:5.3.1-1ubuntu1
build-essential	build-essential	dpkg -s build-essential \| grep Version	sudo apt-get install build-essential	12.1ubuntu2
libsd11.2-dev	libsd11.2-dev	dpkg -s libsdl1.2-dev \| grep Version	sudo apt-get install libsdl1.2-dev	1.2.15+dfsg1-3
libglib2.0-dev	libglib2.0-dev	dpkg -s libglib2.0-dev \| grep Version	sudo apt-get install libglib2.0-dev	2.48.2-0ubuntu1
SDL-devel		dpkg -s libsdl1.2-dev \| grep Version	sudo apt-get install libsdl-dev	1.2.15+dfsg1-3
glibc-devel	Actually in build-essential	dpkg -s build-essential \| grep Version	sudo apt-get build-essential	12.1ubuntu2
32-bit glibc		dpkg -s gcc-multilib \| grep Version	sudo apt-get install gcc-multilib	4:5.3.1-1ubuntu1
glib2-devel	Actually glib2.0	Just run sudo-apt-get	sudo apt-get install glib2.0	2.48.2-0ubuntu1
automake		automake –version \| grep Version	sudo apt-get install automake	automake (GNU automake) 1.15
screen	screen	screen –version \| grep Version	sudo apt-get install screen	Screen version 4.03.01 (GNU) 28-Jun-15
pax	pax	dpkg -s pax \| grep Version	sudo apt-get install pax	1:20151013-1
gzip	gzip	gzip –version	sudo apt-get install gzip	gzip 1.6

A Google Sheet version of this table is at link.

Additional:

You also need to install libtool-bin and zlib1g:i386

I used:

sudo apt-get install libtool-bin
dpkg -s libtool-bin

Version: 2.4.6-0.1

… and:

I used:

sudo apt-get install zlib1g:i386
dpkg -s zlib1g:i386

Version: 1:1.2.8.dfsg-2ubuntu4.1

3. Install Make 3.81

Note: This was run after getting all of the packages listed above.

I’m fairly sure PetaLinux Tools relies on Make 3.81. To install a local copy do the following:

# Put a custom bin folder in place and update the path to check it first
LOCALTOOLS=$(pwd)/tools
echo $LOCALTOOLS
mkdir -p $LOCALTOOLS
echo export PATH=$LOCALTOOLS/bin:\$PATH > set_petalinux_env.sh
. ./set_petalinux_env.sh
# Test it
mkdir -p $LOCALTOOLS/bin
echo echo Hello > $LOCALTOOLS/bin/test-set_petalinux_env.sh
chmod +x $LOCALTOOLS/bin/test-set_petalinux_env.sh
test-set_petalinux_env.sh

#Get and install make-3.81 locally
CURDIRBEFOREMAKE=$(pwd)
LOCALPACKAGE=$(pwd)/package
echo $LOCALPACKAGE
mkdir -p $LOCALPACKAGE
cd $LOCALPACKAGE
wget https://ftp.gnu.org/gnu/make/make-3.81.tar.gz
tar -xvzf $LOCALPACKAGE/make-3.81.tar.gz
cd make-3.81
./configure --prefix=$LOCALTOOLS
make
sudo make install
cd $CURDIRBEFOREMAKE

#Test make
which make # you should see $LOCALTOOLS/bin/make
make --version # should now show GNU Make 3.81

4. Change your shell to bash with:

chsh -s /bin/bash

5. Before you run any commands in petalinux run:

. ./set_petalinux_env.sh

Download and Install

1. Go to: https://www.xilinx.com/support/download/index.html/content/xilinx/en/downloadNav/embedded-design-tools.html

2. Scroll down and click on PetaLinux 2017.4 Installer or click this link: https://www.xilinx.com/member/forms/download/xef.html?filename=petalinux-v2017.4-final-installer.run&akdm=1

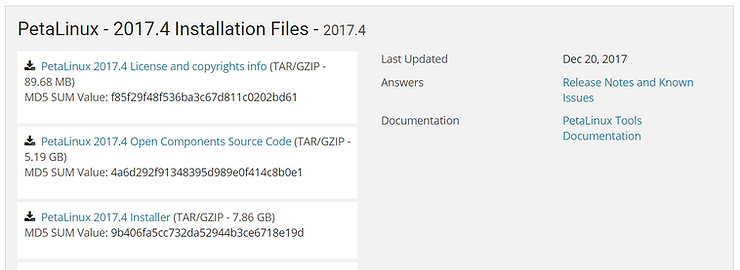

find_petalinux_installer_2

3. After logging in to Xilinx.com, your 7.8 GB download will start.

4. Once the download completes execute:

mv ~/Downloads/petalinux-v2017.4-final-installer.run $LOCALPACKAGE
mkdir -p $LOCALTOOLS/opt/pkg/petalinux
chmod +x $LOCALPACKAGE/petalinux-v2017.4-final-installer.run
$LOCALPACKAGE/petalinux-v2017.4-final-installer.run $LOCALTOOLS/opt/pkg/petalinux

You’ll see this for a few minutes:

INFO: Checking installer checksum...

Then this for a little less time:

INFO: Extracting PetaLinux installer...

5. At the following output:

LICENSE AGREEMENTS

PetaLinux SDK contains software from a number of sources.  Please review
the following licenses and indicate your acceptance of each to continue.

You do not have to accept the licenses, however if you do not then you may
not use PetaLinux SDK.

Use PgUp/PgDn to navigate the license viewer, and press 'q' to close

Press Enter to display the license agreements

Press Enter to scroll through the license agreement. Press down to the end (or just press ‘q’). Press q (if you haven’t). Then press y:

Do you accept Xilinx End User License Agreement? [y/N] > y

6. Again, press Enter to scroll through the license agreement. Press down to the end (or just press ‘q’). Press q (if you haven’t). Then press y:

Do you accept Webtalk Terms and Conditions? [y/N] > y

7. Again, press Enter to scroll through the license agreement. Press down to the end (or just press ‘q’). Press q (if you haven’t). Then press y:

Do you accept Third Party End User License Agreement? [y/N] > y

You should see the following for a few minutes:\

INFO: Checking installation environment requirements...
INFO: Checking free disk space
INFO: Checking installed tools
INFO: Checking installed development libraries
INFO: Checking network and other services
WARNING: No tftp server found - please refer to "PetaLinux SDK Installation Guide" for its impact and solution
INFO: Installing PetaLinux...

Then

INFO: Checking PetaLinux installer integrity...
INFO: Installing PetaLinux SDK to "/home/pfefferz/tools/opt/pkg/petalinux/."

A full listing is available at link (and below).

Success

If you see the following output, the install succeeded:

INFO: PetaLinux SDK has been installed to /home/zach/tools/opt/pkg/petalinux/.

Possible Errors and Mitigation

If you see an error about a missing package, install the package and then rerun the command you used before (listed here again). Keep running through this loop until all packages have been installed.

$LOCALPACKAGE/petalinux-v2017.4-final-installer.run $LOCALTOOLS/opt/pkg/petalinux

8. Make sure /bin/sh points to bash

If you see the following:

$ ls -l /bin/sh
lrwxrwxrwx 1 root root 4 Feb 23 22:18 /bin/sh -> dash

Run the following to ensure /bin/sh points to bash:

$ sudo ln -sf bash /bin/sh

Test it:

$ ls -l /bin/sh
lrwxrwxrwx 1 root root 4 Mar 12 19:38 /bin/sh -> bash

Note: to reverse this type:

sudo ln -sf dash /bin/sh

Bugs I saw

The 2017.4 PetaLinux Tools Reference Guide references 2017.3 everywhere. For instance the installation instructions reference 2017.3:
This guide was tested with the 2017.4 version so everything should be okay.
You need to chmod +x the petalinux-v2017.4-final-installer.run file that was downloaded. This has been added to these instructions.
This note on page 6 is not accurate because the install doesn’t take care of the package and command dependencies:
“Note: The reader of this document is assumed to have basic Linux knowledge, such as how to run Linux commands. The reader should also be aware of OS and Host system features such as OS bit version, Linux Distribution and Security Privileges.”
The PetaLinux tools installer complains about libtool when it has been installed.
You need to install: libtool-bin

Comments and Suggestions to Xilinx

Because PetaLinux Tools requires a very specific set of components it would be good if it set it self up in a chroot.
If the install errors out, and the user has already accepted the licenses, don’t make them accept them again.

Reference

The latest installation instructions I can find are in ug1144-petalinux-tools-reference-guide.pdf.
I used Free Online OCR to convert the Table 1-3: Packages and Linux Workstation Environments to an Excel spreadsheet which I then converted into an HTML table by using the No-Cruft Excel to HTML Table Converter + a little styling help.
Tux from link (found via Google image search).

Note

This install was actually done on a Linux Mint 18.2 Sonya (GNU/Linux 4.13.0-31-generic x86_64) which is based on the Ubuntu 16.04 package base. See link.

Full PetaLinux Install Log

pfefferz@plc2:~$ $LOCALPACKAGE/petalinux-v2017.4-final-installer.run $LOCALTOOLS/opt/pkg/petalinux
INFO: Checking installer checksum...
INFO: Extracting PetaLinux installer...

LICENSE AGREEMENTS

PetaLinux SDK contains software from a number of sources.  Please review
the following licenses and indicate your acceptance of each to continue.

You do not have to accept the licenses, however if you do not then you may
not use PetaLinux SDK.

Use PgUp/PgDn to navigate the license viewer, and press 'q' to close

Press Enter to display the license agreements
Do you accept Xilinx End User License Agreement? [y/N] > y
Do you accept Webtalk Terms and Conditions? [y/N] > y
Do you accept Third Party End User License Agreement? [y/N] > y
INFO: Checking installation environment requirements...
INFO: Checking free disk space
INFO: Checking installed tools
INFO: Checking installed development libraries
INFO: Checking network and other services
WARNING: No tftp server found - please refer to "PetaLinux SDK Installation Guide" for its impact and solution
INFO: Installing PetaLinux...
INFO: Checking PetaLinux installer integrity...
INFO: Installing PetaLinux SDK to "/home/pfefferz/tools/opt/pkg/petalinux/."
INFO: Installing PetaLinux zynqMP Yocto SDK to "/home/pfefferz/tools/opt/pkg/petalinux/./components/yocto/source/aarch64"...
PetaLinux Extensible SDK installer version 2017.4
=================================================
You are about to install the SDK to "/home/pfefferz/tools/opt/pkg/petalinux/components/yocto/source/aarch64". Proceed[Y/n]? Y
Extracting SDK.............................................done
Setting it up...
Extracting buildtools...
done
SDK has been successfully set up and is ready to be used.
Each time you wish to use the SDK in a new shell session, you need to source the environment setup script e.g.
 $ . /home/pfefferz/tools/opt/pkg/petalinux/components/yocto/source/aarch64/environment-setup-aarch64-xilinx-linux
INFO: PetaLinux Yocto SDK for zynqMP has been successfully installed.
INFO: Installing PetaLinux zynq Yocto SDK to "/home/pfefferz/tools/opt/pkg/petalinux/./components/yocto/source/arm"...
PetaLinux Extensible SDK installer version 2017.4
=================================================
You are about to install the SDK to "/home/pfefferz/tools/opt/pkg/petalinux/components/yocto/source/arm". Proceed[Y/n]? Y
Extracting SDK.........................................done
Setting it up...
Extracting buildtools...
done
SDK has been successfully set up and is ready to be used.
Each time you wish to use the SDK in a new shell session, you need to source the environment setup script e.g.
 $ . /home/pfefferz/tools/opt/pkg/petalinux/components/yocto/source/arm/environment-setup-cortexa9hf-neon-xilinx-linux-gnueabi
INFO: PetaLinux Yocto SDK for zynq has been successfully installed.
INFO: Installing PetaLinux microblaze (Full) Yocto SDK to "/home/pfefferz/tools/opt/pkg/petalinux/./components/yocto/source/microblaze_full"...
PetaLinux Extensible SDK installer version 2017.4
=================================================
You are about to install the SDK to "/home/pfefferz/tools/opt/pkg/petalinux/components/yocto/source/microblaze_full". Proceed[Y/n]? Y
Extracting SDK.............................done
Setting it up...
Extracting buildtools...
done
SDK has been successfully set up and is ready to be used.
Each time you wish to use the SDK in a new shell session, you need to source the environment setup script e.g.
 $ . /home/pfefferz/tools/opt/pkg/petalinux/components/yocto/source/microblaze_full/environment-setup-microblazeel-v10.0-bs-cmp-mh-div-xilinx-linux
INFO: Installing PetaLinux microblaze (Lite) Yocto SDK to "/home/pfefferz/tools/opt/pkg/petalinux/./components/yocto/source/microblaze_lite"...
PetaLinux Extensible SDK installer version 2017.4
=================================================
You are about to install the SDK to "/home/pfefferz/tools/opt/pkg/petalinux/components/yocto/source/microblaze_lite". Proceed[Y/n]? Y
Extracting SDK.............................done
Setting it up...
Extracting buildtools...
done
SDK has been successfully set up and is ready to be used.
Each time you wish to use the SDK in a new shell session, you need to source the environment setup script e.g.
 $ . /home/pfefferz/tools/opt/pkg/petalinux/components/yocto/source/microblaze_lite/environment-setup-microblazeel-v10.0-bs-cmp-ml-xilinx-linux
INFO: PetaLinux Yocto SDK for microblaze has been successfully installed.
INFO: PetaLinux SDK has been installed to /home/pfefferz/tools/opt/pkg/petalinux/.
pfefferz@plc2:~$
