Install & Remove Tools for TinyFPGA Bx Programming and Program the board on Windows 7 SP1

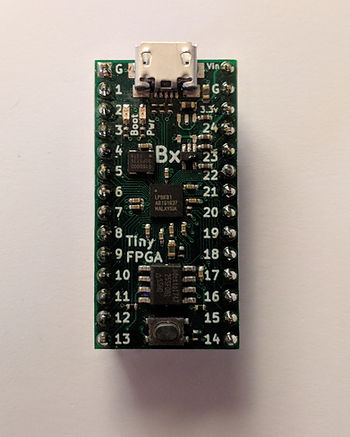

tiny_fpga_bx_1

This post describes how to install and remove the tools needed to program an image onto a TinyFPGA Bx and how to use the tools to program the board, It installs python-3.6.5-amd64-webinstall.exe, apio-0.4.0b5 and tinyprog-1.0.21.

Install

Install Python 3.6.5

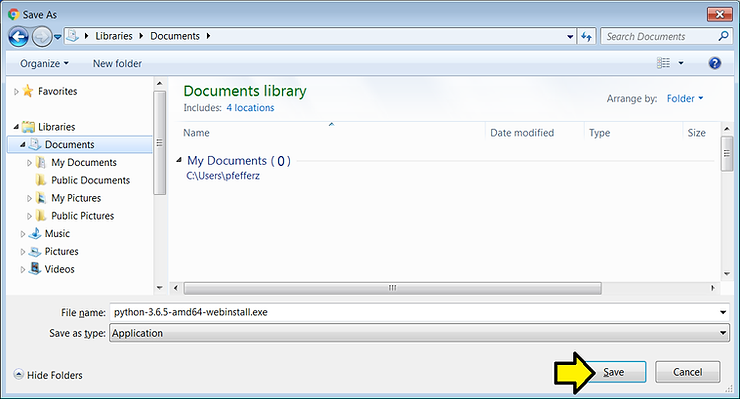

1. Download python-3.6.5-amd64-webinstall.exe at [link] to your Documents folder

download_python_webinstall_2

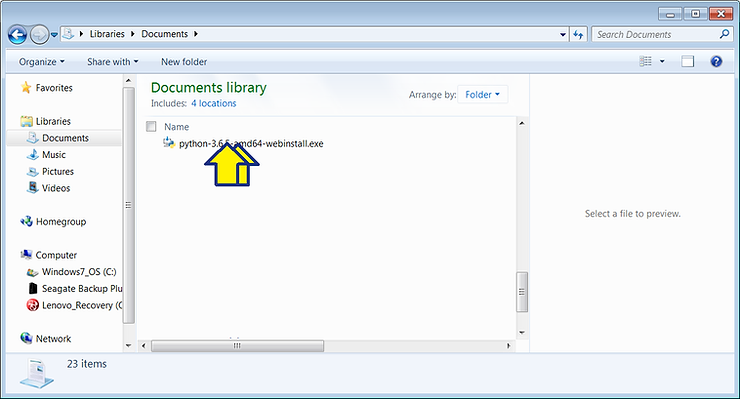

2. Double-click python-3.6.5-amd64-webinstall.exe to run it

run_python_webinstall_3

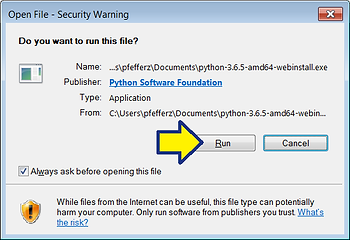

3. Click Run

click_run_4

4. (A) Click the Add Python 3.6 to PATH checkbox and (B) click Install Now

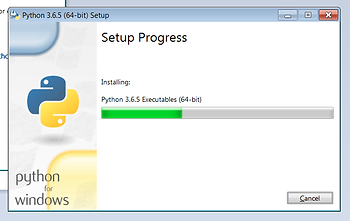

You should see:

setup_progress_5

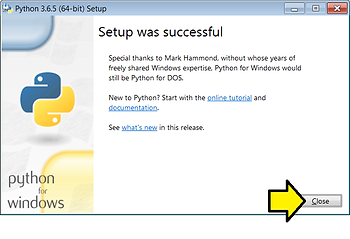

5. Click Close

setup_was_successful_6

Congratulations! You have successfully installed Python 3.6.5

Install apio-0.4.0b5 and tinyprog-1.0.21 (and system scons icestorm iverilog )

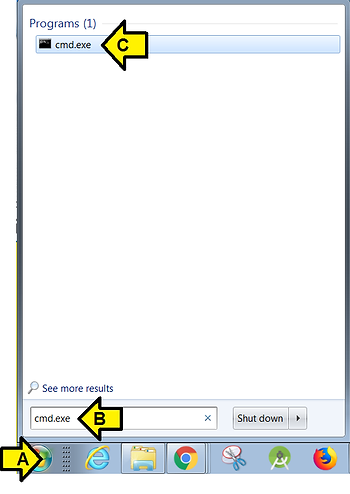

6. (A) Click Windows, (B) type cmd.exe and (C) click cmd.exe

open_command_bar_7

7. Type pip install apio==0.4.0b5 tinyprog==1.0.21 in cmd.exe

You should see something like:

Collecting apio==0.4.0b5
  Using cached https://files.pythonhosted.org/packages/b4/8d/f8ee43824478b2435d6ef1dd71e166de6ecc6ba13de7f3103aff383364a2/apio-0.4.0b5.tar.gz
Collecting tinyprog==1.0.21
  Using cached https://files.pythonhosted.org/packages/2e/10/cfcd7e90514657d2419c842c2aaaa3a96d3d3e90d2e25a6c6ea273a21c87/tinyprog-1.0.21-py3-none-any.whl
Requirement already satisfied: click<7,>=5 in c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages (from apio==0.4.0b5)
Requirement already satisfied: semantic_version<3,>=2.5.0 in c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages (from apio==0.4.0b5)
Requirement already satisfied: requests<3,>=2.4.0 in c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages (from apio==0.4.0b5)
Requirement already satisfied: pyjwt<2,>=1.5.3 in c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages (from apio==0.4.0b5)
Requirement already satisfied: colorama in c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages (from apio==0.4.0b5)
Requirement already satisfied: pyserial<4,>=3 in c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages (from apio==0.4.0b5)
Requirement already satisfied: six in c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages (from tinyprog==1.0.21)
Requirement already satisfied: pyusb in c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages (from tinyprog==1.0.21)
Requirement already satisfied: tqdm<5,>=4.19.5 in c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages (from tinyprog==1.0.21)
Requirement already satisfied: jsonmerge<2,>=1.4.0 in c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages (from tinyprog==1.0.21)
Requirement already satisfied: packaging in c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages (from tinyprog==1.0.21)
Requirement already satisfied: intelhex<3,>=2.2.1 in c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages (from tinyprog==1.0.21)
Requirement already satisfied: chardet<3.1.0,>=3.0.2 in c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages (from requests<3,>=2.4.0->api
o==0.4.0b5)
Requirement already satisfied: idna<2.8,>=2.5 in c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages (from requests<3,>=2.4.0->apio==0.4.
0b5)
Requirement already satisfied: urllib3<1.25,>=1.21.1 in c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages (from requests<3,>=2.4.0->api
o==0.4.0b5)
Requirement already satisfied: certifi>=2017.4.17 in c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages (from requests<3,>=2.4.0->apio==
0.4.0b5)
Requirement already satisfied: jsonschema<3.0.0 in c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages (from jsonmerge<2,>=1.4.0->tinypro
g==1.0.21)
Requirement already satisfied: pyparsing>=2.0.2 in c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages (from packaging->tinyprog==1.0.21)

Installing collected packages: apio, tinyprog
  Running setup.py install for apio ... done
Successfully installed apio-0.4.0b5 tinyprog-1.0.21
You are using pip version 9.0.3, however version 18.1 is available.
You should consider upgrading via the 'python -m pip install --upgrade pip' command.

Install apio system scons icestorm and iverilog

8. Type apio install system in cmd.exe

You should see something like:

Installing system package:
Download tools-system-windows_amd64-1.1.0.tar.gz
Downloading  [####################################]  100%
Unpacking  [####################################]  100%
Package 'system' has been successfully installed!

Install Serial Driver

9. Type apio drivers –serial-enable in cmd.exe

10. Click Yes on the Do you want to allow the following program to make changes to this computer window

allow_higher_program_access_8

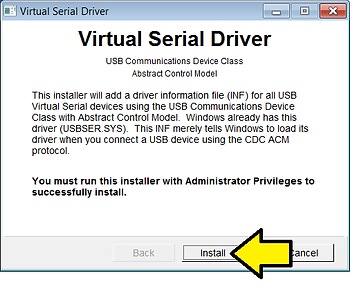

11. Click Install on the Virtual Serial Driver screen

virtual_serial_driver_9

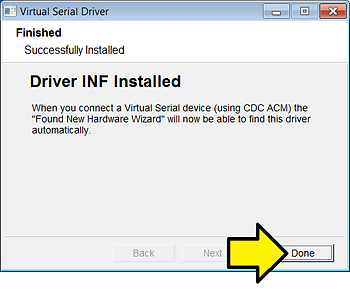

12. Click Done

driver_inf_installed_10

After You should see the following in the cmd.exe window:

Launch drivers configuration tool

   Serial driver installation:
   Usage instructions

      1. Connect the Serial FPGA board
      2. Install the driver
      3. Reconnect the board
      4. Check `apio system --lsserial`

Serial drivers configuration finished

Connect the TinyFPGA Bx

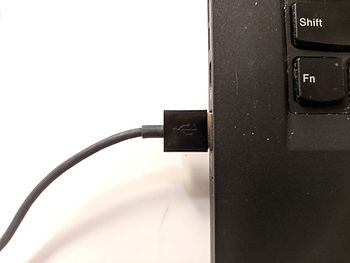

13. Connect the USB cable to the PC

connect_usb_cable_to_computer_11

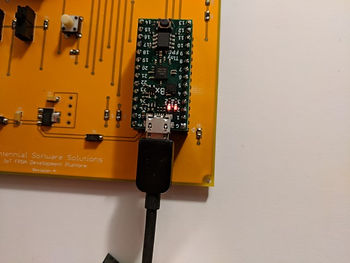

14. Connect the

connect_cable_to_board_12

You should see the Pwr LED lit and the Boot LED blinking:

(video_unavailable)

15. Type apio system –lsserial

You should see something like:

Number of Serial devices found: 1

COM2
Description: Teensy USB Serial (COM2)
Hardware info: USB VID:PID=1D50:6130 SER=5 LOCATION=1-1

Program your bitstream

16. Type tinyprog -p Documents\bitstream.bin

Uninstall All

1. (A) Click Windows, (B) type cmd.exe and (C) click cmd.exe

open_command_bar_7

Uninstall Serial Driver

2. Type apio drivers –serial-disable

You should see:

Launch device manager

   Serial driver uninstallation:
   Usage instructions

      1. Find the FPGA USB Device
      2. Right click
      3. Select "Uninstall"
      4. Accept the dialog

…and

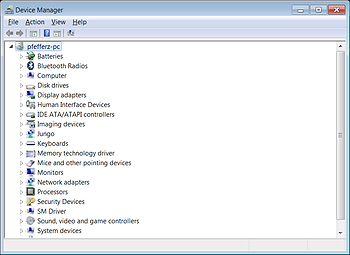

device_manager_13

There is no device present. Close the device manager. (TODO figure out what’s actually happening here)

Unistall apio system

3. Type apio uninstall system

You should see:

Do you want to continue? [y/N]:

4. Type y

You should see:

Do you want to continue? [y/N]: y
Uninstalling system package:
Package 'system' has been successfully uninstalled!

Uninstall apio-0.4.0b5 and tinyprog-1.0.21

5. Type pip uninstall apio tinyprog

You should see:

Uninstalling apio-0.4.0b5:
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio-0.4.0b5-py3.6.egg-info
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\__init__.py
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\__main__.py
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\__pycache__\__init__.cpython-36.pyc
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\__pycache__\__main__.cpython-36.pyc
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\__pycache__\api.cpython-36.pyc
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\__pycache__\profile.cpython-36.pyc
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\__pycache__\resources.cpython-36.pyc
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\__pycache__\util.cpython-36.pyc
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\api.py
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\commands\__init__.py
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\commands\__pycache__\__init__.cpython-36.pyc
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\commands\__pycache__\boards.cpython-36.pyc
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\commands\__pycache__\build.cpython-36.pyc
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\commands\__pycache__\clean.cpython-36.pyc
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\commands\__pycache__\config.cpython-36.pyc
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\commands\__pycache__\drivers.cpython-36.pyc
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\commands\__pycache__\examples.cpython-36.pyc
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\commands\__pycache__\init.cpython-36.pyc
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\commands\__pycache__\install.cpython-36.pyc
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\commands\__pycache__\lint.cpython-36.pyc
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\commands\__pycache__\sim.cpython-36.pyc
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\commands\__pycache__\system.cpython-36.pyc
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\commands\__pycache__\time.cpython-36.pyc
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\commands\__pycache__\uninstall.cpython-36.pyc
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\commands\__pycache__\upgrade.cpython-36.pyc
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\commands\__pycache__\upload.cpython-36.pyc
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\commands\__pycache__\verify.cpython-36.pyc
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\commands\boards.py
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\commands\build.py
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\commands\clean.py
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\commands\config.py
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\commands\drivers.py
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\commands\examples.py
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\commands\init.py
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\commands\install.py
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\commands\lint.py
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\commands\sim.py
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\commands\system.py
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\commands\time.py
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\commands\uninstall.py
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\commands\upgrade.py
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\commands\upload.py
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\commands\verify.py
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\managers\__init__.py
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\managers\__pycache__\__init__.cpython-36.pyc
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\managers\__pycache__\arguments.cpython-36.pyc
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\managers\__pycache__\downloader.cpython-36.pyc
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\managers\__pycache__\drivers.cpython-36.pyc
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\managers\__pycache__\examples.cpython-36.pyc
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\managers\__pycache__\installer.cpython-36.pyc
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\managers\__pycache__\project.cpython-36.pyc
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\managers\__pycache__\scons.cpython-36.pyc
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\managers\__pycache__\system.cpython-36.pyc
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\managers\__pycache__\unpacker.cpython-36.pyc
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\managers\arguments.py
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\managers\downloader.py
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\managers\drivers.py
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\managers\examples.py
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\managers\installer.py
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\managers\project.py
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\managers\scons.py
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\managers\system.py
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\managers\unpacker.py
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\profile.py
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\resources.py
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\resources\80-fpga-ftdi.rules
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\resources\80-fpga-serial.rules
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\resources\boards.json
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\resources\distribution.json
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\resources\fpgas.json
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\resources\packages.json
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\resources\programmers.json
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\resources\sconstruct
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\apio\util.py
  c:\users\pfefferz\appdata\local\programs\python\python36\scripts\apio-script.py
  c:\users\pfefferz\appdata\local\programs\python\python36\scripts\apio.exe

6. Type y to proceed

You should see:

Successfully uninstalled apio-0.4.0b5
Uninstalling tinyprog-1.0.21:
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\tinyprog-1.0.21.dist-info\description.rst
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\tinyprog-1.0.21.dist-info\entry_points.txt
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\tinyprog-1.0.21.dist-info\installer
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\tinyprog-1.0.21.dist-info\metadata
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\tinyprog-1.0.21.dist-info\metadata.json
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\tinyprog-1.0.21.dist-info\record
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\tinyprog-1.0.21.dist-info\top_level.txt
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\tinyprog-1.0.21.dist-info\wheel
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\tinyprog\__init__.py
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\tinyprog\__main__.py
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\tinyprog\__pycache__\__init__.cpython-36.pyc
  c:\users\pfefferz\appdata\local\programs\python\python36\lib\site-packages\tinyprog\__pycache__\__main__.cpython-36.pyc
  c:\users\pfefferz\appdata\local\programs\python\python36\scripts\tinyprog.exe

7. Type y to proceed again

You should see:

Successfully uninstalled tinyprog-1.0.21
You are using pip version 9.0.3, however version 18.1 is available.
You should consider upgrading via the 'python -m pip install --upgrade pip' command.

Uninstall Python 3.6.5 (64-bit)

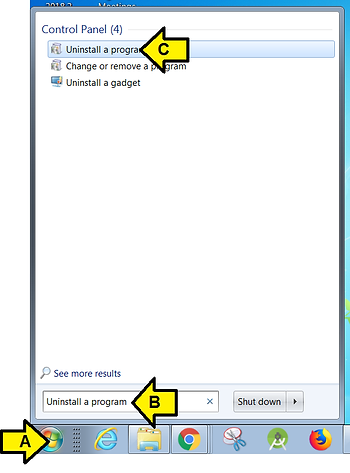

8. (A) Click Windows, (B) type Uninstall a program and (C) click Uninstall a program

uninstall_a_program_14

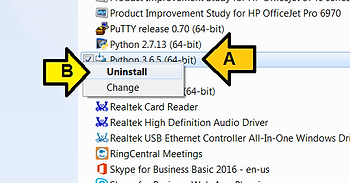

9. (A) Right-click on Python 3.6.5 (64-bit) and (B) click Uninstall

uninstall_python_15

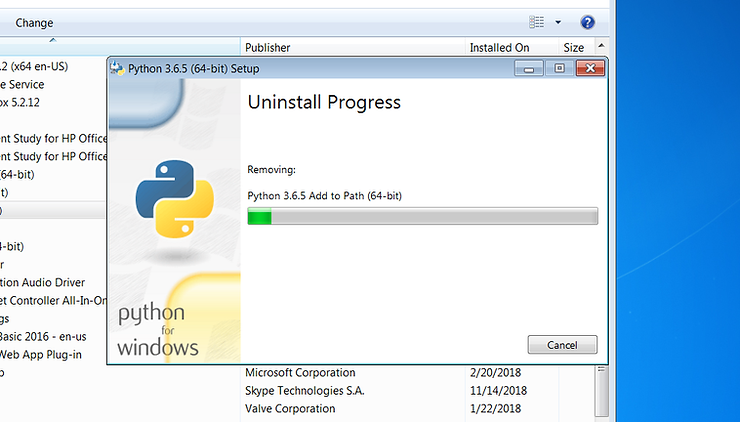

You should see:

uninstalling_progress_16

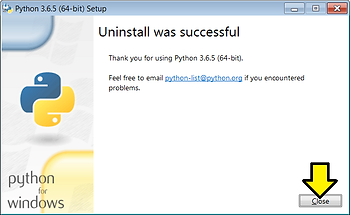

10. Click Close

close_uninstallation_window_17

Reference

TinyFPGA BX User Guide at [link]
