Install Ubuntu 16.04 on a USB Stick from Windows

ubuntu_logo_1

This guide gives the exact steps to install Ubuntu on a USB stick from Windows. With these instructions the USB stick will not have any persistent storage.

Warning

The instructions have you destroy any existing data on the USB stick.

Steps

1. Go to http://releases.ubuntu.com/16.04.4/

2. Download 64-bit PC (AMD64) desktop image

Note: the file is 1.5 GB

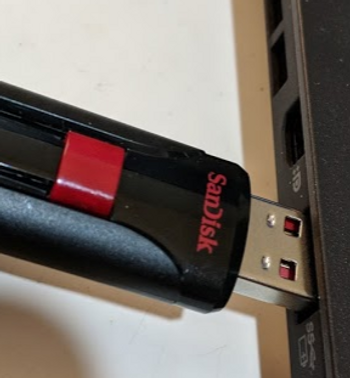

3. Insert your USB stick:

insert_usb_stick_2

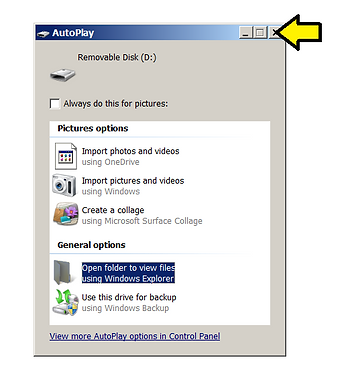

If you get an AutoPlay window, close it by clicking on the ‘x’:

autoplay_window_3

4. Download Rufus from link.

Note: There’s no need to install Rufus. Its just an exe. I saved mine to C:\tools

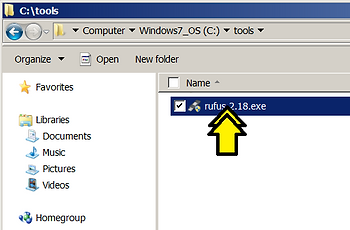

5. Double click on rufus-2.18.exe to run it

run_rufus_exe_4

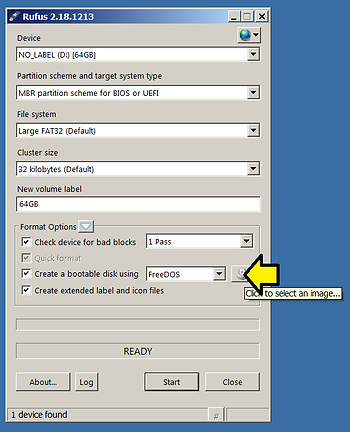

6. Use the following settings and click on the disk icon.

use_following_settings_5

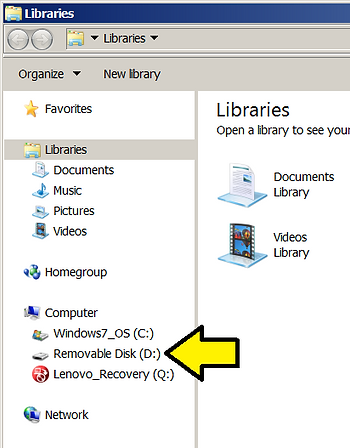

Make sure Device is the USB stick you plugged in. To do this, note the drive letter (D:) Run Windows Explorer by right clicking on Start and clicking Open Windows Explorer.

open_windows_explorer_6

removable_disk_is_inserted_7

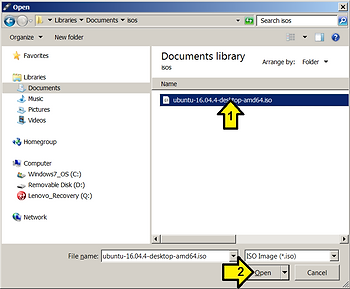

7. (1) Select the ISO and (2) click Open

open_iso_8

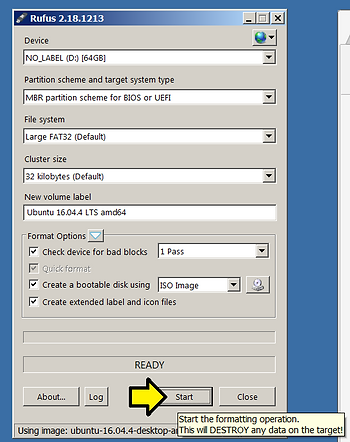

8. Click Start

start_usb_install_9

Note: I’ve selected Check device for bad blocks so that I can make sure the device has no bad blocks before using it. It does take more time to program a USB stick if this is selected.

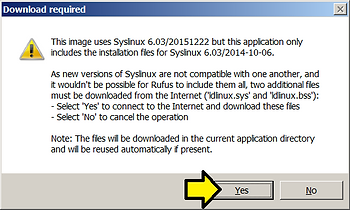

9. Click OK on the Download required popup

okay_for_download_required_10

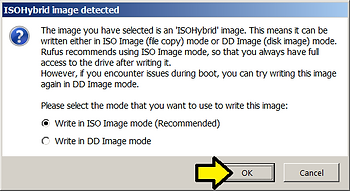

10. Leave Write in ISO Image mode (Recommended) selected and click OK on the ISOHybrid image detected window

write_in_iso_image_mode_11

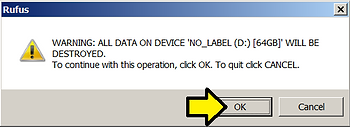

11. Click OK on the WARNING: ALL DATA… pop up. It will take a bit since we’ve selected Check the device for bad blocks.

warning_all_data_pop_up_12

Note: with Check for bad blocks programming can take time.

11.1. Click on Log to get the log.

find_log_13

Here’s the log from my run:

Rufus version: 2.18.1213
Windows version: Windows 7 SP1 64-bit
Syslinux versions: 4.07/2013-07-25, 6.03/2014-10-06
Grub versions: 0.4.6a, 2.02
System locale ID: 0x0409
Will use default UI locale 0x0409
SetLGP: Successfully set NoDriveTypeAutorun policy to 0x0000009E
Localization set to 'en-US'
Found USB 2.0 device 'SanDisk Cruzer Glide USB Device' (0781:5575)
1 device found
Disk type: Removable, Disk size: 64GB, Sector size: 512 bytes
Cylinders: 7645, Tracks per cylinder: 255, Sectors per track: 63
Partition type: MBR, NB Partitions: 1
Disk ID: 0x00000000
Drive has a Zeroed Master Boot Record
Partition 1:
  Type: FAT32 LBA (0x0c)
  Size: 58.6 GB (62889377792 bytes)
  Start Sector: 32, Boot: No
Checking for Rufus updates...
Checking release channel...
No new release version found.
Scanning image...
ISO analysis:
  Image is an ISO9660 image
  Will use '/isolinux/isolinux.cfg' for Syslinux
  Detected Syslinux version: 6.03/20151222 (from '/isolinux/isolinux.bin')
Disk image analysis:
  Image has an unknown Master Boot Record
  Image is a bootable disk image
ISO label: 'Ubuntu 16.04.4 LTS amd64'
  Size: 1.5 GB (Projected)
  Has a >64 chars filename
  Uses: Syslinux/Isolinux v6.03
  Uses: EFI
  Note: This ISO uses symbolic links, which will not be replicated due to file system limitations.
  Because of this, some features from this image may not work...
Using image: ubuntu-16.04.4-desktop-amd64.iso (1.5 GB)
Downloading 'ldlinux.sys' from http://rufus.akeo.ie/files/syslinux-6.03/20151222/ldlinux.sys
Unable to access file: 404
Extended version was not found, trying main version...
Downloading 'ldlinux.sys' from http://rufus.akeo.ie/files/syslinux-6.03/ldlinux.sys
File length: 68599 bytes
Successfully downloaded 'ldlinux.sys'
Downloading 'ldlinux.bss' from http://rufus.akeo.ie/files/syslinux-6.03/20151222/ldlinux.bss
Unable to access file: 404
Extended version was not found, trying main version...
Downloading 'ldlinux.bss' from http://rufus.akeo.ie/files/syslinux-6.03/ldlinux.bss
File length: 512 bytes
Successfully downloaded 'ldlinux.bss'

Format operation started
Requesting disk access...
Opened \\.\PHYSICALDRIVE1 for exclusive write access
Requesting lock...
Will use 'D:' as volume mountpoint
I/O boundary checks disabled
Requesting lock...
Analyzing existing boot records...
Drive has a Zeroed Master Boot Record
Volume has an unknown Partition Boot Record
Clearing MBR/PBR/GPT structures...
Erasing 32 sectors
Deleting partitions...
Bad Blocks: Checking from block 0 to 122830847
Bad Blocks: Using offset 310 for fake device check
Bad Blocks: Writing test pattern 0xAA
Bad Blocks: Reading and comparing
Bad Blocks: Check completed, 0 bad blocks found. (0/0/0 errors)
Clearing MBR/PBR/GPT structures...
Erasing 32 sectors
Partitioning (MBR)...
Closing existing volume...
Waiting for logical drive to reappear...
Formatting (Large FAT32)...
Opened \\?\Volume{46523d02-27f7-11e8-9654-f48c503076b7} for exclusive write access
Requesting lock...
Size : 58.6 GB 122828800 sectors
Cluster size 32768 bytes, 512 Bytes Per Sector
Volume ID is 1700:3815
32 Reserved Sectors, 14991 Sectors per FAT, 2 FATs
1918731 Total clusters
1918730 Free Clusters
Clearing out 30078 sectors for reserved sectors, FATs and root cluster...
Initializing reserved sectors and FATs...
FAT #0 sector at address: 32
FAT #1 sector at address: 15023
Writing partition boot record...
Using Standard FAT32 partition boot record
Confirmed new volume has a primary FAT32 boot sector
Setting primary FAT32 boot sector for boot...
Confirmed new volume has a secondary FAT32 boot sector
Setting secondary FAT32 boot sector for boot...
Setting Label (This may take while)...
Format completed.
Writing master boot record...
Drive has a Zeroed Master Boot Record
Partition is already FAT32 LBA...
Set bootable USB partition as 0x80
Using Syslinux MBR
Found volume GUID \\?\Volume{46523d02-27f7-11e8-9654-f48c503076b7}\
Installing Syslinux 6.03...
Opened \\?\Volume{46523d02-27f7-11e8-9654-f48c503076b7} for shared write access
Using existing './rufus_files/syslinux-6.03/20151222/ldlinux.sys' ✓
Using existing './rufus_files/syslinux-6.03/20151222/ldlinux.bss' ✓
Successfully wrote 'ldlinux.sys'
Successfully wrote Syslinux boot record
Successfully remounted \\?\Volume{46523d02-27f7-11e8-9654-f48c503076b7}\ on D:
Copying ISO files...
Extracting files...
Image is an ISO9660 image
This image will be extracted using Rock Ridge extensions (if present)
Extracting: D:\.disk\base_installable (0 bytes)
Extracting: D:\.disk\casper-uuid-generic (37 bytes)
Extracting: D:\.disk\cd_type (15 bytes)
Extracting: D:\.disk\info (60 bytes)
Extracting: D:\.disk\release_notes_url (80 bytes)
Extracting: D:\boot\grub\efi.img (2.3 MB)
Extracting: D:\boot\grub\font.pf2 (4.9 KB)
Extracting: D:\boot\grub\grub.cfg (955 bytes)
Extracting: D:\boot\grub\loopback.cfg (625 bytes)
Extracting: D:\boot\grub\x86_64-efi\acpi.mod (15.7 KB)
Extracting: D:\boot\grub\x86_64-efi\adler32.mod (2.0 KB)
Extracting: D:\boot\grub\x86_64-efi\ahci.mod (22.1 KB)
Extracting: D:\boot\grub\x86_64-efi\all_video.mod (1 KB)
Extracting: D:\boot\grub\x86_64-efi\aout.mod (1.6 KB)
Extracting: D:\boot\grub\x86_64-efi\appleldr.mod (5.3 KB)
Extracting: D:\boot\grub\x86_64-efi\archelp.mod (4.5 KB)
Extracting: D:\boot\grub\x86_64-efi\ata.mod (8.8 KB)
Extracting: D:\boot\grub\x86_64-efi\at_keyboard.mod (7.4 KB)
Extracting: D:\boot\grub\x86_64-efi\backtrace.mod (2.6 KB)
Extracting: D:\boot\grub\x86_64-efi\bfs.mod (9.8 KB)
Extracting: D:\boot\grub\x86_64-efi\bitmap.mod (3.2 KB)
Extracting: D:\boot\grub\x86_64-efi\bitmap_scale.mod (5.2 KB)
Extracting: D:\boot\grub\x86_64-efi\blocklist.mod (3.2 KB)
Extracting: D:\boot\grub\x86_64-efi\boot.mod (3.3 KB)
Extracting: D:\boot\grub\x86_64-efi\bsd.mod (48.2 KB)
Extracting: D:\boot\grub\x86_64-efi\btrfs.mod (19.2 KB)
Extracting: D:\boot\grub\x86_64-efi\bufio.mod (2.9 KB)
Extracting: D:\boot\grub\x86_64-efi\cat.mod (4.2 KB)
Extracting: D:\boot\grub\x86_64-efi\cbfs.mod (5.4 KB)
Extracting: D:\boot\grub\x86_64-efi\cbls.mod (6.2 KB)
Extracting: D:\boot\grub\x86_64-efi\cbmemc.mod (3.9 KB)
Extracting: D:\boot\grub\x86_64-efi\cbtable.mod (1.7 KB)
Extracting: D:\boot\grub\x86_64-efi\cbtime.mod (4.1 KB)
Extracting: D:\boot\grub\x86_64-efi\chain.mod (20.6 KB)
Extracting: D:\boot\grub\x86_64-efi\cmdline_cat_test.mod (4.7 KB)
Extracting: D:\boot\grub\x86_64-efi\cmp.mod (2.9 KB)
Extracting: D:\boot\grub\x86_64-efi\command.lst (3.5 KB)
Extracting: D:\boot\grub\x86_64-efi\cpio.mod (4.3 KB)
Extracting: D:\boot\grub\x86_64-efi\cpio_be.mod (4.3 KB)
Extracting: D:\boot\grub\x86_64-efi\cpuid.mod (2.6 KB)
Extracting: D:\boot\grub\x86_64-efi\crc64.mod (2.2 KB)
Extracting: D:\boot\grub\x86_64-efi\crypto.lst (936 bytes)
Extracting: D:\boot\grub\x86_64-efi\crypto.mod (6.9 KB)
Extracting: D:\boot\grub\x86_64-efi\cryptodisk.mod (15.6 KB)
Extracting: D:\boot\grub\x86_64-efi\cs5536.mod (3.9 KB)
Extracting: D:\boot\grub\x86_64-efi\date.mod (3.3 KB)
Extracting: D:\boot\grub\x86_64-efi\datehook.mod (3 KB)
Extracting: D:\boot\grub\x86_64-efi\datetime.mod (2.0 KB)
Extracting: D:\boot\grub\x86_64-efi\disk.mod (3.1 KB)
Extracting: D:\boot\grub\x86_64-efi\diskfilter.mod (13.5 KB)
Extracting: D:\boot\grub\x86_64-efi\div_test.mod (5.7 KB)
Extracting: D:\boot\grub\x86_64-efi\dm_nv.mod (2.7 KB)
Extracting: D:\boot\grub\x86_64-efi\echo.mod (3.1 KB)
Extracting: D:\boot\grub\x86_64-efi\efifwsetup.mod (2.3 KB)
Extracting: D:\boot\grub\x86_64-efi\efinet.mod (10 KB)
Extracting: D:\boot\grub\x86_64-efi\efi_gop.mod (13.4 KB)
Extracting: D:\boot\grub\x86_64-efi\efi_uga.mod (7.4 KB)
Extracting: D:\boot\grub\x86_64-efi\ehci.mod (24.5 KB)
Extracting: D:\boot\grub\x86_64-efi\elf.mod (7.2 KB)
Extracting: D:\boot\grub\x86_64-efi\eval.mod (2.2 KB)
Extracting: D:\boot\grub\x86_64-efi\exfat.mod (8.3 KB)
Extracting: D:\boot\grub\x86_64-efi\exfctest.mod (2.3 KB)
Extracting: D:\boot\grub\x86_64-efi\ext2.mod (8.4 KB)
Extracting: D:\boot\grub\x86_64-efi\fat.mod (8.5 KB)
Extracting: D:\boot\grub\x86_64-efi\file.mod (23.9 KB)
Extracting: D:\boot\grub\x86_64-efi\fixvideo.mod (3 KB)
Extracting: D:\boot\grub\x86_64-efi\font.mod (17.5 KB)
Extracting: D:\boot\grub\x86_64-efi\fs.lst (214 bytes)
Extracting: D:\boot\grub\x86_64-efi\gcry_arcfour.mod (2.5 KB)
Extracting: D:\boot\grub\x86_64-efi\gcry_blowfish.mod (9.1 KB)
Extracting: D:\boot\grub\x86_64-efi\gcry_camellia.mod (31.2 KB)
Extracting: D:\boot\grub\x86_64-efi\gcry_cast5.mod (14.4 KB)
Extracting: D:\boot\grub\x86_64-efi\gcry_crc.mod (3.9 KB)
Extracting: D:\boot\grub\x86_64-efi\gcry_des.mod (16.6 KB)
Extracting: D:\boot\grub\x86_64-efi\gcry_dsa.mod (3.5 KB)
Extracting: D:\boot\grub\x86_64-efi\gcry_idea.mod (4.1 KB)
Extracting: D:\boot\grub\x86_64-efi\gcry_md4.mod (4.2 KB)
Extracting: D:\boot\grub\x86_64-efi\gcry_md5.mod (4.7 KB)
Extracting: D:\boot\grub\x86_64-efi\gcry_rfc2268.mod (3.3 KB)
Extracting: D:\boot\grub\x86_64-efi\gcry_rijndael.mod (20.5 KB)
Extracting: D:\boot\grub\x86_64-efi\gcry_rmd160.mod (7.9 KB)
Extracting: D:\boot\grub\x86_64-efi\gcry_rsa.mod (3.5 KB)
Extracting: D:\boot\grub\x86_64-efi\gcry_seed.mod (15.8 KB)
Extracting: D:\boot\grub\x86_64-efi\gcry_serpent.mod (16.7 KB)
Extracting: D:\boot\grub\x86_64-efi\gcry_sha1.mod (7.7 KB)
Extracting: D:\boot\grub\x86_64-efi\gcry_sha256.mod (5.4 KB)
Extracting: D:\boot\grub\x86_64-efi\gcry_sha512.mod (6.4 KB)
Extracting: D:\boot\grub\x86_64-efi\gcry_tiger.mod (13.4 KB)
Extracting: D:\boot\grub\x86_64-efi\gcry_twofish.mod (33.3 KB)
Extracting: D:\boot\grub\x86_64-efi\gcry_whirlpool.mod (22.4 KB)
Extracting: D:\boot\grub\x86_64-efi\geli.mod (8.9 KB)
Extracting: D:\boot\grub\x86_64-efi\gettext.mod (8.5 KB)
Extracting: D:\boot\grub\x86_64-efi\gfxmenu.mod (58.6 KB)
Extracting: D:\boot\grub\x86_64-efi\gfxterm.mod (17.6 KB)
Extracting: D:\boot\grub\x86_64-efi\gfxterm_background.mod (4.7 KB)
Extracting: D:\boot\grub\x86_64-efi\gfxterm_menu.mod (7.7 KB)
Extracting: D:\boot\grub\x86_64-efi\gptsync.mod (5 KB)
Extracting: D:\boot\grub\x86_64-efi\grub.cfg (219 bytes)
Extracting: D:\boot\grub\x86_64-efi\gzio.mod (11.2 KB)
Extracting: D:\boot\grub\x86_64-efi\halt.mod (6.7 KB)
Extracting: D:\boot\grub\x86_64-efi\hashsum.mod (8.5 KB)
Extracting: D:\boot\grub\x86_64-efi\hdparm.mod (11.1 KB)
Extracting: D:\boot\grub\x86_64-efi\help.mod (4.0 KB)
Extracting: D:\boot\grub\x86_64-efi\hexdump.mod (4.5 KB)
Extracting: D:\boot\grub\x86_64-efi\hfs.mod (10.3 KB)
Extracting: D:\boot\grub\x86_64-efi\hfsplus.mod (10.5 KB)
Extracting: D:\boot\grub\x86_64-efi\hfspluscomp.mod (4.3 KB)
Extracting: D:\boot\grub\x86_64-efi\http.mod (9.5 KB)
Extracting: D:\boot\grub\x86_64-efi\iorw.mod (4.6 KB)
Extracting: D:\boot\grub\x86_64-efi\jfs.mod (8.8 KB)
Extracting: D:\boot\grub\x86_64-efi\jpeg.mod (8.6 KB)
Extracting: D:\boot\grub\x86_64-efi\keylayouts.mod (6.3 KB)
Extracting: D:\boot\grub\x86_64-efi\keystatus.mod (3.1 KB)
Extracting: D:\boot\grub\x86_64-efi\ldm.mod (8.2 KB)
Extracting: D:\boot\grub\x86_64-efi\legacycfg.mod (43.5 KB)
Extracting: D:\boot\grub\x86_64-efi\legacy_password_test.mod (15.6 KB)
Extracting: D:\boot\grub\x86_64-efi\linux.mod (21.3 KB)
Extracting: D:\boot\grub\x86_64-efi\linux16.mod (12.7 KB)
Extracting: D:\boot\grub\x86_64-efi\linuxefi.mod (10.1 KB)
Extracting: D:\boot\grub\x86_64-efi\loadbios.mod (4.8 KB)
Extracting: D:\boot\grub\x86_64-efi\loadenv.mod (9.3 KB)
Extracting: D:\boot\grub\x86_64-efi\loopback.mod (4.8 KB)
Extracting: D:\boot\grub\x86_64-efi\ls.mod (6.6 KB)
Extracting: D:\boot\grub\x86_64-efi\lsacpi.mod (7.2 KB)
Extracting: D:\boot\grub\x86_64-efi\lsefi.mod (5.3 KB)
Extracting: D:\boot\grub\x86_64-efi\lsefimmap.mod (3.7 KB)
Extracting: D:\boot\grub\x86_64-efi\lsefisystab.mod (3.5 KB)
Extracting: D:\boot\grub\x86_64-efi\lsmmap.mod (3.0 KB)
Extracting: D:\boot\grub\x86_64-efi\lspci.mod (7.2 KB)
Extracting: D:\boot\grub\x86_64-efi\lssal.mod (3.9 KB)
Extracting: D:\boot\grub\x86_64-efi\luks.mod (9.3 KB)
Extracting: D:\boot\grub\x86_64-efi\lvm.mod (9.6 KB)
Extracting: D:\boot\grub\x86_64-efi\lzopio.mod (12.0 KB)
Extracting: D:\boot\grub\x86_64-efi\macbless.mod (4.9 KB)
Extracting: D:\boot\grub\x86_64-efi\macho.mod (10.6 KB)
Extracting: D:\boot\grub\x86_64-efi\mdraid09.mod (2.8 KB)
Extracting: D:\boot\grub\x86_64-efi\mdraid09_be.mod (2.8 KB)
Extracting: D:\boot\grub\x86_64-efi\mdraid1x.mod (2.7 KB)
Extracting: D:\boot\grub\x86_64-efi\memrw.mod (4.6 KB)
Extracting: D:\boot\grub\x86_64-efi\minicmd.mod (5.5 KB)
Extracting: D:\boot\grub\x86_64-efi\minix2.mod (5.5 KB)
Extracting: D:\boot\grub\x86_64-efi\minix2_be.mod (5.6 KB)
Extracting: D:\boot\grub\x86_64-efi\minix3.mod (5.5 KB)
Extracting: D:\boot\grub\x86_64-efi\minix3_be.mod (5.5 KB)
Extracting: D:\boot\grub\x86_64-efi\minix_be.mod (5.5 KB)
Extracting: D:\boot\grub\x86_64-efi\mmap.mod (9.5 KB)
Extracting: D:\boot\grub\x86_64-efi\moddep.lst (4.7 KB)
Extracting: D:\boot\grub\x86_64-efi\morse.mod (3.4 KB)
Extracting: D:\boot\grub\x86_64-efi\mpi.mod (42.7 KB)
Extracting: D:\boot\grub\x86_64-efi\msdospart.mod (3.7 KB)
Extracting: D:\boot\grub\x86_64-efi\multiboot.mod (18.5 KB)
Extracting: D:\boot\grub\x86_64-efi\multiboot2.mod (20.3 KB)
Extracting: D:\boot\grub\x86_64-efi\nativedisk.mod (6.5 KB)
Extracting: D:\boot\grub\x86_64-efi\net.mod (85.8 KB)
Extracting: D:\boot\grub\x86_64-efi\newc.mod (4.5 KB)
Extracting: D:\boot\grub\x86_64-efi\ntfs.mod (15 KB)
Extracting: D:\boot\grub\x86_64-efi\ntfscomp.mod (5.7 KB)
Extracting: D:\boot\grub\x86_64-efi\odc.mod (4.3 KB)
Extracting: D:\boot\grub\x86_64-efi\offsetio.mod (2.3 KB)
Extracting: D:\boot\grub\x86_64-efi\ohci.mod (15.8 KB)
Extracting: D:\boot\grub\x86_64-efi\partmap.lst (111 bytes)
Extracting: D:\boot\grub\x86_64-efi\parttool.lst (17 bytes)
Extracting: D:\boot\grub\x86_64-efi\parttool.mod (7.3 KB)
Extracting: D:\boot\grub\x86_64-efi\part_acorn.mod (2.3 KB)
Extracting: D:\boot\grub\x86_64-efi\part_amiga.mod (2.6 KB)
Extracting: D:\boot\grub\x86_64-efi\part_apple.mod (3 KB)
Extracting: D:\boot\grub\x86_64-efi\part_bsd.mod (4.2 KB)
Extracting: D:\boot\grub\x86_64-efi\part_dfly.mod (2.7 KB)
Extracting: D:\boot\grub\x86_64-efi\part_dvh.mod (2.2 KB)
Extracting: D:\boot\grub\x86_64-efi\part_gpt.mod (3.3 KB)
Extracting: D:\boot\grub\x86_64-efi\part_msdos.mod (3 KB)
Extracting: D:\boot\grub\x86_64-efi\part_plan.mod (2.6 KB)
Extracting: D:\boot\grub\x86_64-efi\part_sun.mod (2.3 KB)
Extracting: D:\boot\grub\x86_64-efi\part_sunpc.mod (2.5 KB)
Extracting: D:\boot\grub\x86_64-efi\password.mod (3.0 KB)
Extracting: D:\boot\grub\x86_64-efi\password_pbkdf2.mod (4.4 KB)
Extracting: D:\boot\grub\x86_64-efi\pata.mod (7.2 KB)
Extracting: D:\boot\grub\x86_64-efi\pbkdf2.mod (2.1 KB)
Extracting: D:\boot\grub\x86_64-efi\pbkdf2_test.mod (3.5 KB)
Extracting: D:\boot\grub\x86_64-efi\pcidump.mod (3.6 KB)
Extracting: D:\boot\grub\x86_64-efi\play.mod (3.9 KB)
Extracting: D:\boot\grub\x86_64-efi\png.mod (10.1 KB)
Extracting: D:\boot\grub\x86_64-efi\priority_queue.mod (2.2 KB)
Extracting: D:\boot\grub\x86_64-efi\probe.mod (4.2 KB)
Extracting: D:\boot\grub\x86_64-efi\procfs.mod (3.5 KB)
Extracting: D:\boot\grub\x86_64-efi\progress.mod (3.0 KB)
Extracting: D:\boot\grub\x86_64-efi\raid5rec.mod (2.1 KB)
Extracting: D:\boot\grub\x86_64-efi\raid6rec.mod (3.3 KB)
Extracting: D:\boot\grub\x86_64-efi\read.mod (2.3 KB)
Extracting: D:\boot\grub\x86_64-efi\reboot.mod (1.9 KB)
Extracting: D:\boot\grub\x86_64-efi\regexp.mod (75 KB)
Extracting: D:\boot\grub\x86_64-efi\reiserfs.mod (13.8 KB)
Extracting: D:\boot\grub\x86_64-efi\relocator.mod (25.3 KB)
Extracting: D:\boot\grub\x86_64-efi\romfs.mod (5.7 KB)
Extracting: D:\boot\grub\x86_64-efi\scsi.mod (7.2 KB)
Extracting: D:\boot\grub\x86_64-efi\serial.mod (14.3 KB)
Extracting: D:\boot\grub\x86_64-efi\setjmp.mod (1 KB)
Extracting: D:\boot\grub\x86_64-efi\setjmp_test.mod (2.7 KB)
Extracting: D:\boot\grub\x86_64-efi\setpci.mod (8.8 KB)
Extracting: D:\boot\grub\x86_64-efi\signature_test.mod (8.6 KB)
Extracting: D:\boot\grub\x86_64-efi\sleep.mod (3.6 KB)
Extracting: D:\boot\grub\x86_64-efi\sleep_test.mod (3.5 KB)
Extracting: D:\boot\grub\x86_64-efi\spkmodem.mod (3.2 KB)
Extracting: D:\boot\grub\x86_64-efi\squash4.mod (9.4 KB)
Extracting: D:\boot\grub\x86_64-efi\syslinuxcfg.mod (28.9 KB)
Extracting: D:\boot\grub\x86_64-efi\terminal.lst (162 bytes)
Extracting: D:\boot\grub\x86_64-efi\terminal.mod (6.7 KB)
Extracting: D:\boot\grub\x86_64-efi\terminfo.mod (19.2 KB)
Extracting: D:\boot\grub\x86_64-efi\test.mod (7.6 KB)
Extracting: D:\boot\grub\x86_64-efi\testload.mod (3.8 KB)
Extracting: D:\boot\grub\x86_64-efi\testspeed.mod (3.5 KB)
Extracting: D:\boot\grub\x86_64-efi\test_blockarg.mod (2.1 KB)
Extracting: D:\boot\grub\x86_64-efi\tftp.mod (8.4 KB)
Extracting: D:\boot\grub\x86_64-efi\tga.mod (6.5 KB)
Extracting: D:\boot\grub\x86_64-efi\time.mod (2.4 KB)
Extracting: D:\boot\grub\x86_64-efi\tr.mod (3.7 KB)
Extracting: D:\boot\grub\x86_64-efi\trig.mod (2 KB)
Extracting: D:\boot\grub\x86_64-efi\true.mod (1.9 KB)
Extracting: D:\boot\grub\x86_64-efi\udf.mod (11.1 KB)
Extracting: D:\boot\grub\x86_64-efi\ufs1.mod (7.7 KB)
Extracting: D:\boot\grub\x86_64-efi\ufs1_be.mod (7.9 KB)
Extracting: D:\boot\grub\x86_64-efi\ufs2.mod (7.7 KB)
Extracting: D:\boot\grub\x86_64-efi\uhci.mod (10.1 KB)
Extracting: D:\boot\grub\x86_64-efi\usb.mod (15.6 KB)
Extracting: D:\boot\grub\x86_64-efi\usbms.mod (11 KB)
Extracting: D:\boot\grub\x86_64-efi\usbserial_common.mod (3 KB)
Extracting: D:\boot\grub\x86_64-efi\usbserial_ftdi.mod (3.5 KB)
Extracting: D:\boot\grub\x86_64-efi\usbserial_pl2303.mod (3.8 KB)
Extracting: D:\boot\grub\x86_64-efi\usbserial_usbdebug.mod (2.4 KB)
Extracting: D:\boot\grub\x86_64-efi\usbtest.mod (5.5 KB)
Extracting: D:\boot\grub\x86_64-efi\usb_keyboard.mod (5.8 KB)
Extracting: D:\boot\grub\x86_64-efi\verify.mod (19.2 KB)
Extracting: D:\boot\grub\x86_64-efi\video.lst (41 bytes)
Extracting: D:\boot\grub\x86_64-efi\video.mod (9.0 KB)
Extracting: D:\boot\grub\x86_64-efi\videoinfo.mod (5.7 KB)
Extracting: D:\boot\grub\x86_64-efi\videotest.mod (5.4 KB)
Extracting: D:\boot\grub\x86_64-efi\videotest_checksum.mod (3.8 KB)
Extracting: D:\boot\grub\x86_64-efi\video_bochs.mod (9.1 KB)
Extracting: D:\boot\grub\x86_64-efi\video_cirrus.mod (9.5 KB)
Extracting: D:\boot\grub\x86_64-efi\video_colors.mod (9.9 KB)
Extracting: D:\boot\grub\x86_64-efi\video_fb.mod (28.6 KB)
Extracting: D:\boot\grub\x86_64-efi\xfs.mod (10.4 KB)
Extracting: D:\boot\grub\x86_64-efi\xnu.mod (41.1 KB)
Extracting: D:\boot\grub\x86_64-efi\xnu_uuid.mod (3.3 KB)
Extracting: D:\boot\grub\x86_64-efi\xnu_uuid_test.mod (3.3 KB)
Extracting: D:\boot\grub\x86_64-efi\xzio.mod (20 KB)
Extracting: D:\boot\grub\x86_64-efi\zfscrypt.mod (8.4 KB)
Extracting: D:\casper\filesystem.manifest (67.2 KB)
Extracting: D:\casper\filesystem.manifest-remove (3.8 KB)
Extracting: D:\casper\filesystem.size (11 bytes)
Extracting: D:\casper\filesystem.squashfs (1.5 GB)
Extracting: D:\casper\filesystem.squashfs.gpg (916 bytes)
Extracting: D:\casper\initrd.lz (30.3 MB)
Extracting: D:\casper\vmlinuz.efi (7.4 MB)
Extracting: D:\dists\stable (0 bytes)
  Ignoring Rock Ridge symbolic link to 'xenial'
Extracting: D:\dists\unstable (0 bytes)
  Ignoring Rock Ridge symbolic link to 'xenial'
Extracting: D:\dists\xenial\main\binary-amd64\Packages.gz (10.3 KB)
Extracting: D:\dists\xenial\main\binary-amd64\Release (96 bytes)
Extracting: D:\dists\xenial\main\binary-i386\Packages.gz (20 bytes)
Extracting: D:\dists\xenial\main\binary-i386\Release (95 bytes)
Extracting: D:\dists\xenial\Release (3.3 KB)
Extracting: D:\dists\xenial\Release.gpg (819 bytes)
Extracting: D:\dists\xenial\restricted\binary-amd64\Packages.gz (818 bytes)
Extracting: D:\dists\xenial\restricted\binary-amd64\Release (102 bytes)
Extracting: D:\dists\xenial\restricted\binary-i386\Packages.gz (20 bytes)
Extracting: D:\dists\xenial\restricted\binary-i386\Release (101 bytes)
Extracting: D:\EFI\BOOT\BOOTx64.EFI (1.1 MB)
Extracting: D:\EFI\BOOT\grubx64.efi (1.1 MB)
Extracting: D:\install\mt86plus (178.4 KB)
Extracting: D:\isolinux\16x16.fnt (69.6 KB)
Extracting: D:\isolinux\access.pcx (3.3 KB)
Extracting: D:\isolinux\adtxt.cfg (0 bytes)
Extracting: D:\isolinux\am.tr (3.4 KB)
Extracting: D:\isolinux\ast.hlp (7.2 KB)
Extracting: D:\isolinux\ast.tr (2.3 KB)
Extracting: D:\isolinux\back.jpg (7.3 KB)
Extracting: D:\isolinux\be.hlp (11.4 KB)
Extracting: D:\isolinux\be.tr (3.9 KB)
Extracting: D:\isolinux\bg.hlp (11.4 KB)
Extracting: D:\isolinux\bg.tr (4.3 KB)
Extracting: D:\isolinux\blank.pcx (11.2 KB)
Extracting: D:\isolinux\bn.hlp (14.8 KB)
Extracting: D:\isolinux\boot.cat (2 KB)
Extracting: D:\isolinux\bootlogo (842.5 KB)
Extracting: D:\isolinux\bs.hlp (6.9 KB)
Extracting: D:\isolinux\bs.tr (2.3 KB)
Extracting: D:\isolinux\ca.hlp (7.9 KB)
Extracting: D:\isolinux\ca.tr (2.6 KB)
Extracting: D:\isolinux\chain.c32 (24.3 KB)
Extracting: D:\isolinux\cs.hlp (7.2 KB)
Extracting: D:\isolinux\cs.tr (2.4 KB)
Extracting: D:\isolinux\da.hlp (6.7 KB)
Extracting: D:\isolinux\da.tr (2.3 KB)
Extracting: D:\isolinux\de.hlp (7.6 KB)
Extracting: D:\isolinux\de.tr (2.5 KB)
Extracting: D:\isolinux\dtmenu.cfg (1.4 KB)
Extracting: D:\isolinux\el.hlp (13.1 KB)
Extracting: D:\isolinux\el.tr (4.6 KB)
Extracting: D:\isolinux\en.hlp (6.4 KB)
Extracting: D:\isolinux\en.tr (2 KB)
Extracting: D:\isolinux\eo.hlp (6.7 KB)
Extracting: D:\isolinux\eo.tr (2.2 KB)
Extracting: D:\isolinux\es.hlp (7.5 KB)
Extracting: D:\isolinux\es.tr (2.3 KB)
Extracting: D:\isolinux\et.hlp (6.6 KB)
Extracting: D:\isolinux\et.tr (2.2 KB)
Extracting: D:\isolinux\eu.hlp (7 KB)
Extracting: D:\isolinux\eu.tr (2.2 KB)
Extracting: D:\isolinux\exithelp.cfg (53 bytes)
Extracting: D:\isolinux\f1.txt (869 bytes)
Extracting: D:\isolinux\f10.txt (723 bytes)
Extracting: D:\isolinux\f2.txt (739 bytes)
Extracting: D:\isolinux\f3.txt (782 bytes)
Extracting: D:\isolinux\f4.txt (417 bytes)
Extracting: D:\isolinux\f5.txt (806 bytes)
Extracting: D:\isolinux\f6.txt (1.2 KB)
Extracting: D:\isolinux\f7.txt (916 bytes)
Extracting: D:\isolinux\f8.txt (1 KB)
Extracting: D:\isolinux\f9.txt (765 bytes)
Extracting: D:\isolinux\fa.tr (3.6 KB)
Extracting: D:\isolinux\fi.hlp (7.0 KB)
Extracting: D:\isolinux\fi.tr (2.3 KB)
Extracting: D:\isolinux\fr.hlp (7.8 KB)
Extracting: D:\isolinux\fr.tr (2.4 KB)
Extracting: D:\isolinux\ga.tr (2.5 KB)
Extracting: D:\isolinux\gfxboot.c32 (10.3 KB)
Extracting: D:\isolinux\gfxboot.cfg (369 bytes)
Extracting: D:\isolinux\gl.hlp (7.4 KB)
Extracting: D:\isolinux\gl.tr (2.3 KB)
Extracting: D:\isolinux\he.hlp (9.2 KB)
Extracting: D:\isolinux\he.tr (3.3 KB)
Extracting: D:\isolinux\hi.hlp (0 bytes)
Extracting: D:\isolinux\hr.tr (2.3 KB)
Extracting: D:\isolinux\hu.hlp (7.6 KB)
Extracting: D:\isolinux\hu.tr (2.7 KB)
Extracting: D:\isolinux\id.hlp (6.9 KB)
Extracting: D:\isolinux\id.tr (2 KB)
Extracting: D:\isolinux\is.hlp (7.3 KB)
Extracting: D:\isolinux\is.tr (2.4 KB)
Extracting: D:\isolinux\isolinux.bin (40 KB)
Extracting: D:\isolinux\isolinux.cfg (178 bytes)
Extracting: D:\isolinux\it.hlp (7.0 KB)
Extracting: D:\isolinux\it.tr (2.3 KB)
Extracting: D:\isolinux\ja.hlp (9.2 KB)
Extracting: D:\isolinux\ja.tr (3.4 KB)
Extracting: D:\isolinux\ka.hlp (12.1 KB)
Extracting: D:\isolinux\ka.tr (5.3 KB)
Extracting: D:\isolinux\kk.hlp (12.8 KB)
Extracting: D:\isolinux\kk.tr (4.1 KB)
Extracting: D:\isolinux\km.hlp (18.2 KB)
Extracting: D:\isolinux\kn.tr (6.4 KB)
Extracting: D:\isolinux\ko.hlp (8.1 KB)
Extracting: D:\isolinux\ko.tr (2.7 KB)
Extracting: D:\isolinux\ku.tr (2.4 KB)
Extracting: D:\isolinux\langlist (232 bytes)
Extracting: D:\isolinux\ldlinux.c32 (113.8 KB)
Extracting: D:\isolinux\libcom32.c32 (178.3 KB)
Extracting: D:\isolinux\libutil.c32 (23.1 KB)
Extracting: D:\isolinux\lo.tr (5.5 KB)
Extracting: D:\isolinux\lt.hlp (7.2 KB)
Extracting: D:\isolinux\lt.tr (2.4 KB)
Extracting: D:\isolinux\lv.hlp (7.7 KB)
Extracting: D:\isolinux\lv.tr (2.5 KB)
Extracting: D:\isolinux\menu.cfg (437 bytes)
Extracting: D:\isolinux\mk.tr (3.6 KB)
Extracting: D:\isolinux\mr.tr (6.1 KB)
Extracting: D:\isolinux\nb.hlp (6.8 KB)
Extracting: D:\isolinux\nb.tr (2.2 KB)
Extracting: D:\isolinux\nl.hlp (7.0 KB)
Extracting: D:\isolinux\nl.tr (2.5 KB)
Extracting: D:\isolinux\nn.hlp (7 KB)
Extracting: D:\isolinux\nn.tr (2.2 KB)
Extracting: D:\isolinux\pl.hlp (7.4 KB)
Extracting: D:\isolinux\pl.tr (2.5 KB)
Extracting: D:\isolinux\prompt.cfg (175 bytes)
Extracting: D:\isolinux\pt.hlp (7.4 KB)
Extracting: D:\isolinux\pt.tr (2.3 KB)
Extracting: D:\isolinux\pt_BR.hlp (7.3 KB)
Extracting: D:\isolinux\pt_BR.tr (2.5 KB)
Extracting: D:\isolinux\ro.hlp (8.4 KB)
Extracting: D:\isolinux\ro.tr (2.5 KB)
Extracting: D:\isolinux\rqtxt.cfg (135 bytes)
Extracting: D:\isolinux\ru.hlp (11.8 KB)
Extracting: D:\isolinux\ru.tr (4.0 KB)
Extracting: D:\isolinux\si.hlp (13.7 KB)
Extracting: D:\isolinux\si.tr (6.2 KB)
Extracting: D:\isolinux\sk.hlp (7.4 KB)
Extracting: D:\isolinux\sk.tr (2.6 KB)
Extracting: D:\isolinux\sl.hlp (6.8 KB)
Extracting: D:\isolinux\sl.tr (2.3 KB)
Extracting: D:\isolinux\splash.pcx (13.8 KB)
Extracting: D:\isolinux\splash.png (16.9 KB)
Extracting: D:\isolinux\sq.hlp (7.8 KB)
Extracting: D:\isolinux\sq.tr (2.3 KB)
Extracting: D:\isolinux\sr.hlp (11.4 KB)
Extracting: D:\isolinux\sr.tr (4.3 KB)
Extracting: D:\isolinux\stdmenu.cfg (508 bytes)
Extracting: D:\isolinux\sv.hlp (7.1 KB)
Extracting: D:\isolinux\sv.tr (2.3 KB)
Extracting: D:\isolinux\te.tr (6.4 KB)
Extracting: D:\isolinux\th.hlp (12.8 KB)
Extracting: D:\isolinux\tl.tr (2.1 KB)
Extracting: D:\isolinux\tr.hlp (7.6 KB)
Extracting: D:\isolinux\tr.tr (2.4 KB)
Extracting: D:\isolinux\txt.cfg (671 bytes)
Extracting: D:\isolinux\ug.hlp (11.6 KB)
Extracting: D:\isolinux\uk.hlp (11.5 KB)
Extracting: D:\isolinux\uk.tr (4.1 KB)
Extracting: D:\isolinux\vesamenu.c32 (26.1 KB)
Extracting: D:\isolinux\vi.hlp (9.5 KB)
Extracting: D:\isolinux\vi.tr (3.0 KB)
Extracting: D:\isolinux\zh_CN.hlp (6.1 KB)
Extracting: D:\isolinux\zh_CN.tr (2.1 KB)
Extracting: D:\isolinux\zh_TW.hlp (6.1 KB)
Extracting: D:\isolinux\zh_TW.tr (2.3 KB)
Extracting: D:\md5sum.txt (21.0 KB)
Extracting: D:\pics\blue-lowerleft.png (294 bytes)
Extracting: D:\pics\blue-lowerright.png (266 bytes)
Extracting: D:\pics\blue-upperleft.png (280 bytes)
Extracting: D:\pics\blue-upperright.png (290 bytes)
Extracting: D:\pics\debian.jpg (8.2 KB)
Extracting: D:\pics\logo-50.jpg (3.9 KB)
Extracting: D:\pics\red-lowerleft.png (353 bytes)
Extracting: D:\pics\red-lowerright.png (299 bytes)
Extracting: D:\pics\red-upperleft.png (321 bytes)
Extracting: D:\pics\red-upperright.png (344 bytes)
Extracting: D:\pool\main\b\b43-fwcutter\b43-fwcutter_019-2_amd64.deb (22.8 KB)
Extracting: D:\pool\main\d\dkms\dkms_2.2.0.3-2ubuntu11.5_all.deb (64.8 KB)
Extracting: D:\pool\main\g\glibc\libc6-i386_2.23-0ubuntu10_amd64.deb (2.2 MB)
Extracting: D:\pool\main\g\grub\grub_0.97-29ubuntu68_amd64.deb (191.5 KB)
Extracting: D:\pool\main\g\grub2\grub-efi_2.02~beta2-36ubuntu3.17_amd64.deb (2.5 KB)
Extracting: D:\pool\main\g\grub2\grub-efi-amd64_2.02~beta2-36ubuntu3.17_amd64.deb (64.3 KB)
Extracting: D:\pool\main\g\grub2\grub-efi-amd64-bin_2.02~beta2-36ubuntu3.17_amd64.deb (646.0 KB)
Extracting: D:\pool\main\g\grub2-signed\grub-efi-amd64-signed_1.66.17+2.02~beta2-36ubuntu3.17_amd64.deb (289.7 KB)
Extracting: D:\pool\main\i\intel-microcode\intel-microcode_3.20180108.0+really20170707ubuntu16.04.1_amd64.deb (962.1 KB)
Extracting: D:\pool\main\i\iucode-tool\iucode-tool_1.5.1-1ubuntu0.1_amd64.deb (33 KB)
Extracting: D:\pool\main\l\lupin\lupin-support_0.57_amd64.deb (13.6 KB)
Extracting: D:\pool\main\m\mouseemu\mouseemu_0.16-0ubuntu9_amd64.deb (17.6 KB)
Extracting: D:\pool\main\s\setserial\setserial_2.17-49_amd64.deb (35.3 KB)
Extracting: D:\pool\main\s\shim\shim_13-0ubuntu2_amd64.deb (430.1 KB)
Extracting: D:\pool\main\s\shim-signed\shim-signed_1.33.1~16.04.1+13-0ubuntu2_amd64.deb (309.1 KB)
Extracting: D:\pool\main\u\ubiquity\oem-config_2.21.63.6_all.deb (13.7 KB)
Extracting: D:\pool\main\u\ubiquity\oem-config-gtk_2.21.63.6_all.deb (4.1 KB)
Extracting: D:\pool\main\u\ubiquity-slideshow-ubuntu\oem-config-slideshow-ubuntu_113.1_all.deb (827.3 KB)
Extracting: D:\pool\main\u\user-setup\user-setup_1.63ubuntu4_all.deb (187.5 KB)
Extracting: D:\pool\main\w\wvdial\wvdial_1.61-4.1_amd64.deb (82.2 KB)
Extracting: D:\pool\main\w\wvstreams\libuniconf4.6_4.6.1-7_amd64.deb (126.4 KB)
Extracting: D:\pool\main\w\wvstreams\libwvstreams4.6-base_4.6.1-7_amd64.deb (197.8 KB)
Extracting: D:\pool\main\w\wvstreams\libwvstreams4.6-extras_4.6.1-7_amd64.deb (431.5 KB)
Extracting: D:\pool\restricted\b\bcmwl\bcmwl-kernel-source_6.30.223.271+bdcom-0ubuntu1~1.2_amd64.deb (1.5 MB)
Extracting: D:\preseed\cli.seed (266 bytes)
Extracting: D:\preseed\ltsp.seed (551 bytes)
Extracting: D:\preseed\ubuntu.seed (514 bytes)
Extracting: D:\README.diskdefines (232 bytes)
Extracting: D:\ubuntu (0 bytes)
  Ignoring Rock Ridge symbolic link to '.'
Created: D:\syslinux.cfg
Finalizing, please wait...
Created: D:autorun.inf
Created: D:autorun.ico

Found USB 2.0 device 'SanDisk Cruzer Glide USB Device' (0781:5575)
Using autorun.inf label for drive D: 'Ubuntu 16.04.4 LTS amd64'
1 device found
Disk type: Removable, Disk size: 64GB, Sector size: 512 bytes
Cylinders: 7645, Tracks per cylinder: 255, Sectors per track: 63
Partition type: MBR, NB Partitions: 1
Disk ID: 0x21857AAB
Drive has a Syslinux Master Boot Record
Partition 1:
  Type: FAT32 LBA (0x0c)
  Size: 58.6 GB (62888345600 bytes)
  Start Sector: 2048, Boot: Yes
Found USB 2.0 device 'SanDisk Cruzer Glide USB Device' (0781:5575)
Using autorun.inf label for drive D: 'Ubuntu 16.04.4 LTS amd64'
1 device found
Disk type: Removable, Disk size: 64GB, Sector size: 512 bytes
Cylinders: 7645, Tracks per cylinder: 255, Sectors per track: 63
Partition type: MBR, NB Partitions: 1
Disk ID: 0x21857AAB
Drive has a Syslinux Master Boot Record
Partition 1:
  Type: FAT32 LBA (0x0c)
  Size: 58.6 GB (62888345600 bytes)
  Start Sector: 2048, Boot: Yes
Found USB 2.0 device 'SanDisk Cruzer Glide USB Device' (0781:5575)
Using autorun.inf label for drive D: 'Ubuntu 16.04.4 LTS amd64'
1 device found
Disk type: Removable, Disk size: 64GB, Sector size: 512 bytes
Cylinders: 7645, Tracks per cylinder: 255, Sectors per track: 63
Partition type: MBR, NB Partitions: 1
Disk ID: 0x21857AAB
Drive has a Syslinux Master Boot Record
Partition 1:
  Type: FAT32 LBA (0x0c)
  Size: 58.6 GB (62888345600 bytes)
  Start Sector: 2048, Boot: Yes

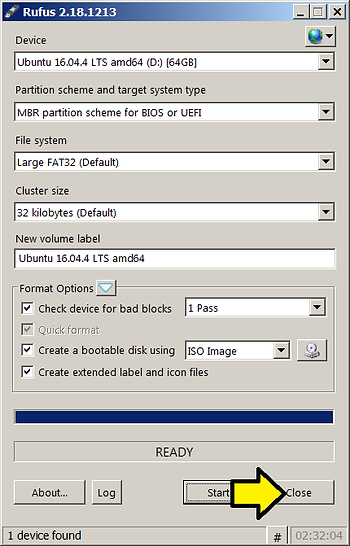

12. Close Rufus.

close_rufus_14

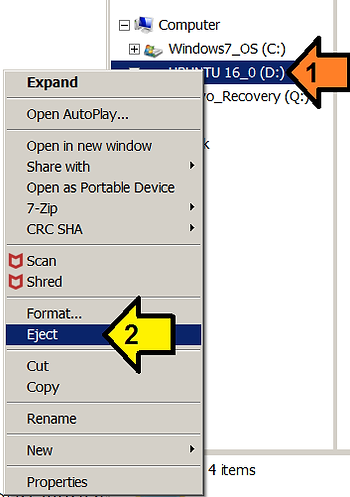

13. Open Windows Explorer, (1) right-click on the drive and (2) click Eject. Leave the USB stick in.

eject_drive_15

14. Note how to enter your BIOS or boot from another boot media*, save your work, and reboot your computer (get ready to press F12 when you see the Lenovo screen).

*On the T460 you “Restart the computer. When the Lenovo logo is displayed, press F1 to start the ThinkPad Setup program.” (from the T460 User’s Guide).

*You can also press F12 to enter the boot menu. The next instructions use this method.

15. At the Lenovo screen press F12.

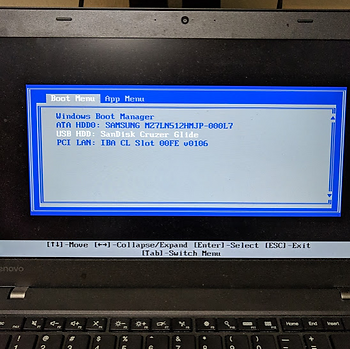

16. Select USB HDD: SanDisk Cruzer Glide to with the arrow keys and hit Enter.

select_usb_from_boot_menu_16

17. Select Try Ubuntu.

select_try_ubuntu_17

Ubuntu will boot up.

18. When your done, simply power off Ubuntu. Remember, none of your changes will persist.

Specific Hardware and Software Used in this Example

  • Ubuntu 16.04.4

  • USB Stick

  • SanDisk Cruzer Glide 64GB at link

  • Markings

  • SDC260-064G

  • BN170625695B

  • KCC-REM-TAD-SDCZ60 D33724

  • Computer

  • Lenovo T460

  • Marking and Specification Overview at link

  • OS

  • Microsoft Windows 7 Professional Version: 6.1.7601 Service Pack 1 Build 7601

References
