Install Ubuntu on an External Hard Drive

ubuntu_logo_1

This post shows how to install Ubuntu 16.04 on an external hard drive.

Specifics

Computer

T460 (spec)
External hard drive
500 GB Samsung Portable SSD T5 with USB 3.1 Gen 2 (Up to 10Gbps) Model Code: MU - PA500B/AM
$159.99 at Amazon
Ubuntu 16.04.4

Prerequisites

The tutorial uses the USB stick created in Install Ubuntu 16.04 on a USB Stick from Windows.
You should note how much RAM your computer has.

Note

Some of the items listed are specific to the BIOS running on the T460. You may need to look up how to do the same or similar steps using your BIOS.

Steps

1. Connect the external hard drive and the USB stick.

connect_external_hard_drive_and_usb_stick_2

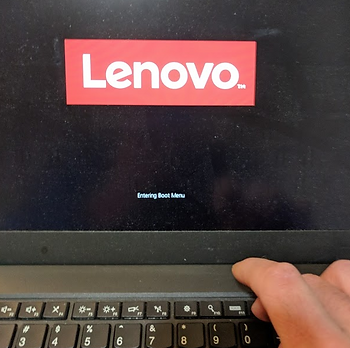

2. Prepare to press F12 to enter the boot menu. Boot and press F12 at the Lenovo screen.

f12_to_enter_boot_screen_3_27

3. Select USB HDD.

usb_hdd_4

4. Click Install Ubuntu.

install_ubuntu_5

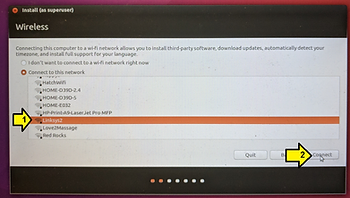

5. (1) Select your WiFi and (2) click Connect.

select_wifi_6

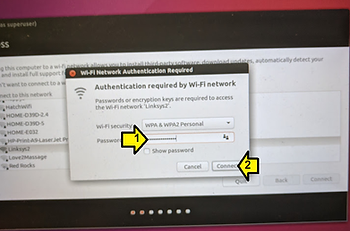

6. (1) Enter your password and (2) click Connect.

enter_wifi_password_7

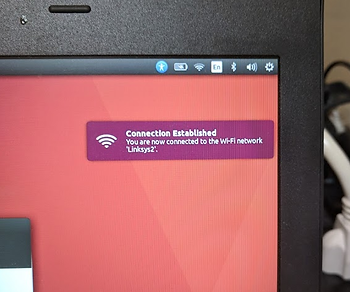

7. Make sure your connection has been established.

ensure_connection_has_been_established_8

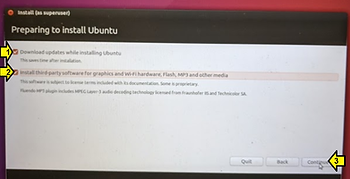

8. (1) Click the Download updates while installing Ubuntu checkbox, (2) the Install third-party software for graphics and WiFi hardware, Flash, MP3 and other media checkbox and (3) click Continue.

select_install_third_party_software_9

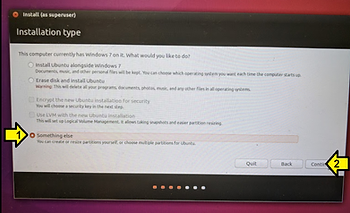

9. On the Installation type screen click the (1) Something else radio button and (2) click Continue.

select_something_else_radio_button_10

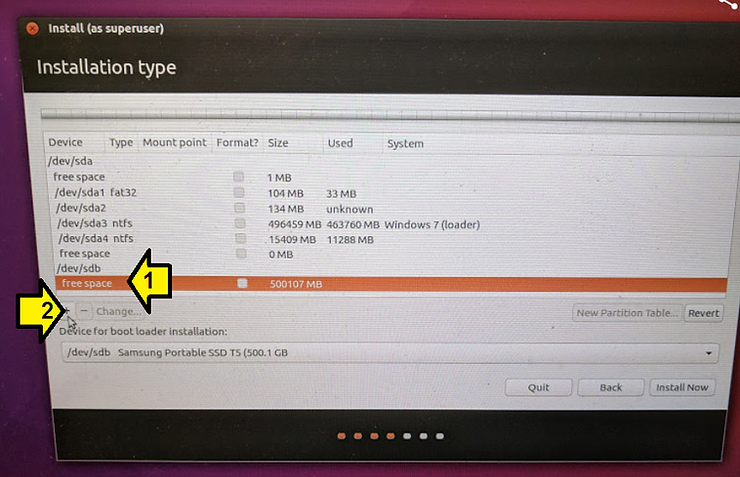

10. (1) Select freespace under /dev/sdb and (2) click +, note the amount of space (500107 MB in this case).

select_freespace_11

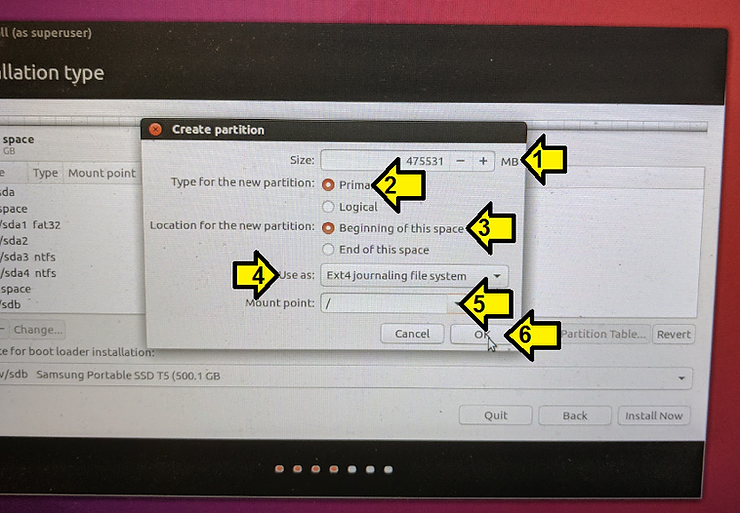

11. On the Create partition screen, subtract 2 times the amount of RAM you have from the value in size. The T460 I have has 12 GB of memory. So I subtract 24 GB from 500107 MB. 24 GB is 24 GB * (1024 MB / 1 GB) or 24576 MBs. So I (1) enter in 475531 MB (500107-24576) for Size. Make sure (2) Type for the new partition is Primary, (3) Location for the new partition is Beginning of this space, (4) Use as is set to Ext4 journaling file system and the (5) Mount point is /. Click (6) Okay.

set_up_new_partition_12

12. Again (1) select free space then (2) +.

select_free_space_again_13

13. (1) Put the number of MB’s left over in the Size field, 24582 in this case, (2) ensure Logical is clicked for the Type for the new partition, (3) ensure the Location for the new partition is set to Beginning of this space and (3) select swap area for Use as.

add_another_partition_14

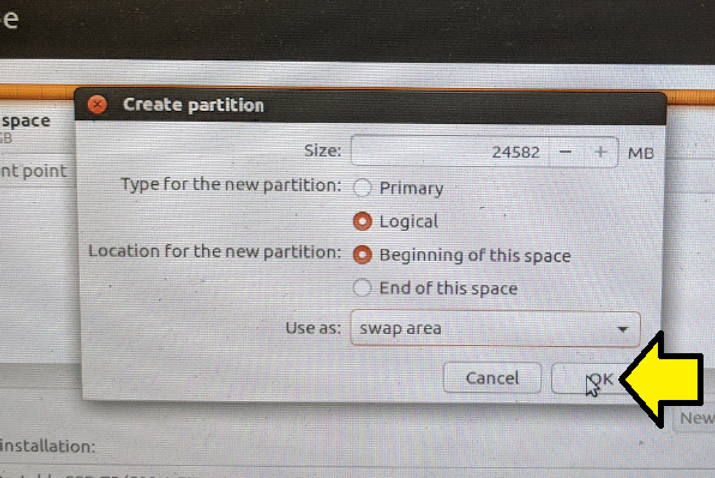

14. Click OK.

confirm_new_partition_15

14. (1) select /dev/sdb, (2) select /dev/sdb Samsung Portable SSD T5 (500.1 GB and (3) click Install Now.

iinstall_now_onto_partition_16

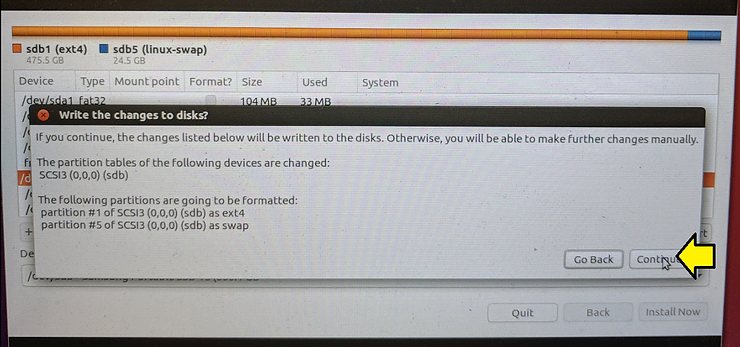

15. Click Continue to write the changes to disk.

write_changes_to_disk_17

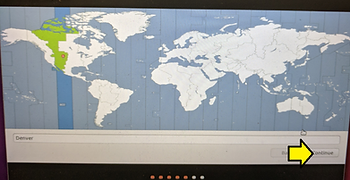

16. After this you select your timezone and click Continue.

select_timezone_18

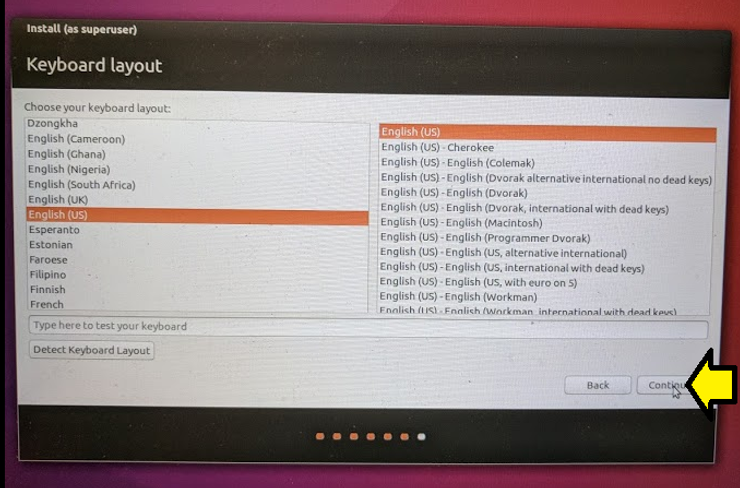

17. Your select your keyboard and click Continue.

select_keyboard_layout_19

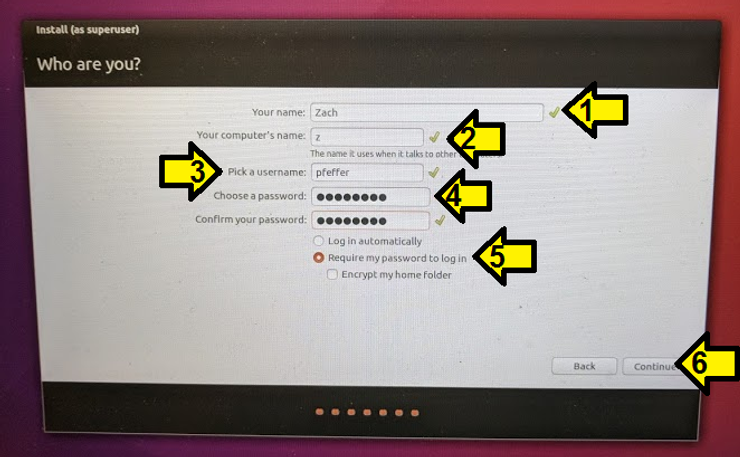

18. (1) enter in Your name, (2) Your computer’s name, (3) Pick a username, (4) Choose a password and confirm it, (5) click Require my password to log in and (6) click Continue.

set_up_ubuntu_personal_info_20

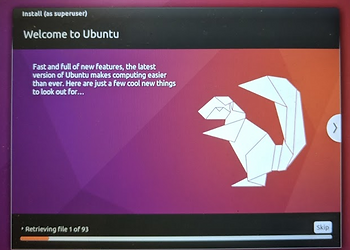

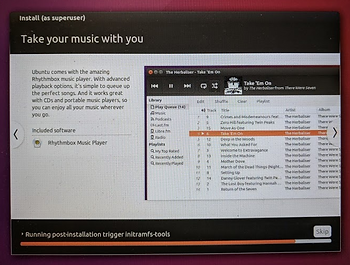

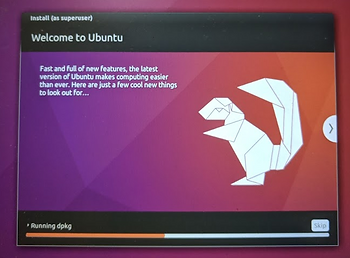

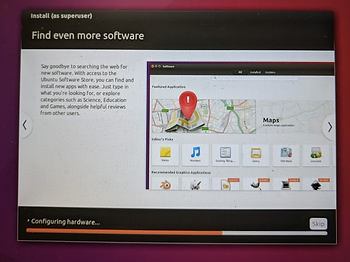

19. You’ll see a bunch of info screens now (this is just a sample, there are more screens than this):

info_screen_1_21

info_screen_2_22

info_screen_3_23

info_screen_4_24

info_screen_5_25

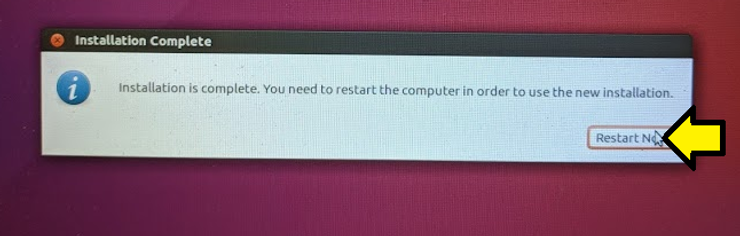

20. Click Restart Now.

click_restart_now_26

21. Let the computer will boot up into Windows.

22. Remove the USB stick.

23. Prepare to press F12. Restart the computer and press F12 at the Lenovo screen:

f12_to_enter_boot_screen_3_27

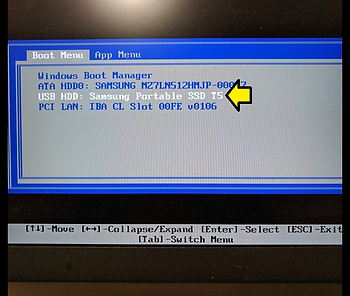

24. Select the USB HDD: Samsung Portable SSD T5 and press Enter.

select_usb_hdd_in_boot_menu_27

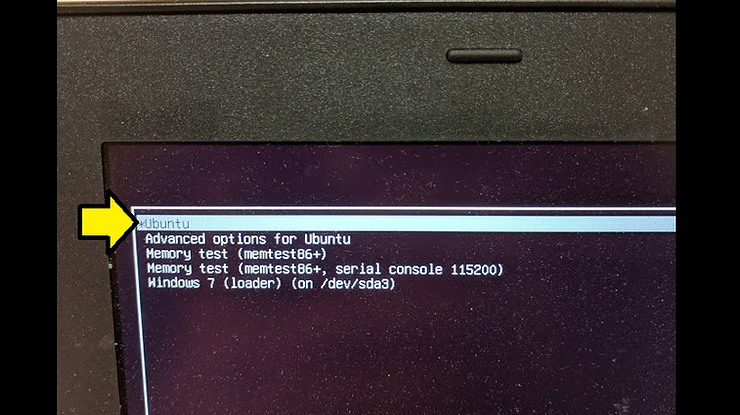

25. Select *Ubuntu and press Enter (or wait a few seconds)

select_ubuntu_28

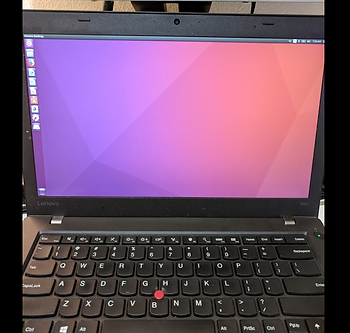

26. Wait a few more seconds and Voilà Ubuntu has booted on your external hard drive.

ubuntu_booted_successfully_29

References

Ubuntu logo from link.

Answers to Questions

Does this SSD work well ?

The one I used worked pretty well. I used the set up for a week and only had 1 time when the system “froze” due to the drive. I restarted and everything worked.

Does is show good speed/performance on Linux ?

I did not notice that it was slower or faster than normal.

I am going to use it via usb-c (thunderbolt). What would you say about it ?

Sounds like a good plan. From: https://thunderbolttechnology.net/tech/faq it looks like you should expect 2x the performance.

Is the speed comparable to regular internal SSD ?

On my laptop (http://www.zachpfeffer.com/single-post/2017/01/28/New-T460-System-Information)

I have a:

Hard Drive: 512GB Solid State Drive, SATA3 (MZ7LN512HMJP-000)

Comparing SATA3 to Thunderbolt, this posts suggests they would have similar performance:

http://tips.tinyiron.net/direct-sata3-vs-thunderbolt-vs-usb3-vs-usb2-how-do-they-stack-up/
