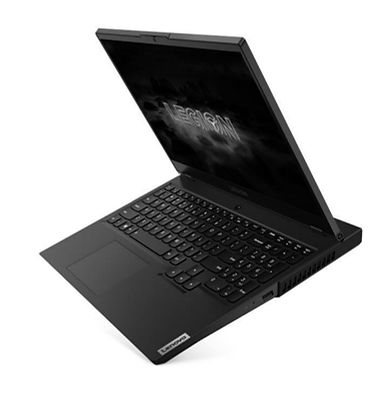

Lenovo Legion 5 15IMH05H Part Number 81Y6000EUS Factory ID JVHFC1 GeForce RTX 2060 Intel HM470

This post lists original and saved versions of Lenovo Legion 5 15IMH05H Part Number 81Y6000EUS Factory ID JVHFC1 GeForce RTX 2060 Intel HM470 documentation.

Lenovo Legion 5 15IMH05H Part Number 81Y6000EUS

Specification

• https://psref.lenovo.com/product/legion/lenovo_legion_5_15imh05h?tab=spec

• https://drive.google.com/file/d/1ksVnIAe9Jayvt0znyqVD7g51OsGhsu_f/view?usp=sharing

Setup Guide

• https://download.lenovo.com/consumer/mobiles_pub/legion_5_15_17_sg_en_da_fi_nb_sv_202004.pdf

• https://drive.google.com/file/d/1l9NKiD51GHxLyzZqJU46NAUVLPTSS30p/view?usp=sharing

Lenovo Legion 5 15IMH05H Hardware Maintenance Manual

• https://download.lenovo.com/consumer/mobiles_pub/lenovo_legion_5_lenovo_legion_5p_hmm_v1.1.pdf

• https://drive.google.com/file/d/1kn1GA3lyiPwbYoYqKm-1PiztQ9qVaFpL/view?usp=sharing

Lenovo Legion 5 15IMH05H PSREF (Product Specifications Reference)

• https://psref.lenovo.com/syspool/Sys/PDF/Legion/Lenovo_Legion_5_15IMH05H/Lenovo_Legion_5_15IMH05H_Spec.pdf

• https://drive.google.com/file/d/1ksVnIAe9Jayvt0znyqVD7g51OsGhsu_f/view?usp=sharing

Lenovo_Legion_5_15IMH05H multi model 202404071148

• https://psref.lenovo.com/product/legion/lenovo_legion_5_15imh05h?tab=spec

• https://docs.google.com/spreadsheets/d/1l-lQ0LnH9fvMw2dtaxPlrHLmR27XSABV/edit?usp=sharing&ouid=104422661029399872488&rtpof=true&sd=true

Lenovo Legion 5 15IMH05H 81Y6000EUS PSREF (Product Specifications Reference)

• https://psref.lenovo.com/Detail/Legion/lenovo_legion_5_15imh05h?M=81Y6000EUS

• https://psref.lenovo.com/syspool/TempFile/cache/C90F3578-FE38-4B64-9518-B80D5BDE155E/Lenovo_Legion_5_15IMH05H_81Y6000EUS.pdf

• https://drive.google.com/file/d/1l1t5VXKPTrja15ty37DHZ0DeAQ-sdtXA/view?usp=sharing

Lenovo Legion 5 Spec Table

• https://docs.google.com/spreadsheets/d/1l2Axwj40-FWLD99cOyQ3bzFE_RZpqBH6/edit?usp=sharing&ouid=104422661029399872488&rtpof=true&sd=true

Lenovo Legion 5 15IMH05H 81Y6000EUS Specification

PERFORMANCE

Processor

• Intel® Core™ i7-10750H (6C / 12T, 2.6 / 5.0GHz, 12MB)

Graphics

• NVIDIA® GeForce RTX™ 2060 6GB GDDR6

Chipset

• Intel® HM470

Memory

• 2x 8GB SO-DIMM DDR4-2933

Memory Slots

• Two DDR4 SO-DIMM slots, dual-channel capable

Max Memory

• Up to 32GB DDR4-2933 offering

Storage

• 1TB SSD M.2 2280 PCIe® 3.0x4 NVMe® + Empty HDD Bay

Storage Support

• HDD/SSD mode: up to two drives, 1x 2.5” HDD + 1x M.2 SSD

• 2.5” HDD up to 2TB

• M.2 2242 SSD up to 512GB

• M.2 2280 SSD up to 1TB

Storage Slot

• HDD/SSD mode: one 2.5” drive slot + one M.2 slot

• One 2.5” drive slot, supports 2.5” SATA HDD

• One M.2 2280 PCIe® Gen 3x4 slot, supports M.2 2242/2280 SSD

Card Reader

• None

Optical

• None

Audio Chip

• High Definition (HD) Audio, Realtek® ALC3287 codec

Speakers

• Stereo speakers, 2W x2, Dolby® Atmos® for gaming, Harman Speakers

Camera

• 720p with Privacy Shutter

Microphone

• 2x, Array

Battery

• Integrated 60Wh

Power Adapter

• 230W Slim Tip (3-pin)

DESIGN

Display

• 15.6” FHD (1920x1080) IPS 500nits Anti-glare, 240Hz, 100%

• sRGB, Dolby® Vision®, DC dimmer

Touchscreen

• None

Keyboard

• White Backlit, English (US)

Touchpad

• Buttonless Mylar® surface multi-touch touchpad

Case Color

• Phantom Black

Surface Treatment

• Painting

Case Material

• PC + ABS (Top), PC + ABS (Bottom)

Dimensions (WxDxH)

• 363.06 x 259.61 x 23.57-26.1 mm (14.3 x 10.22 x 0.93-1.03 inches)

Weight

• 2.46 kg (5.42 lbs)

SOFTWARE

Operating System

• Windows® 10 Home 64, English

Bundled Software

• Office Trial

CONNECTIVITY

Ethernet

• 100/1000M

• WLAN + Bluetooth®

• Wi-Fi® 6 11ax, 2x2 + BT5.0

Standard Ports

• 1x USB-C® 3.2 Gen 1 (support data transfer and DisplayPort™ 1.2)

• 1x USB 3.2 Gen 1 (Always On)

• 3x USB 3.2 Gen 1

• 1x HDMI® 2.0

• 1x Headphone / microphone combo jack (3.5mm)

• 1x Ethernet (RJ-45)

• 1x Power connector

SECURITY & PRIVACY

Security Chip

• Firmware TPM 2.0

Fingerprint Reader

• None

Physical Locks

• Kensington® Security Slot™

Other Security

• Camera privacy shutter

SERVICE

Base Warranty

• 1-year, Depot

Included Upgrade

• 1Y Legion Ultimate Support IdeaPad® 5 embedded (5WS0Y99554)

ACCESSORIES

Bundled Accessories

• None

CERTIFICATIONS

Green Certifications

• ErP Lot 3

• RoHS compliant

MODEL

• TopSeller :

• No Announce Date : 2020-07-14

• EAN / UPC / JAN : 194778313919

• End of Support : 2026-05-27

GeForce RTX Graphics Cards

• https://www.nvidia.com/en-us/geforce/news/gfecnt/nvidia-geforce-rtx-2060/

Compare GeForce RTX 20 Series Specs

• https://www.nvidia.com/en-us/geforce/graphics-cards/compare/?section=compare-20

• https://docs.google.com/spreadsheets/d/1K39u0E7kRojsyWBZozazS4hFga9RDA3KufaN5q9KBPQ/edit?usp=sharing

NVIDIA Turing GPU Architecture

• https://images.nvidia.com/aem-dam/en-zz/Solutions/design-visualization/technologies/turing-architecture/NVIDIA-Turing-Architecture-Whitepaper.pdf

• https://drive.google.com/file/d/1kkbHzvqPgswB-4D6ELuLfscy5y6Q_r60/view?usp=sharing

Intel® HM470 Chipset

• https://www.intel.com/content/www/us/en/products/docs/processors/core/core-technical-resources.html

Intel® HM470 Specifications

• https://drive.google.com/file/d/1lQlClCL6vO8V-gNblhfNLwXBPbvnkTjY/view?usp=sharing

Intel® HM470 Ordering & Compliance

• https://drive.google.com/file/d/1lGFYzZmdUm4BWaxMyppX07RfSba0sp_h/view?usp=sharing

Intel® HM470 Compatible Products

• https://drive.google.com/file/d/1lPw6y6aZhDbZxeFhJF-XNIFfadi4kzQG/view?usp=sharing

• https://www.intel.com/content/www/us/en/products/sku/203697/intel-hm470-chipset/specifications.html
