This post presents an unboxing of the $199 machineQ Starter Kit.

Overview of the Kit

From [link] (login required):

Quickly prototype your IoT ideas using the machineQ Starter Kit. Included with the machineQ Starter Kit is:

1 MultiConnect Conduit AP gateway

1 Dev Kit - Spark OR ST LoRa Dev Kit

3 Months Free machineQ Software License

The MultiConnect® Conduit™ Access Point provides deep in-building connectivity for network operators and enterprises connecting IoT assets using the LoRaWAN™ protocol.

The Spark is a plug-and-play development kit designed as a USB module. It’s perfect for those looking to rapidly prototype of IoT solutions. It comes with a Dev Board and four different Grove sensors that measure temperature, sound, distance, and orientation & speed.

ST LoRa Dev Kit is a versatile and quick-to-market prototyping option for your next innovative solution. Combined with the recommended expansion board, the ST LoRa Dev Kit is ideal for the more advanced embedded developer who may be building IoT sensors from scratch.

Name / Part Number / [Link] Summary

  • STM32 LoRa and Sigfox Discovery kit / B-L072Z-LRWAN1 / [link]

  • Motion MEMS and environmental sensor expansion board for the STM32 Nucleo / X-NUCLEO-IKS01A2 / [link]

  • Multi-Tech MultiConnect® Conduit™ Access Point (LoRa gateway) / MTCAP-915-001L-COM [link]

Unboxing

The Box

box_top_2

box_side_3

Opened

machineQ.com/develop

box_opened_4

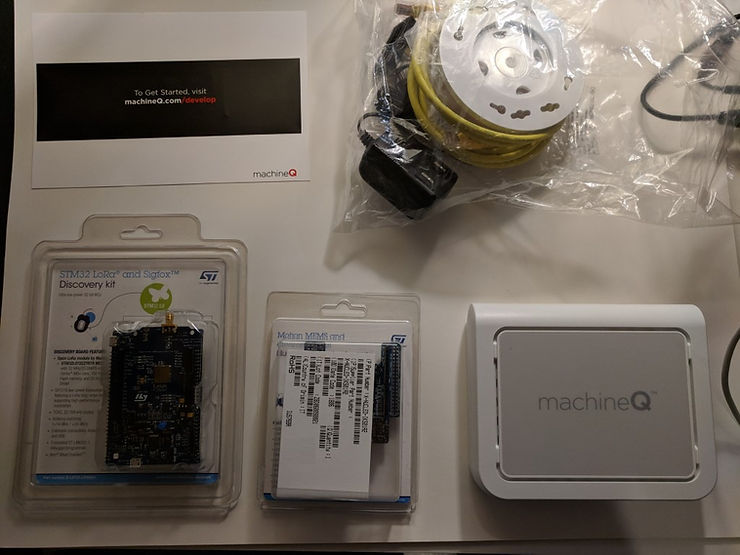

Contents

box_contents_5

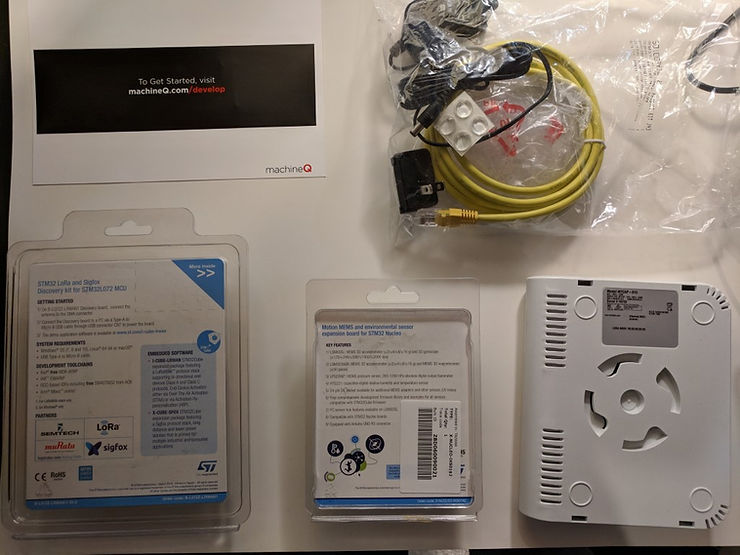

…flipped

box_contents_flipped_6

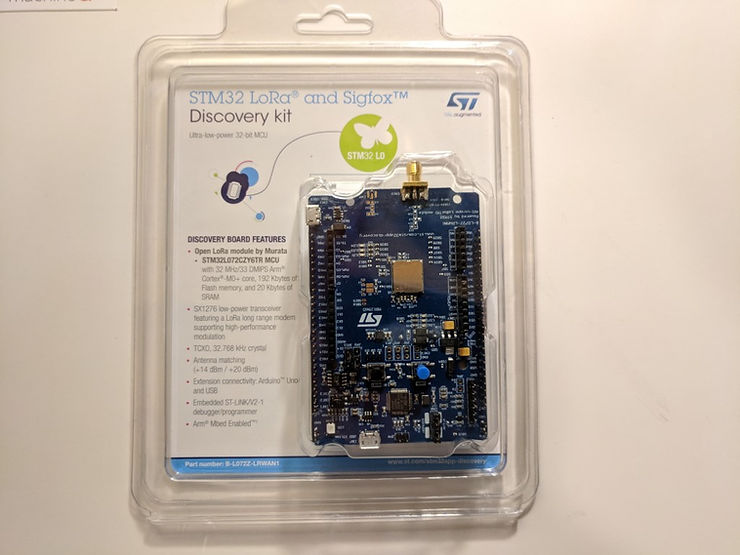

The STM32 LoRa and Sigfox discovery kit

www.st.com/stm32app-discovery

Part number: B-L072Z-LRWAN1 [link]

stm32_lora_and_sigfox_discovery_kit_7

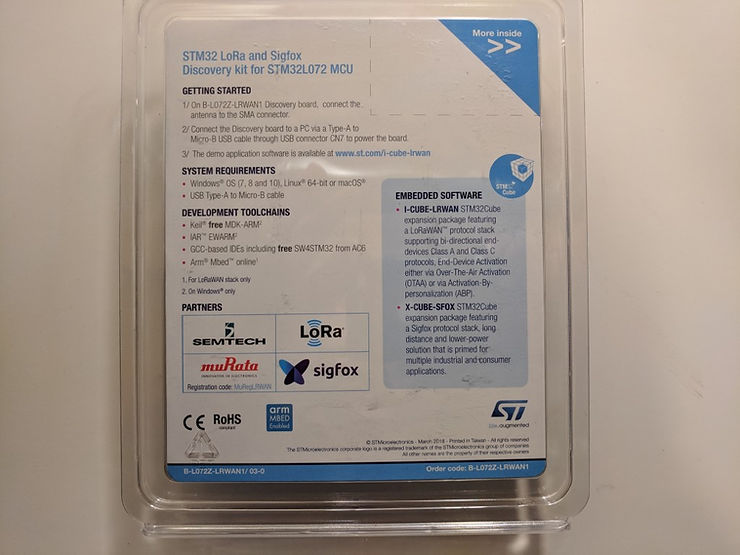

…flipped:

discovery_kit_flipped_8

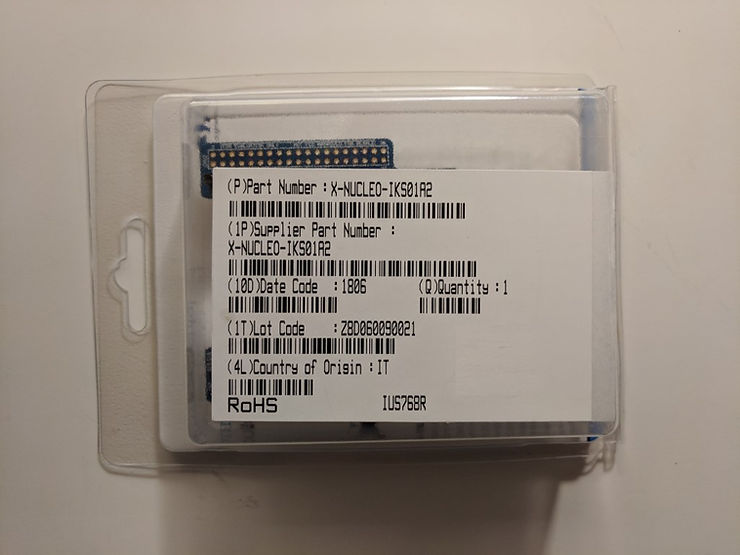

The motion MEMS and environmental sensor expansion board for the STM32 Nucleo

Part Number: X-NUCLEO-IKS01A2 [link]

environmental_sensor_expansion_board_9

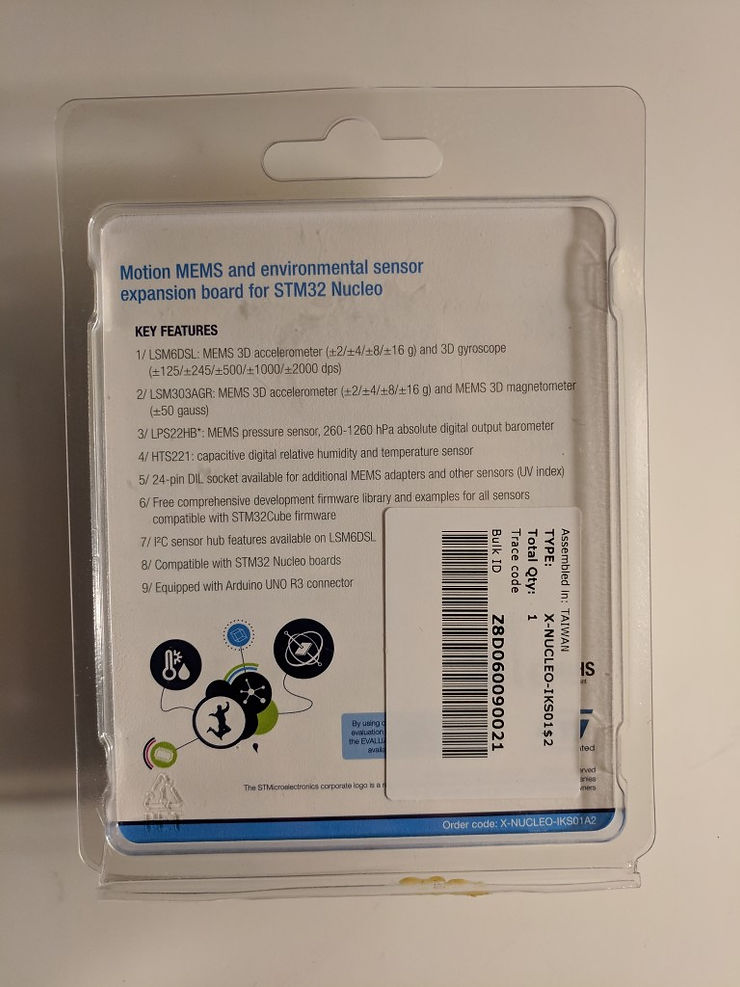

…flipped:

environmental_sensor_expansion_board_flipped_10

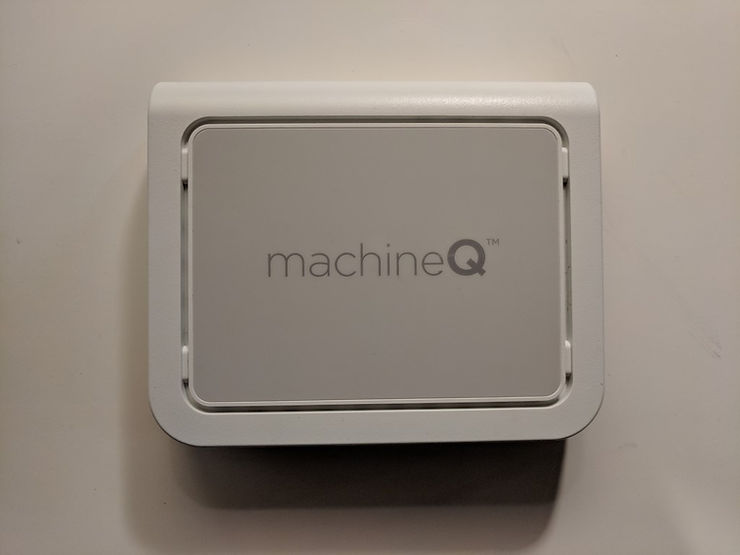

The Multi-Tech MultiConnect® Conduit™ Access Point [about][link]

Model: MTCAP-915

B/O: -001L-COM

Order P/N: MTCAP-915-001L-COM [link]

SKU #:92507511LF

machineq_multiconnect_conduit_11

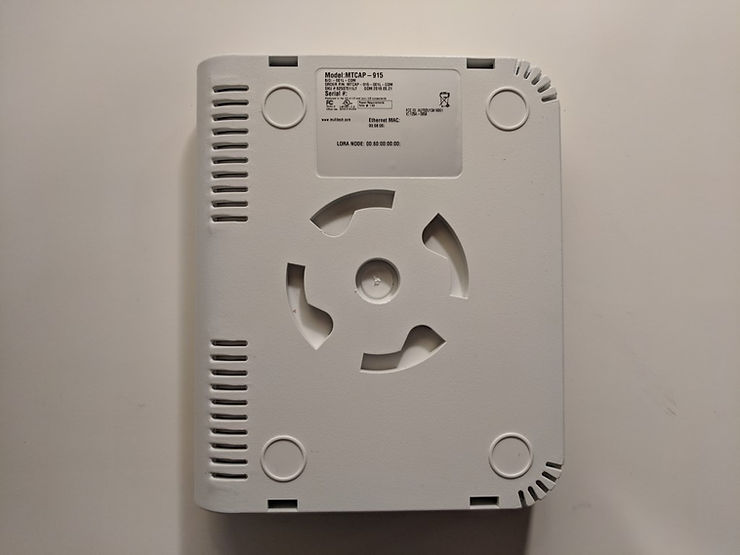

…and back

back_of_conduit_12

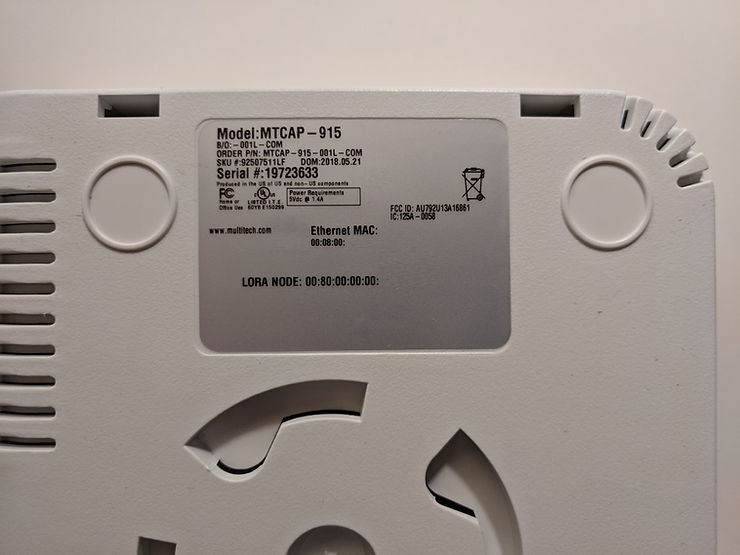

…magnified:

conduit_magnified_13

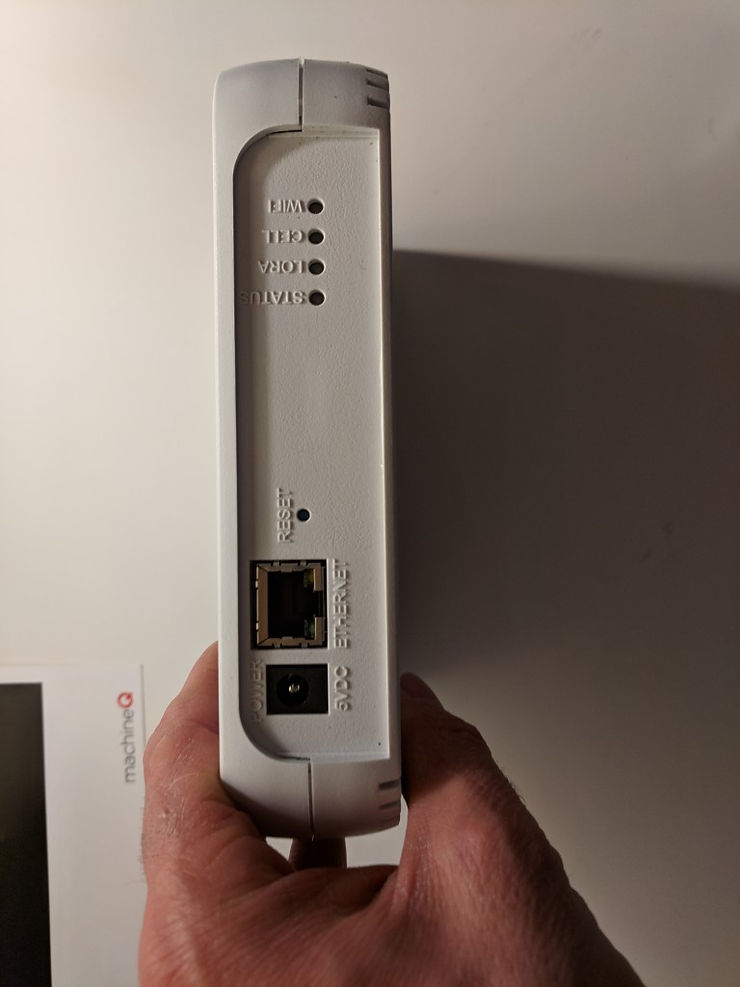

…and side:

side_of_conduit_14

The Rest

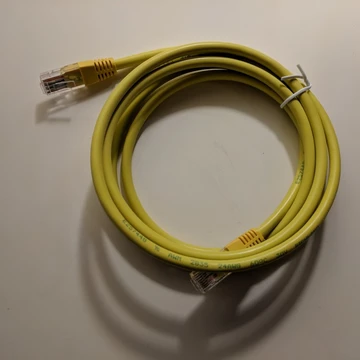

  • RJ45 CAT5 Ethernet cable

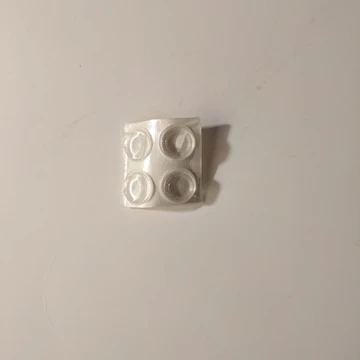

  • Round clear bumpon set

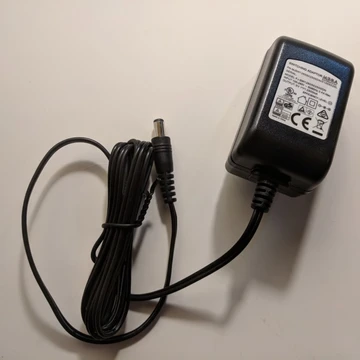

  • Switching Adapter from Mega Electronics International PN: MJSW1260502500DN/01005020L

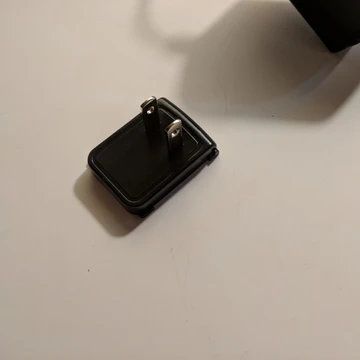

  • 5V 2.5A Change Blade

ethernet_cable_15

round_bumpon_set_16

switching_adapter_17

change_blade_18
