Save a VirtualBox VM

oracle_virtualbox_logo_1

This post show you how to save the images and state of a virtual machine managed by Oracle’s VM VirtualBox Manager.

Versions of Software and OS’s Used in this Post

  • Windows 7 Professional SP1

  • Version 5.1.30 r118389 (Qt5.6.2)

  • See [link] for the hardware used

Steps

Run Oracle VM VirtualBox Manager

(1) Click Start, (2) Type Oracle VM VirtualBox into the search term and (3) click on Oracle VM VirtualBox

click_oracle_vm_virtualbox_2

Create a folder for the images

Run Windows Explorer

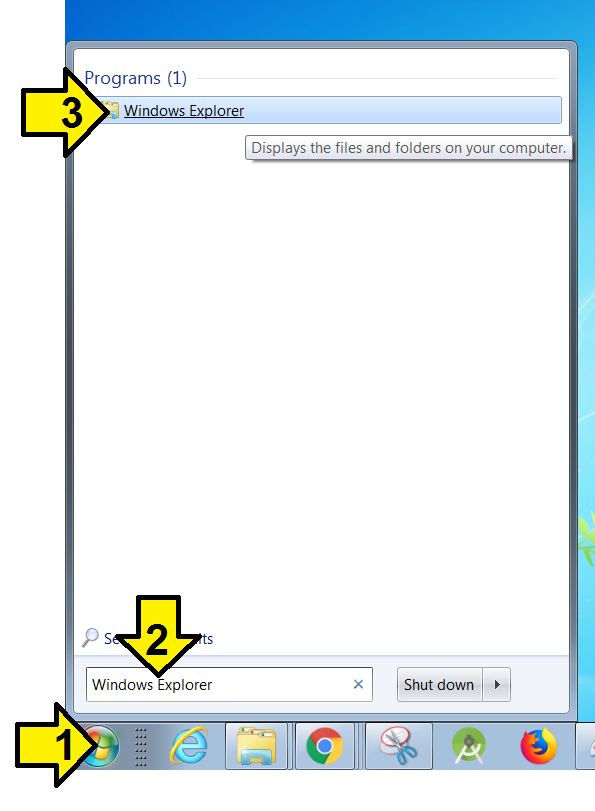

(1) click the Windows icon, (2) type Windows Explorer into the search box and (3) click on Windows Explorer.

click_windows_explorer_3

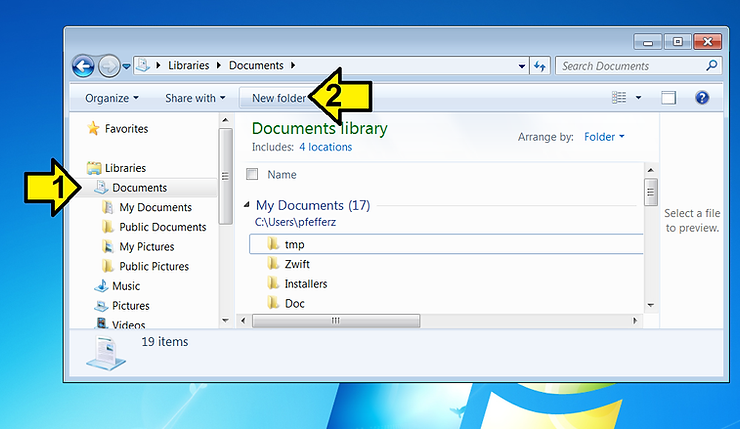

(1) Click Documents then (2) New Folder

documents_new_folder_4

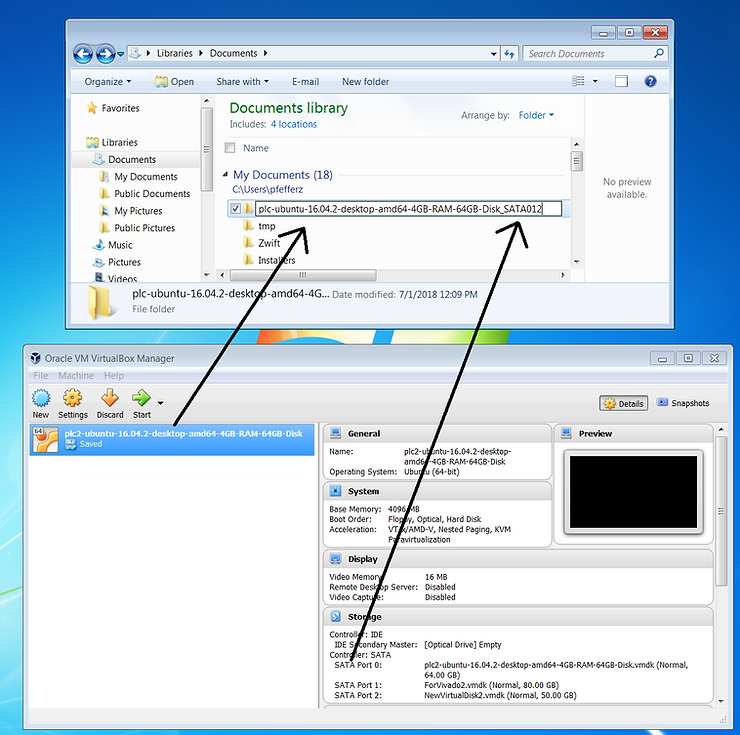

Name the folder the name of the virtual machine (VM), followed by an underscore and how many disk interfaces (SATA0, SATA1, SATA2)

name_folder_5

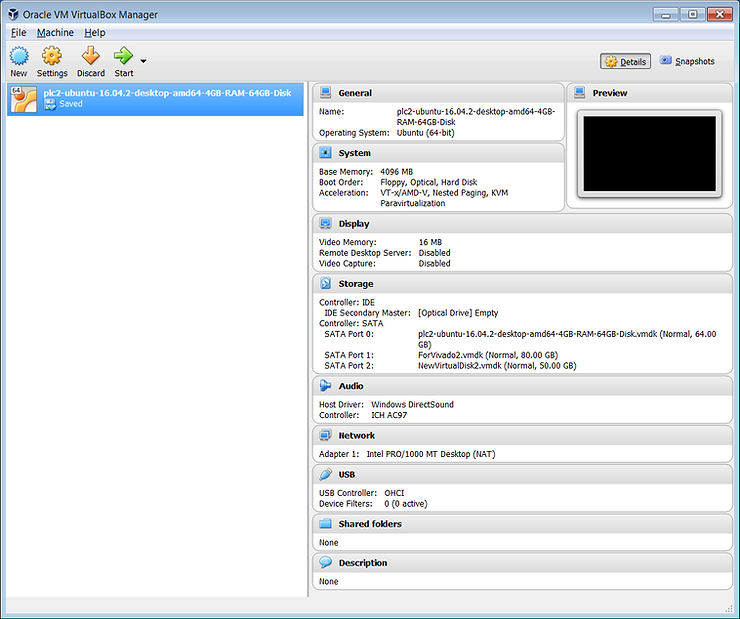

Save a screenshot of the virtual machine’s Details into the folder

(1) Select the window and press Alt + PrtSc on your computer, (2) Open Paint (Windows > Paint), (3) type Control-Z to paste, then click Crop.

save_screenshot_6

Record the version of VirtualBox you used

(1) in Oracle VM VirtualBox Manager click Help then (2) click About VirtualBox…

about_virtualbox_7

Click PrtSc and save the screen to the folder you created.

save_screen_to_folder_8

Save the installer you used to the folder, in this case VirtualBox-5.1.30-118389-Win.exe. If you don’t have it, find the installer needed to install the version of VirtualBox you have, then copy it from https://download.virtualbox.org/virtualbox/5.1.30/ or related.

Find each disk image and save it

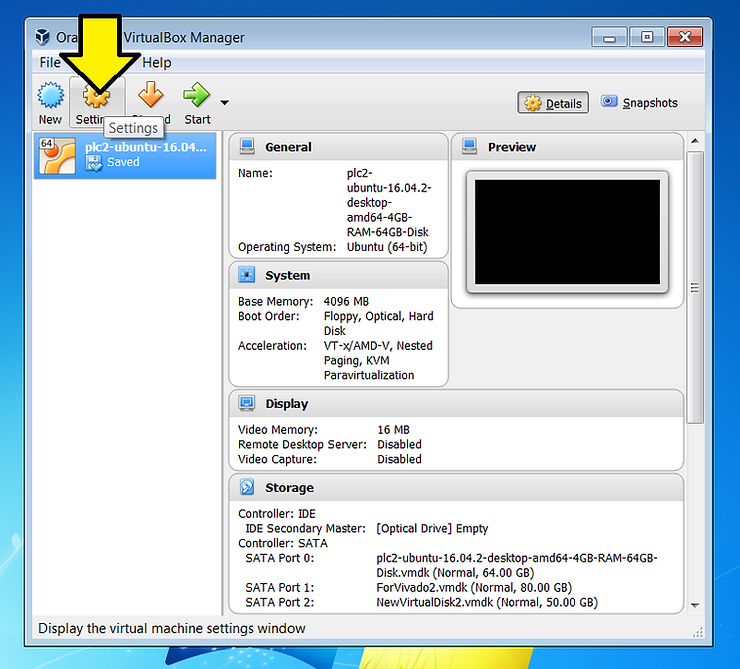

Click on Settings in VirtualBox Manager

click_settings_virtualbox_9

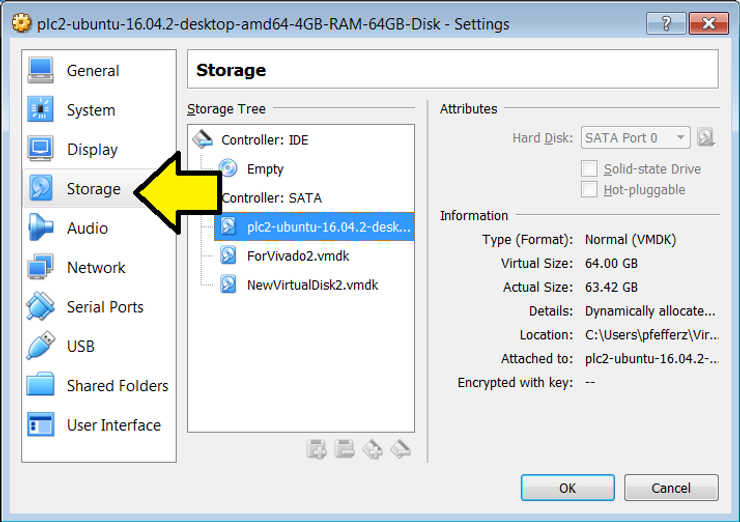

Click on Storage

click_storage_10

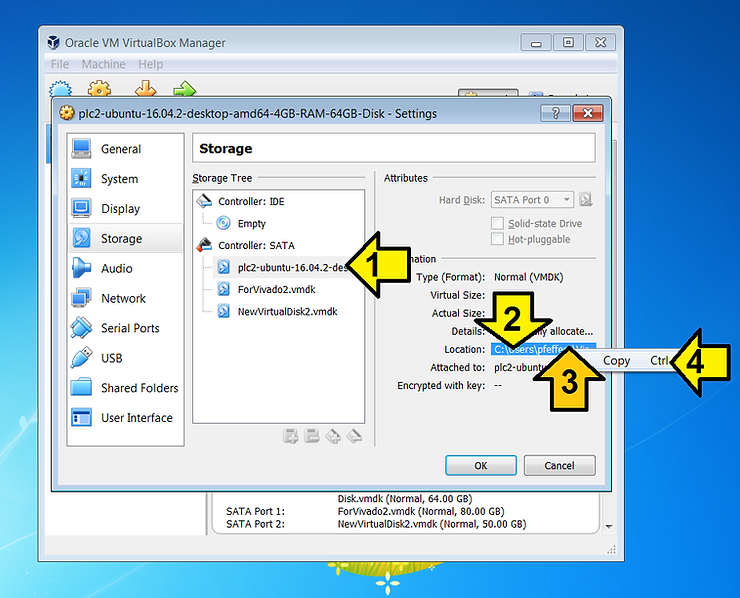

(1) Click on each image, (2) click the location, (3) right click, (4) click copy to copy the path.

copy_the_path_11

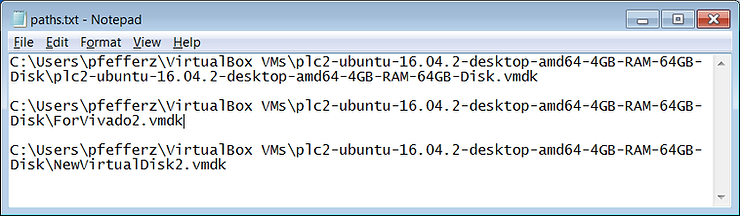

Record all the paths in Notepad and save the paths as paths.txt in the folder you created.

record_paths_in_notepad_12

In Windows Explorer, go to the root path of the Virtual Machine. If you have enough room on your disk, copy the Virtual Machine, otherwise move it to the folder you created.

copy_virtual_machine_13

The VM I backed up was 159 GB. I initially intended to back it up to the cloud, but backed it up to a Seagate STEL40001000 instead. There’s a post here: Unboxing a Seagate STEL4000100 4 TB [link].
