Supported Altium File Type Extensions

altium_designer_1

This post lists all the file type extensions Altium supports and a short description of what they are.

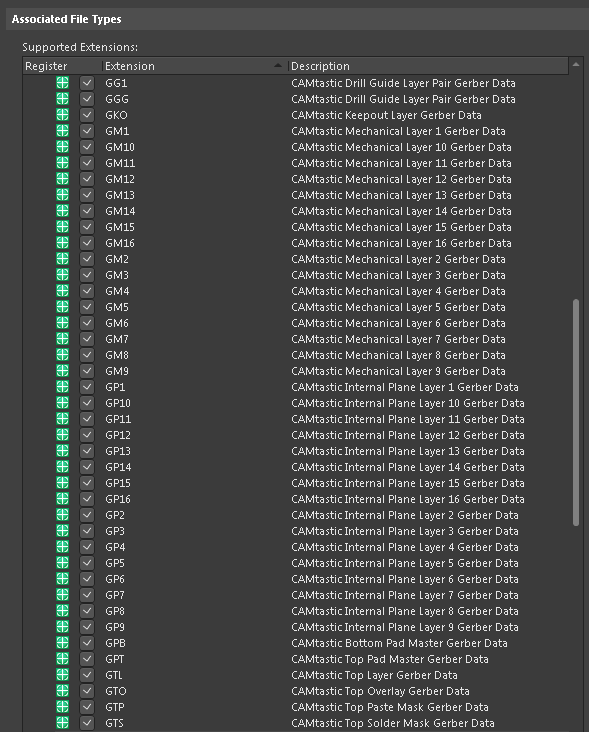

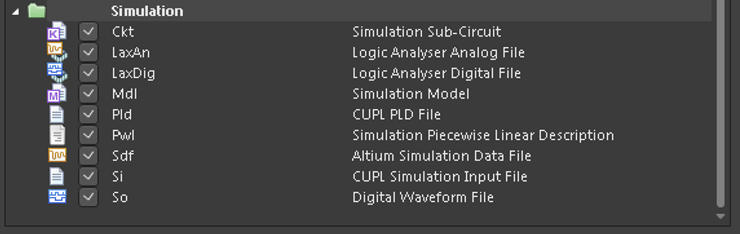

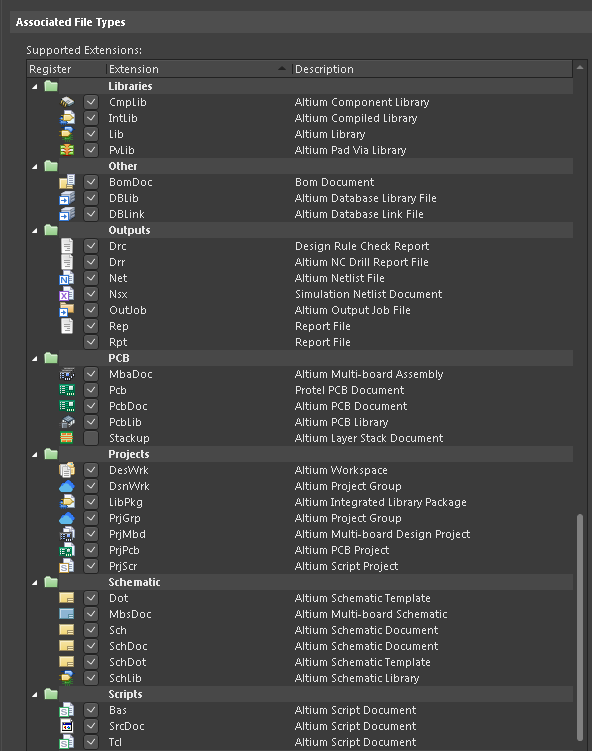

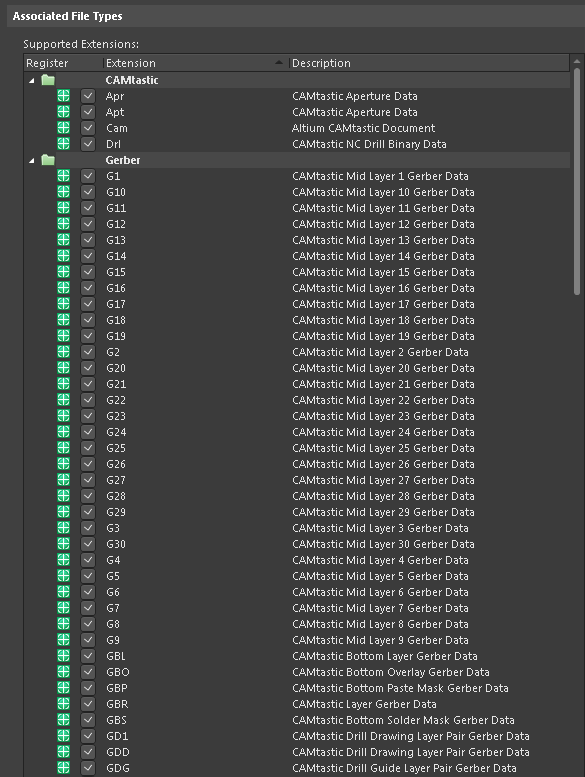

The List

list_page_2

list_page_3

list_page_4

list_page_5

How to Look this Up

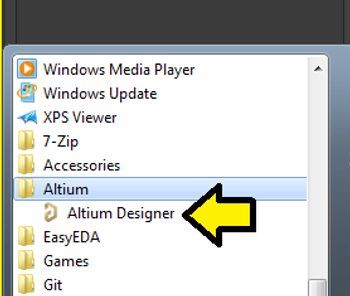

Step 1: Open Altium 19.0.14 (Build 431)

open_altium_6

Step 2: Click the gear

click_gear_icon_7

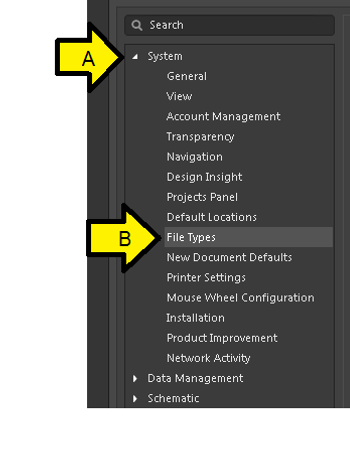

Step 3:

A. Expand System

B. Click File Types

file_types_8
