TUL PYNQ-Z2 Unboxing, Zynq-7000 Details, and Links to Documentation

tul_pynq_z2_box_1

This post presents a TUL PYNQ-Z2 unboxing, Zynq-7000 details, and links to documentation. It also lists which Zynq-7000 is used (XC7Z020-1CLG400C), its features, and some package details.

Unboxing

The box

tul_pynq_z2_box_1

box_front_2

box_side_3

box_side_4

…the bottom of the box

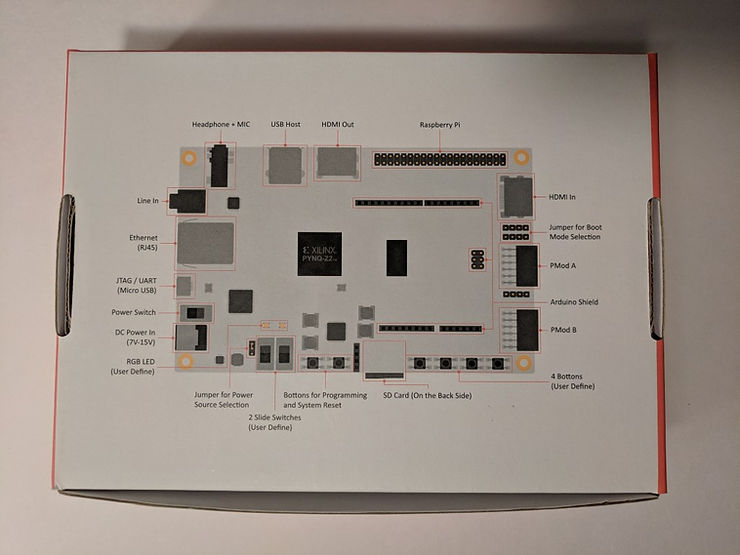

box_bottom_5

…opened

opened_box_6

A close up of the board…

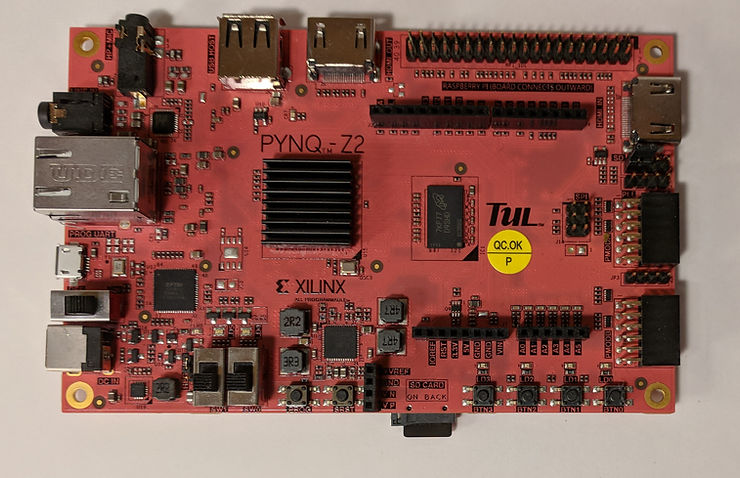

board_close_up_7

…and the bottom of the board.

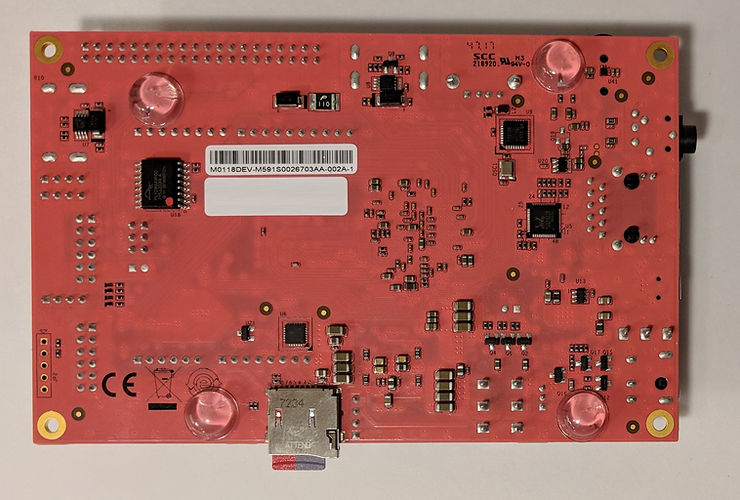

board_bottom_8

…and the SD Card:

sd_card_9

Power

power_supply_box_10

wall_plug_11

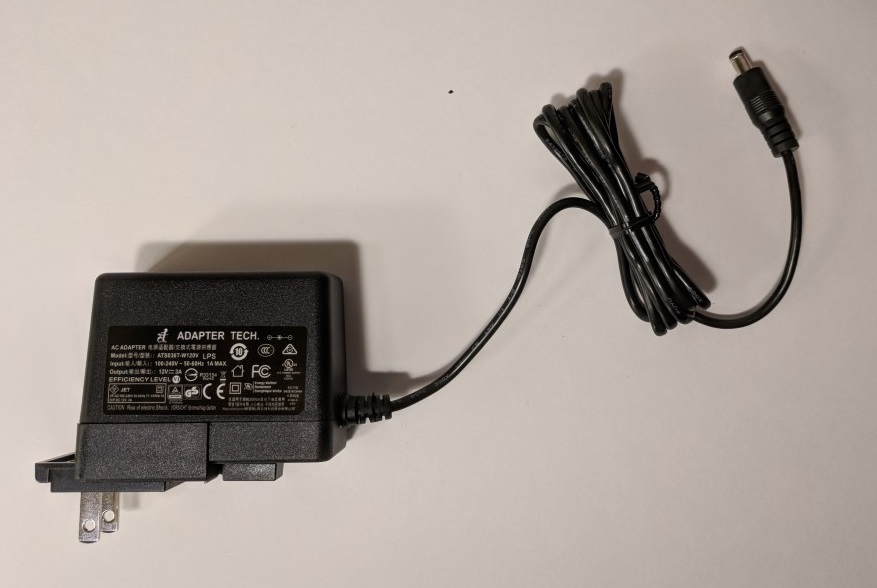

power_supply_12

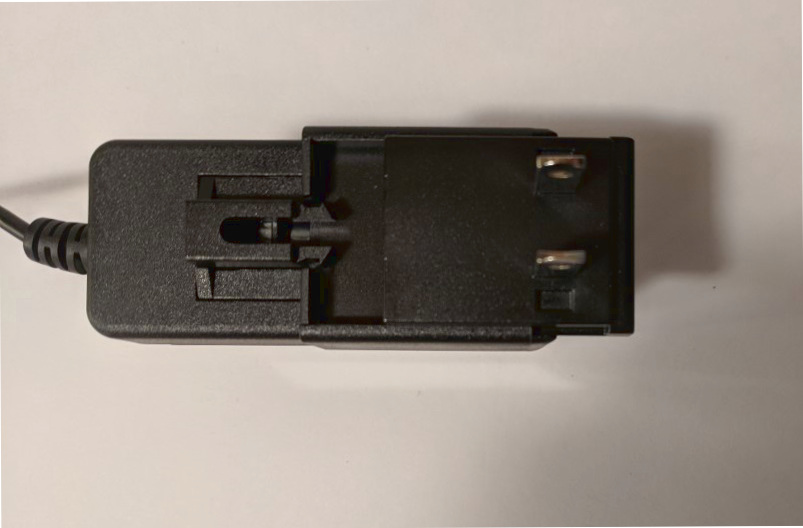

power_supply_open_13

power_supply_closed_14

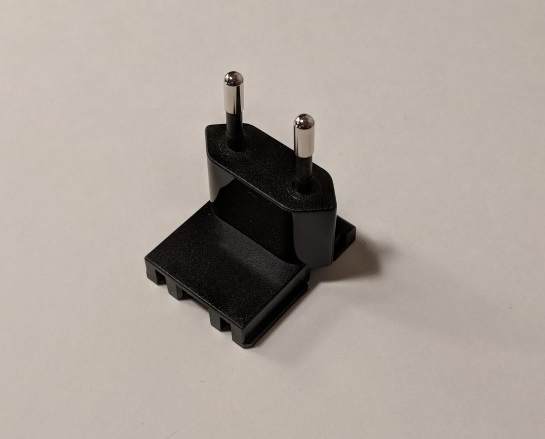

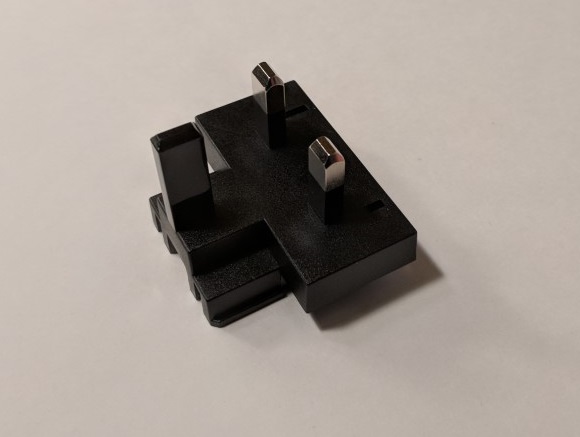

wall_plug_adapter_15

…and a close up on the power supply:

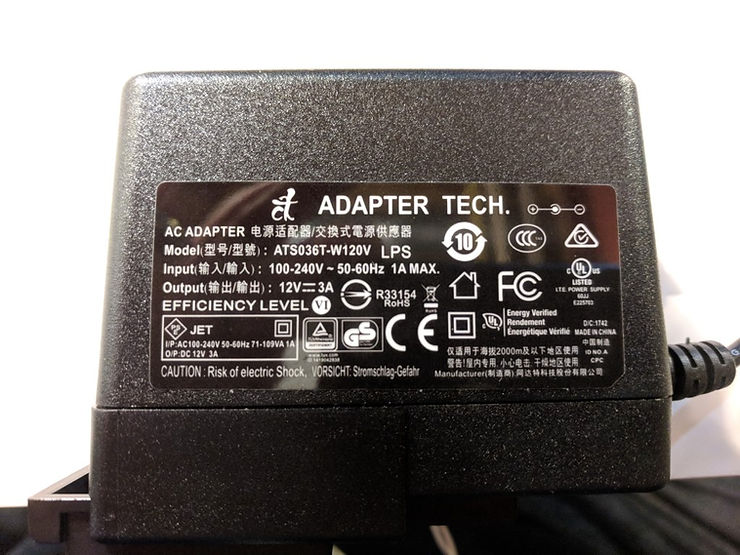

power_supply_close_up_16

Some of the details on adapter:

AC ADAPTER

Model: ATS036T-W120V LPS

Input: 100-240V 50-60Hz 1A MAX.

Output: 12V 3A

EFFICIENCY LEVEL V1

Zynq-7000 Feature, Package & Mechanicals Summary

The PYNQ-Z2 has a XC7Z020-1CLG400C

Device/Package I/O at [link]

Feature Summary

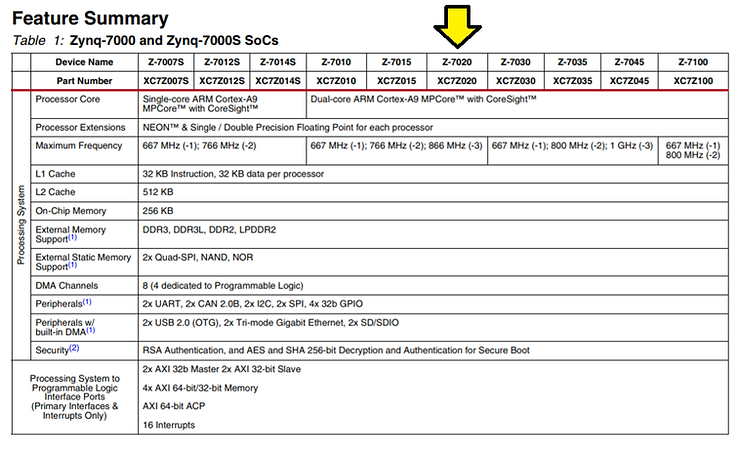

feature_summary_17

feature_summary_18

Package Specification

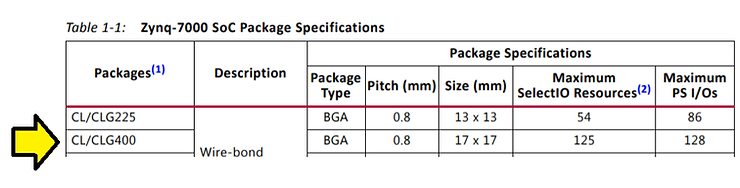

package_specification_19

package_specification_20

Mechanicals

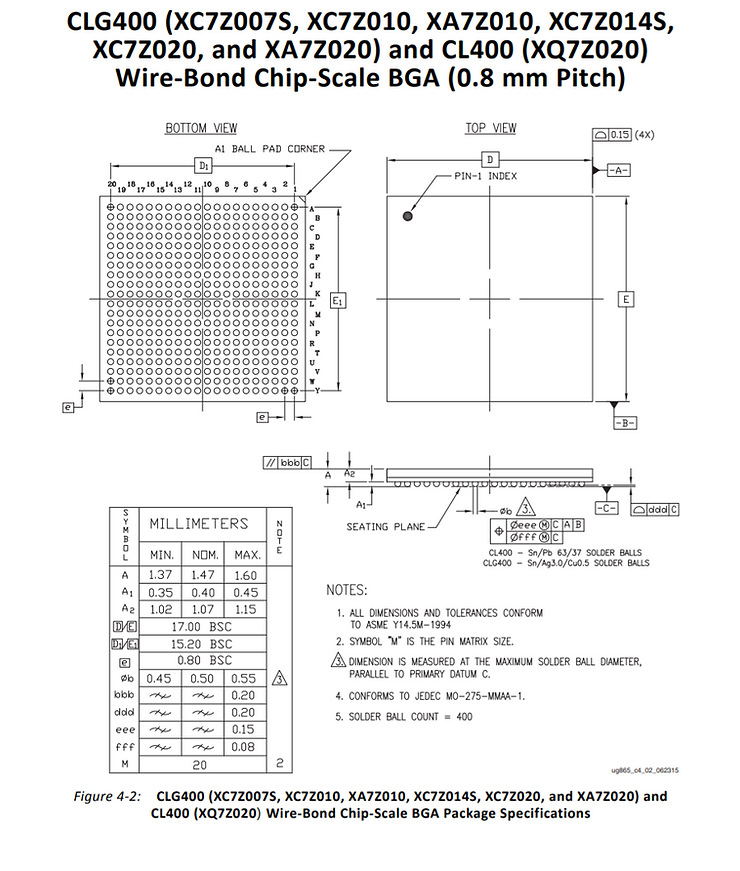

mechanicals_21

Documentation (All docs listed are available at [link])

  • PYNQ-Z2 User Manual (PDF)

  • pynqz2_user_manual_v1_0.pdf at [link]

  • copy @ [link]

  • PYNQ-Z2 Boot Image

  • pynq_z2_v2.3.zip at [link]

  • copy @ [link]

  • PYNQ-Z2 Board File (for Pmod IP support please refere here)

  • pynq-z2.zip at [link]

  • copy @ [link]

  • Master XDC

  • pynq-z2_v1.0.xdc.zip at [link]

  • copy @ [link]

  • Protective Acrylic Case (PDF)

  • PYNQ_Z2-AcrylicCaseDrawing.PDF at [link]

  • copy @ [link]

  • Zynq Datasheet (PDF)

  • ds187-XC7Z010-XC7Z020-Data-Sheet.pdf at [link]

  • copy @ [link]

  • Zynq Manual (PDF)

  • ug585-Zynq-7000-TRM.pdf at [link]

  • copy @ [link]

  • Schematics (PDF)

  • TUL_PYNQ%20Schematic_R12.pdf at [link]

  • copy @ [link]

References

  • TUL PYNQ-Z2 Product Announcement, Product Specification, Downloads, Ordering, Technical Support and Distribution Partners at [link]

  • Zynq-7000 SoC Data Sheet: Overview - ds190-Zynq-7000-Overview.pdf - [link]

  • Zynq-7000 SoC Packaging and Pinout Product Specification - ug865-Zynq-7000-Pkg-Pinout.pdf - [link]
