Why do I need to run “Create HDL Wrapper…”

xilinx_logo_1

This post lists why a Vivado IP integrator a block diagram must be wrapped in an HDL wrapper, short answer: “because a BD (block design) cannot be synthesized directly.”

In Vivado IP integrator a block diagram must be wrapped in an HDL wrapper.

Why?

From Designing IP Subsystems Using IP Integrator on p149 Xilinx provides this answer:

“The top-level HDL wrapper around the block design is needed because a BD (block design) source cannot be synthesized directly.”

Supporting Documentation

UG994 p.83

supporting_docs_2

UG994 p.84

create_hdl_wrapper_dialog_box_3

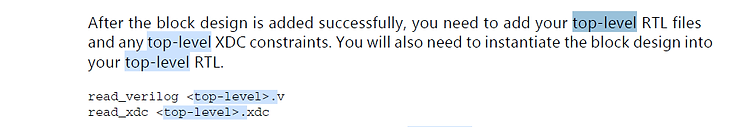

UG994 p.149

top_level_4

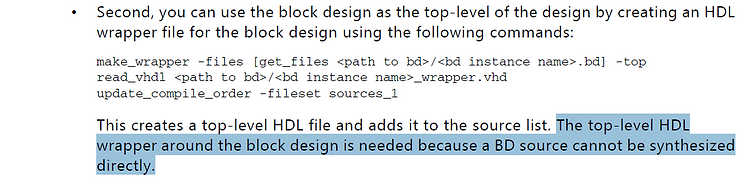

UG994 p.149

explanation_5
