Create a ZCU102 PS in Vivado 2019.1
This post shows how to create a ZCU102 PS (Processor Subsystem) in Vivado 2019.1 that allows you to “run code” on the Zynq UltraScale+ MPSoC.
Steps
Step #1: Install Vivado 2019.1 with the SDK option
Follow the steps at [link]
Step #2: Start Vivado

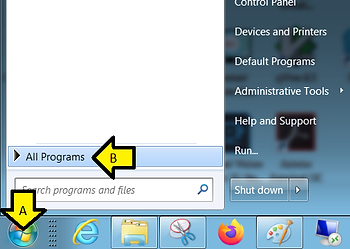

On Windows 7: (A) click Start, (B) click All Programs

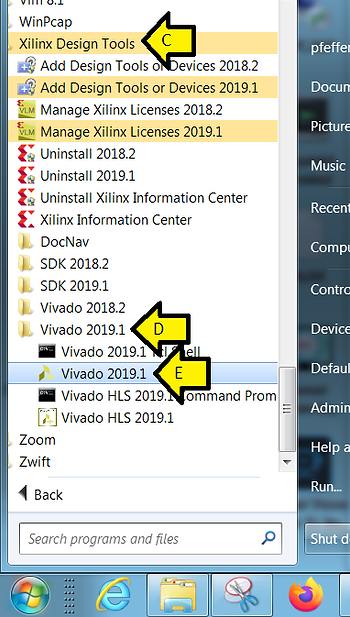

(C) click Xilinx Design Tools, (D) click Vivado 2019.1, and (E) click Vivado 2019.1
Step #3: Click Create Project

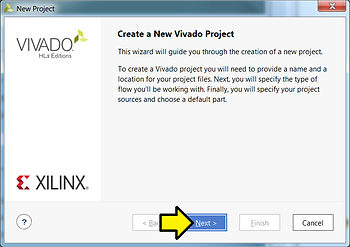

Step #4: Click Next >

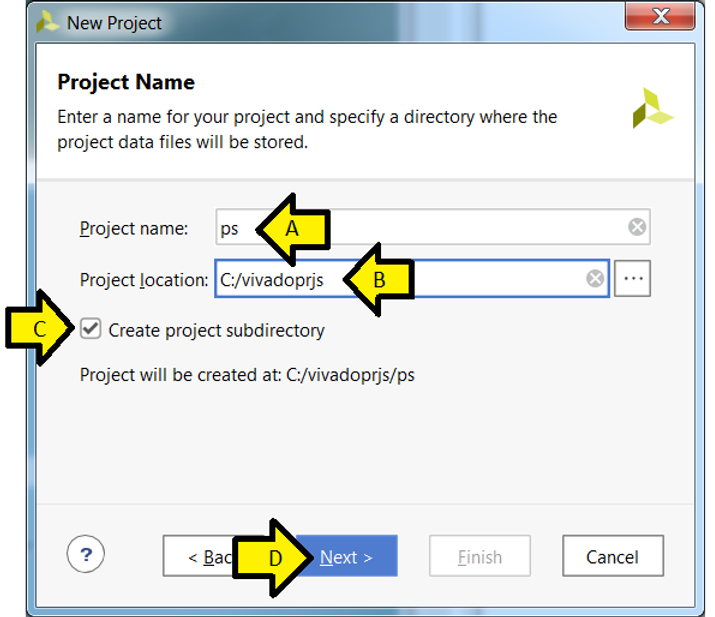

Step #5: Set the Project Name and Location
A) Project name: ps
B) Project location C:/vivadoprjs
C) Leave checked: Create project subdirectory
D) Click Next >
Step #6: Specify the Project Type
A) Leave RTL Project selected
B) Leave Do not specify sources at this time selected
C) Click Next >

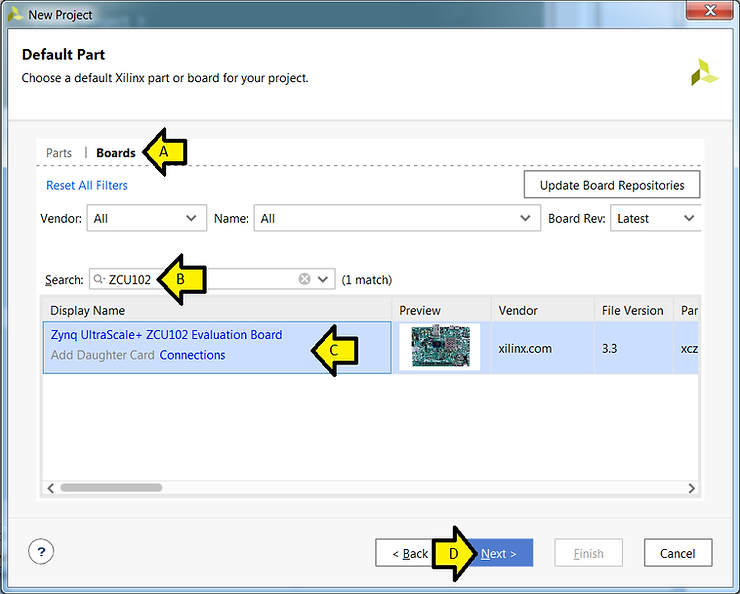

Step #7: Specify the board
A) Click Boards
B) Type ZCU102
C) Click inside the Zynq UltraScale+ ZCU102 Evaluation Board box (so it turns blue)
D) Click Next >

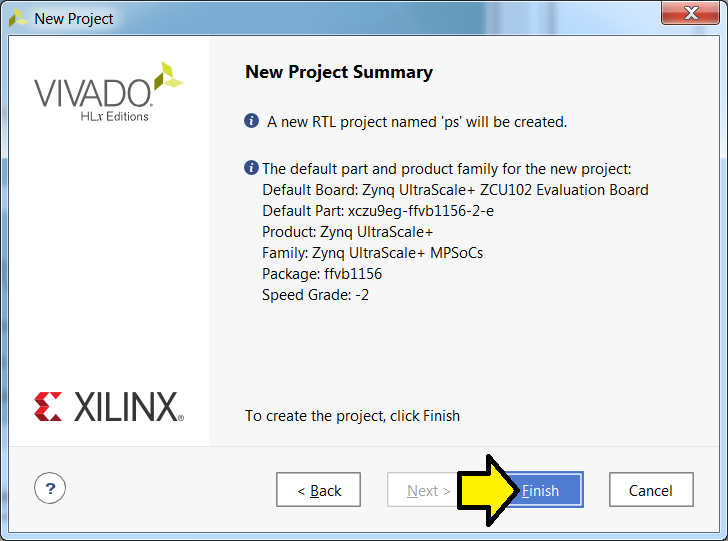

Step #8: Click Finish
Note: Here is the text of this window:
The default part and product family for the new project: Default Board: Zynq UltraScale+ ZCU102 Evaluation Board Default Part: xczu9eg-ffvb1156-2-e Product: Zynq UltraScale+ Family: Zynq UltraScale+ MPSoCs Package: ffvb1156 Speed Grade: -2
Related docs: See [link] for package info, see [link] for part selection

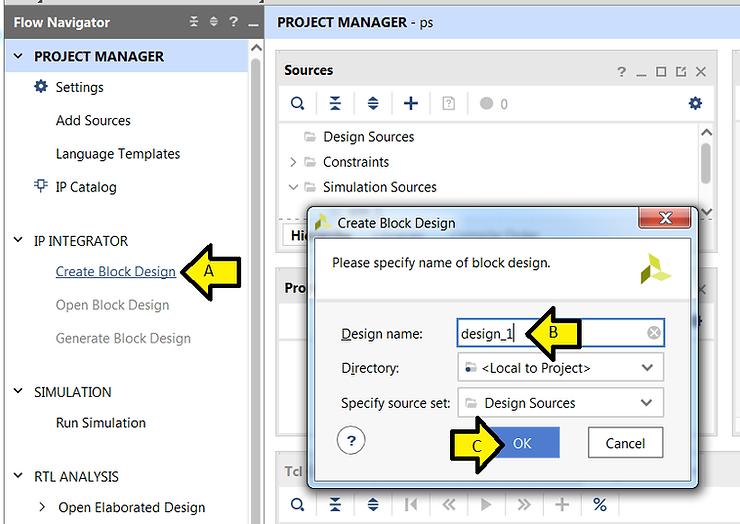

Step #9: Create a Block Design
A) Click Create Block Design
B) Use default Design name: design_1
C) Click OK

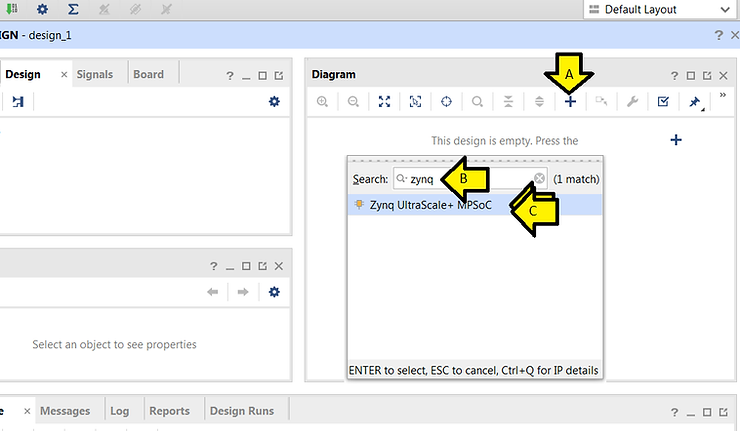

Step #10: Add the Zynq UltraScale+ MPSoC to the Block Design
A) Click +
B) Type zynq
C) Double-click Zynq UltraScale+ MPSoC

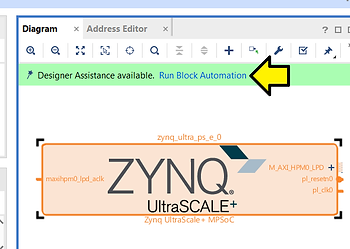

Step #11: Click Run Block Automation

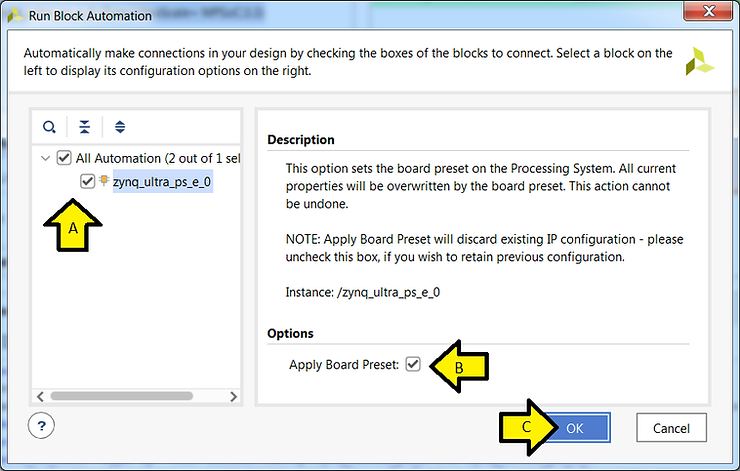

Step #12:
A) Leave All Automation and zynq_ultra_ps_e_0 checked
B) Leave Apply Board Preset checked
C) Click OK

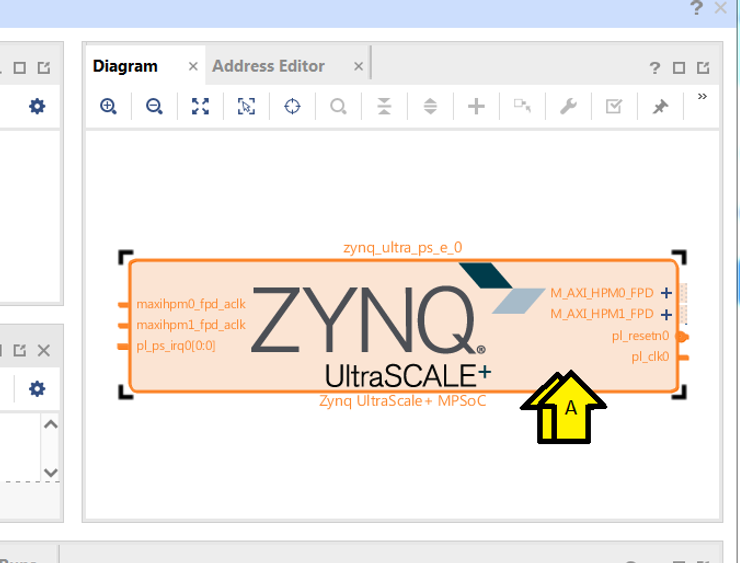

Step #13:
A) Double click the Zynq UltraScale+ MPSoC block
B) Click PS-PL Configuration
C) Expand PS-PL Interfaces
D) Expand Master Interface
E) Uncheck AXI HPM0 FPD
F) Uncheck AXI HPM1 FPD
G) Click OK
Step #14: Create an HDL Wrapper
A) Right-click design_1 (design_1.bd)
B) Click Create HDL Wrapper…
C) Leave Let Vivado manage wrapper and auto-update selected
D) Click OK

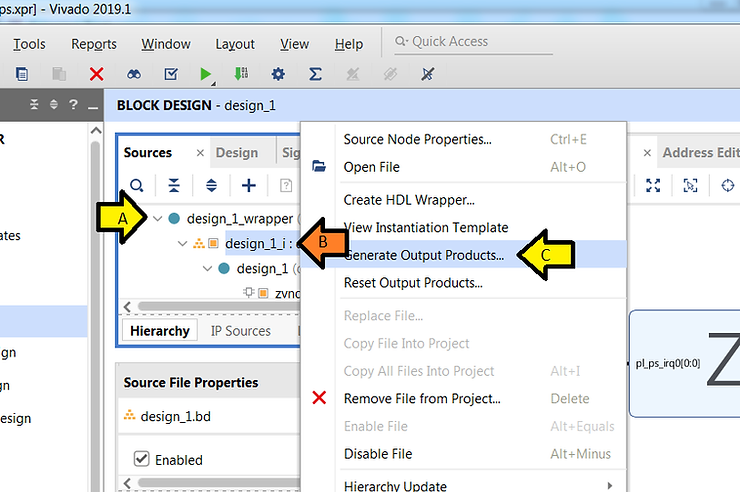

Step #15: Generate Output Products
A) Expand design_1_wrapper (design_1)wrapper.v) (1)
B) Right-click design_1_i : design_1 (design_1.bd) (1)
C) Click Generate Output Products…
D) Click Generate

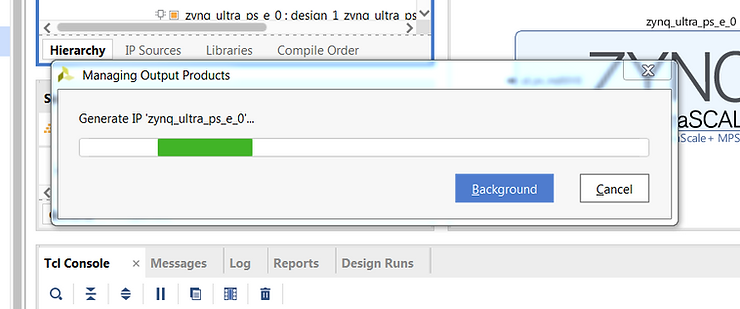

You should see:
E) Observe Generate Output Products status
F) Click OK

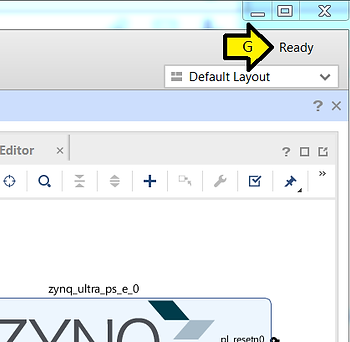

G) Wait until the status says Ready

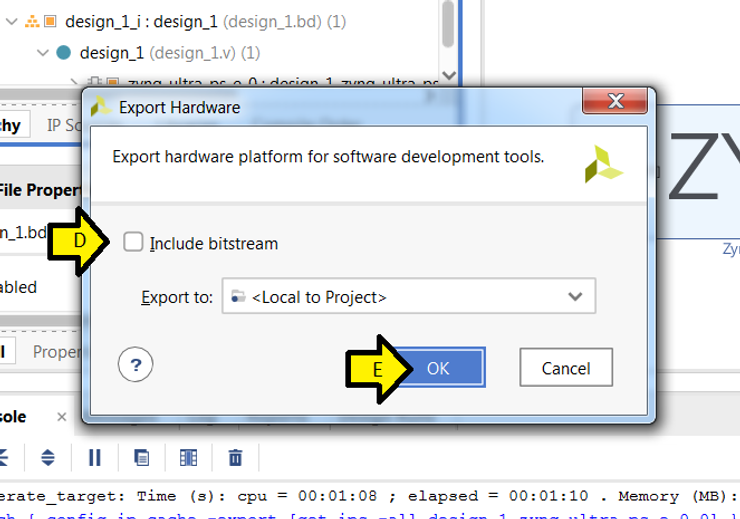

Step #16: Export the hardware to the SDK
A) Click File
B) Click Export
C) Click Export Hardware…
D) Leave Include bitstream unchecked
E) Click OK

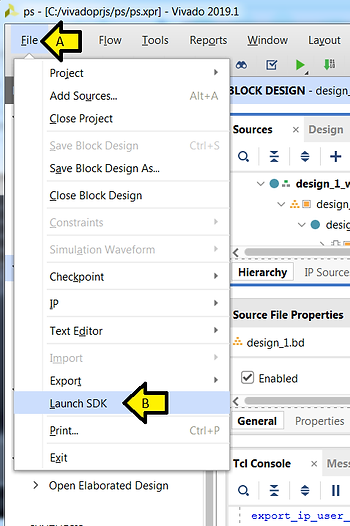

Step #17: Launch the SDK
A) Click File
B) Click Launch SDK
C) Click OK

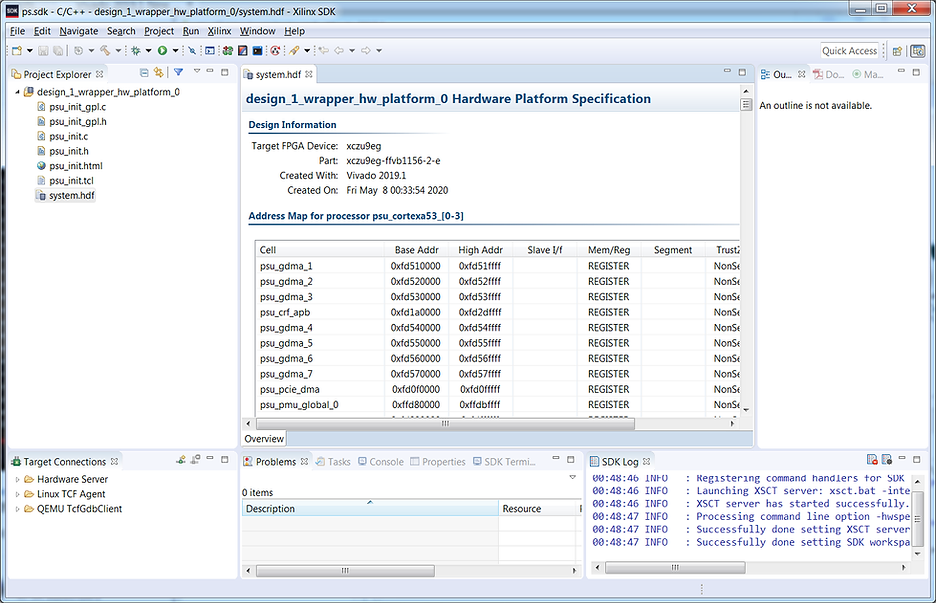

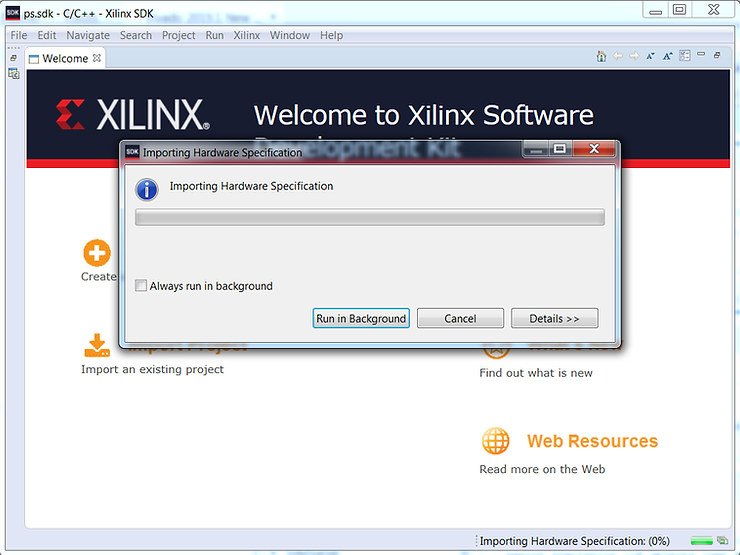

You should see:
Followed by:
