Install the 2019.1 Vivado HL Design Edition and Xilinx SDK


This post walks through installing Vivado HL Design Edition with support for all Xilinx devices and installing the Xilinx SDK using the Download and Install Now option. It was written on May 6th, 2020.


Just the SDK?


The 2019.1 Xilinx SDK can be downloaded and installed from [link].


Get and Start the Installer


These steps can be used regardless of how you got or started the installation.


To find and start the Windows Self Extracting Web Installer installer click:

  • Find and Download Xilinx's Vivado 2019.1 Windows Self Extracting Web Installer at [link]

  • Start Installing Xilinx's Vivado 2019.1 on Windows 7 from the Windows Self Extracting Web Install at [link]


Prerequisites

  • You have a total of 76.76 GB disk free (16.32 GB for the download and 60.44 GB for the installation). Note: using these steps, the installer will leave only 30.14 GB installed. You could download the full image to an external drive and then run the installer and install Vivado onto your main drive if you don't have space for the download and the disk space required during installation on your main drive.

  • You've downloaded and have started a Vivado 2019.1 Installer.

  • A Xilinx login. Get one at [https://login.xilinx.com/] (click the Create Account button).

  • A Vivado license. After getting a login, get one at [https://www.xilinx.com/getlicense]. You should have downloaded your Xilinx.lic file.

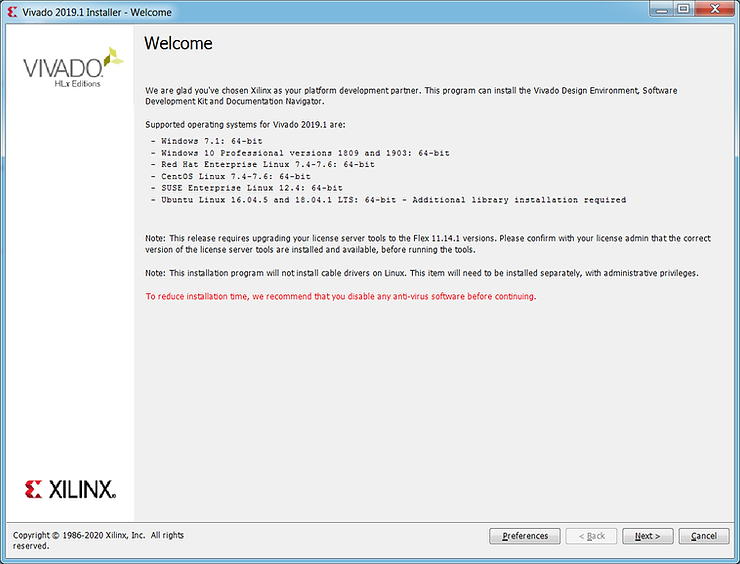

This post assumes you're staring at this screen:


Note on Time


It took 38 min to download the files on my 6-7 MB/sec connection,

21 minutes to install files on my T460 [link] with a memory upgraded to 32 GB [link]



Steps

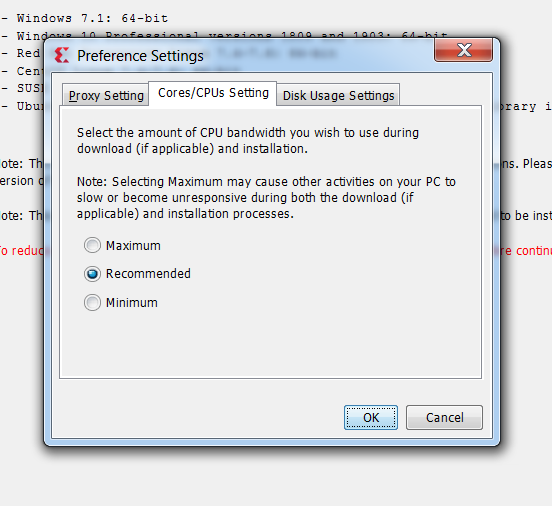

Step 1 (optional): Click Preferences to set up a download proxy, set the number of cores the installer can use, and turn off disk optimization

Click OK (or Cancel)


Step 2: Click Next

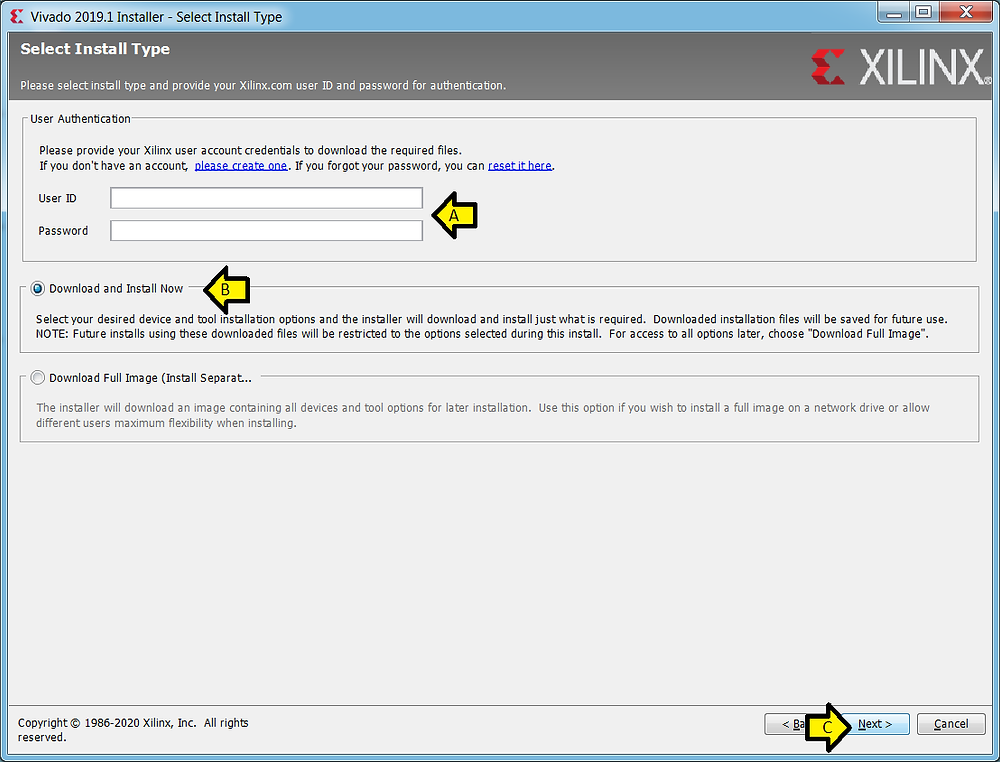

Step 3:

A) Enter your User ID and Password

B) Leave Download and Install Now selected

C) Click Next


Step 4:

A) Accept the Xilinx Inc. End User Agreement [link]

B) Accept the WebTalk Terms and Conditions [Section13-link][FAQ-link]

C) Third Party Software End User License Agreement [link]

D) Click Next


Step 5:

A) Select Vivado HL Design Edition

B) Click Next


Step 6: Use defaults and click Next

Note: I've shown the options expanded to show what gets installed


Step 7:

WAIT!!! If you're Installing as an elevated "local" user (your IT department may have you install as an elevated local computer Windows user) click All users before clicking Next. If you don't do this, when you run Vivado as your "normal" logged-in user it won't work and you will have to uninstall and reinstall Vivado with this option checked since you can't correct this.


If you have no idea what I'm warning against, accept the defaults (provided nothing is red) and click Next


Step 8: Review the Installation Summary and click Install


Step 9: A) Fill in your User ID and Password and B) click Login

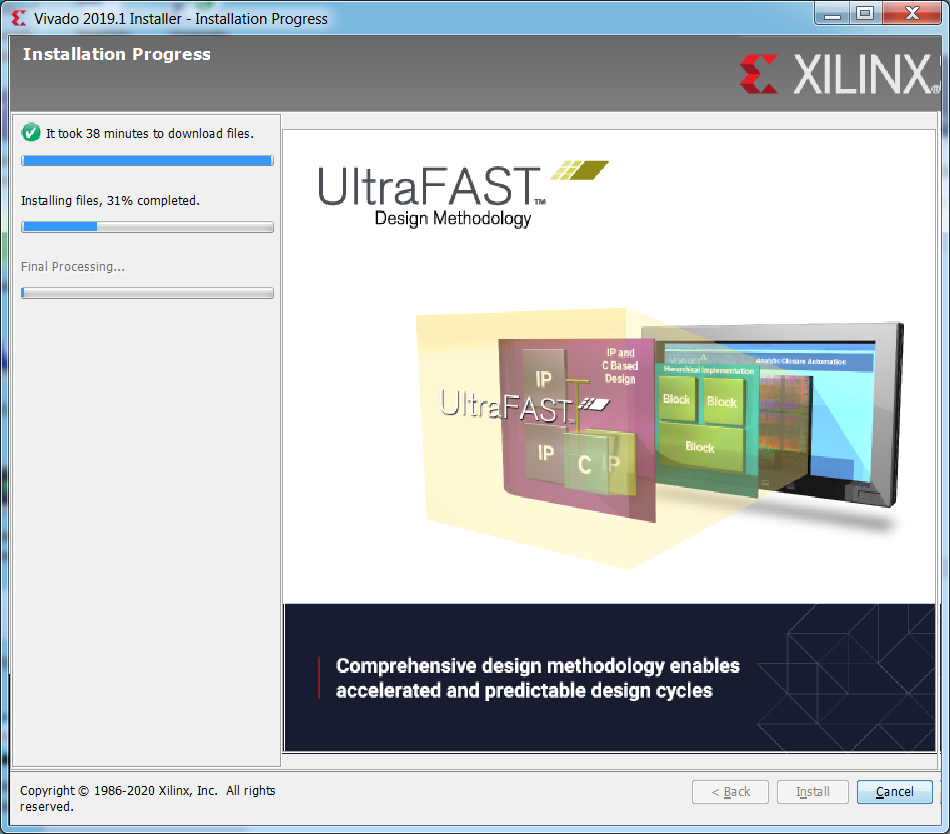

Downloading files...

Installing files...

Optimizing disk usage...


Step 10: Click OK on the disconnect and install drivers pop up (missed the window).


Step 11: Click OK on the Installation completed successfully. window


Step 12: Click Load License on the Vivado License Manager 2019.1


Step 13: Click Copy License...


Step 14: (A) Browse to Xilinx.lic, (B) click on it, and (C) click Open


Step 15: Click OK


Step 16: (A) Click File and (B) Exit

C) Click OK

Note: Vivado 2019.1 can be found in (A) Windows > (B) Xilinx Design Tools > (C) Vivado 2019.1:


Vivado running...
