Zynq-7000 + AXI Slave with Interrupt Hello World on a ZC702

This post lists step-by-step instructions for creating an AXI slave with an interrupt using Vivado HLS, integrating the slave into a Zynq-7000 system using Vivado, writing a driver that exercises the AXI slave and responds to the interrupt and running everything on a ZC702.

Versions Used

• Xilinx Vivado 2018.2 & SDK 2018.2

• Xilinx Vivado HLS 2018.2

• ZC702 Rev 1.1

• Windows 7 SP1

Before you Start

Review the ZC702 JTAG and serial port set up instructions @ [link]. These instructions are also reviewed below.

Contents

Part 1: Create an AXI Slave with an Interrupt Using Vivado HLS

Part 2: Create the Vivado Project

Part 3: Add the axi_lite Repo to the UP Catalog

Part 4: Create the Zynq-7000 in IP Integrator

Part 5: Connect the HLS Interrupt Line to Zynq

Part 6: Create a Top-Level HDL Wrapper

Part 7: Synthesize and Generate the Bitstream

Part 8: Export the Design and Open the SDK

Part 9: Install the USB-to-UART Driver and Get the COM Assignment

Part 10: Create the Test App and BSP

Part 11: Test Debug Run + Further Config

Part 12: Test the AXI Module and the Interrupt

Part 1: Create an AXI Slave with an Interrupt Using Vivado HLS

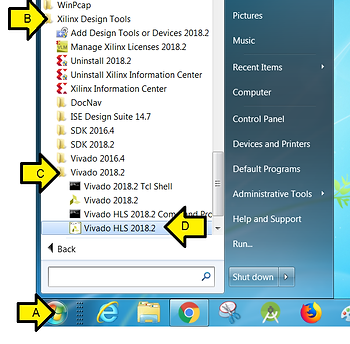

Step 1: Start Vivado HLS 2018.2

A. Click Windows

B. Click Xilinx Design Tools

C. Click Vivado 2018.2

D. Click Vivadi HLS 2018.2

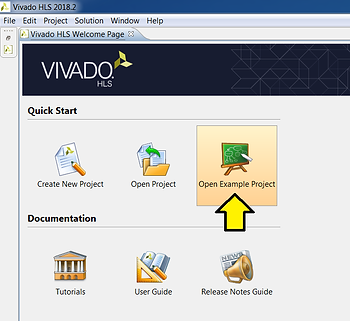

Step 2: Click Open Example Project

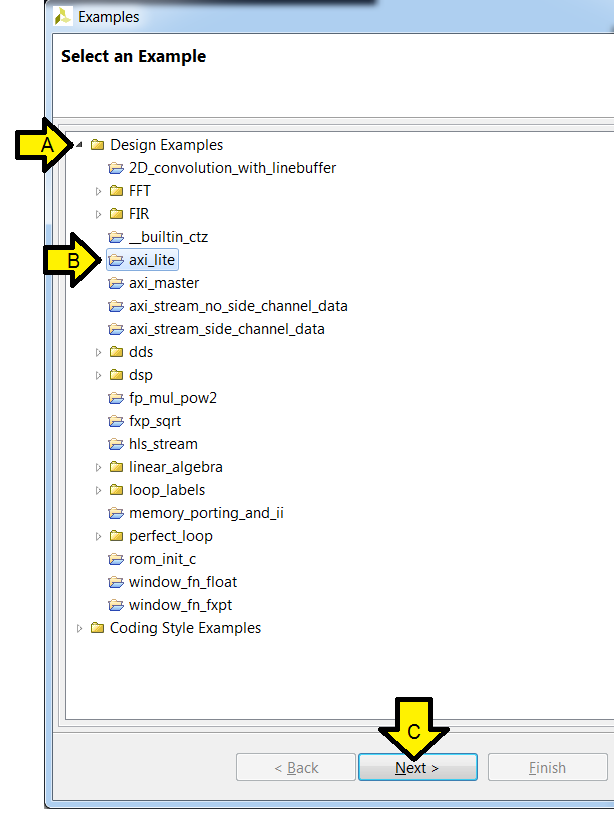

Step 3:

A. Expand Design Examples

B. Click axi_lite

C. Click Next

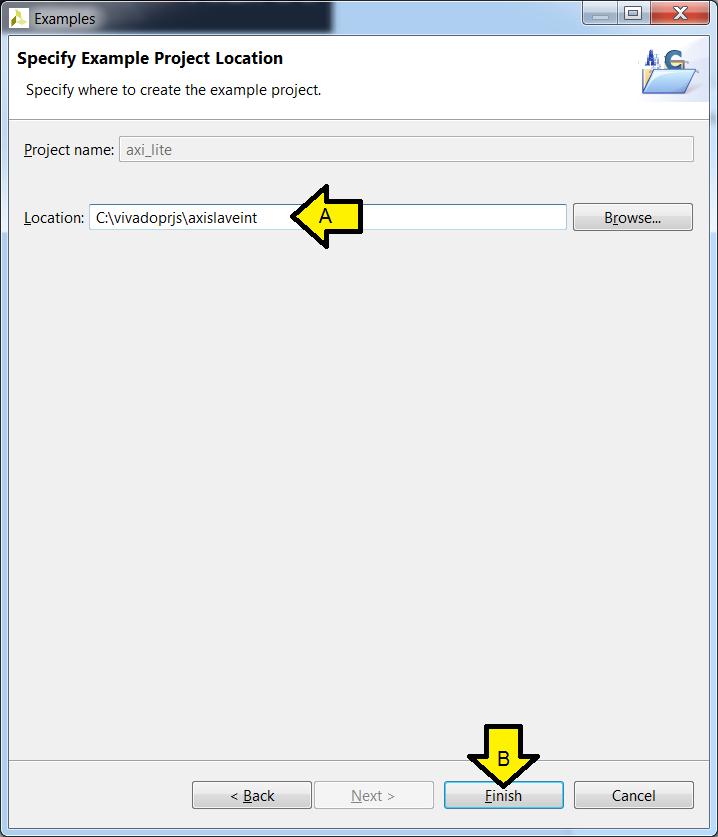

Step 4:

A. Set Location to C:\vivadoprjs\axislaveint

B. Click Finish

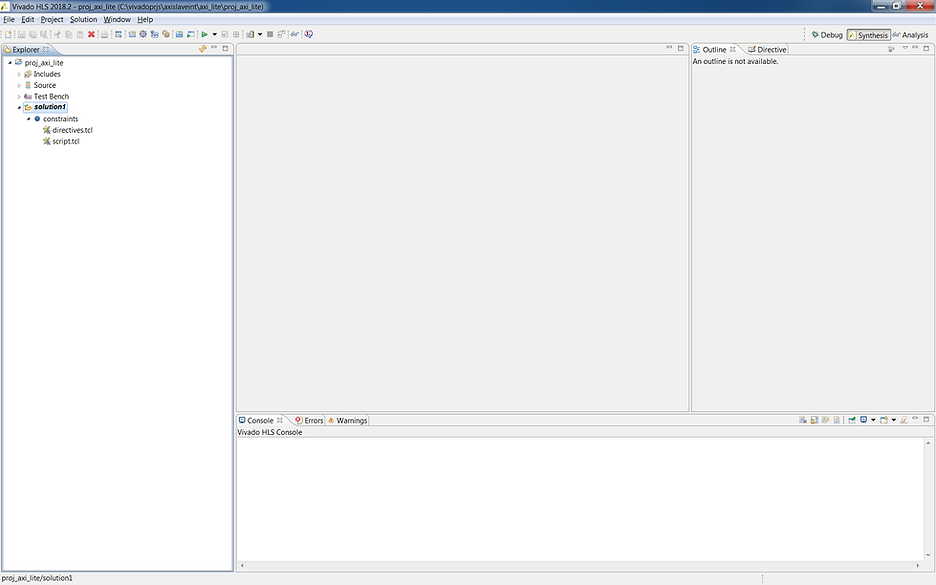

You should see:

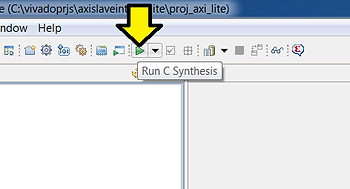

Step 5: Click Run C Synthesis

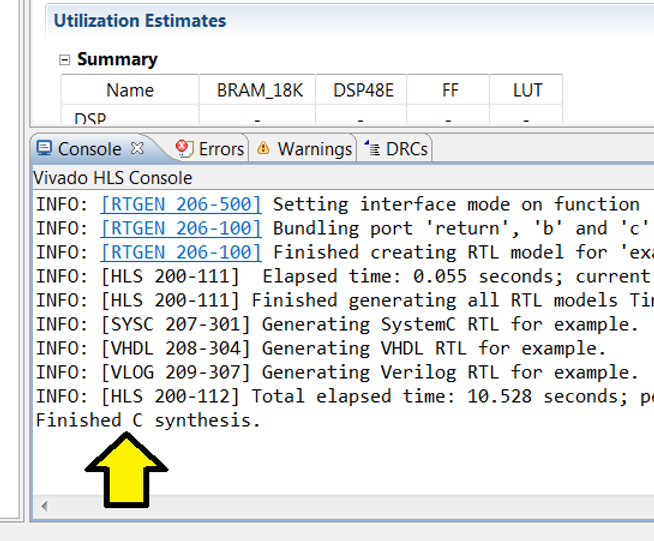

After a little bit (1 min on my T460 [link]) you should see Finished C synthesis. in the Console

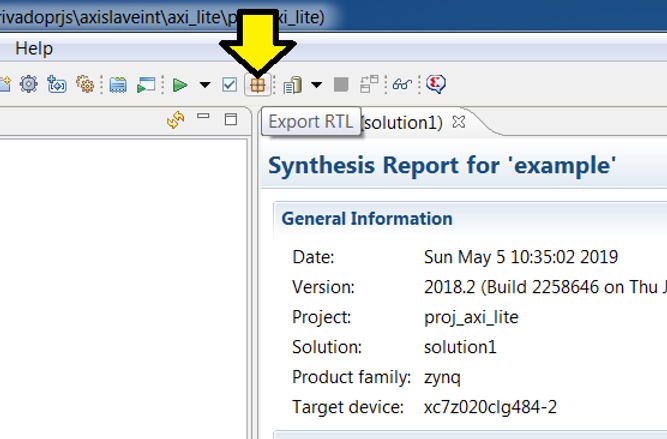

Step 6: Click Export RTL

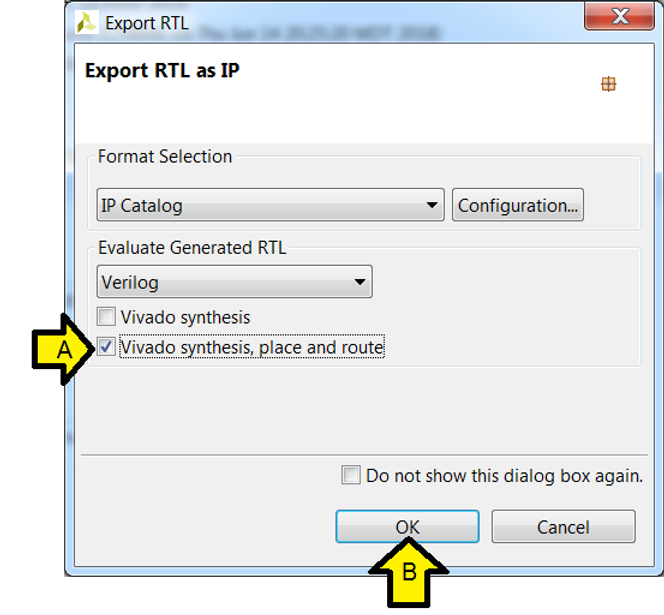

Step 7:

A. Click the Vivado synthesis, place and route checkbox

B. Click OK

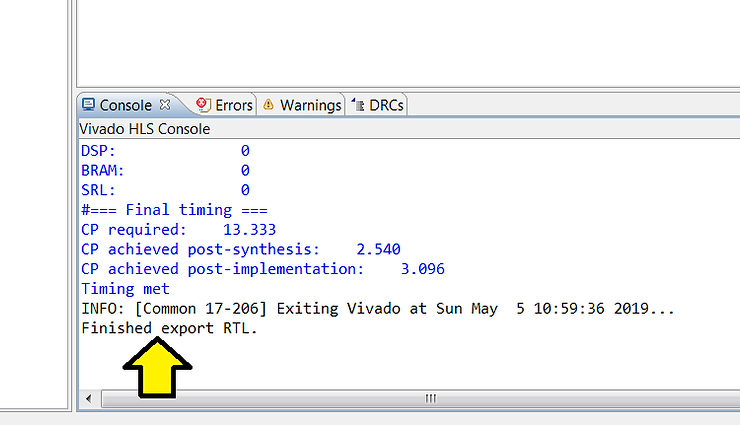

After a little bit (3 min on my T460) you should see Finished export RTL. in the Console

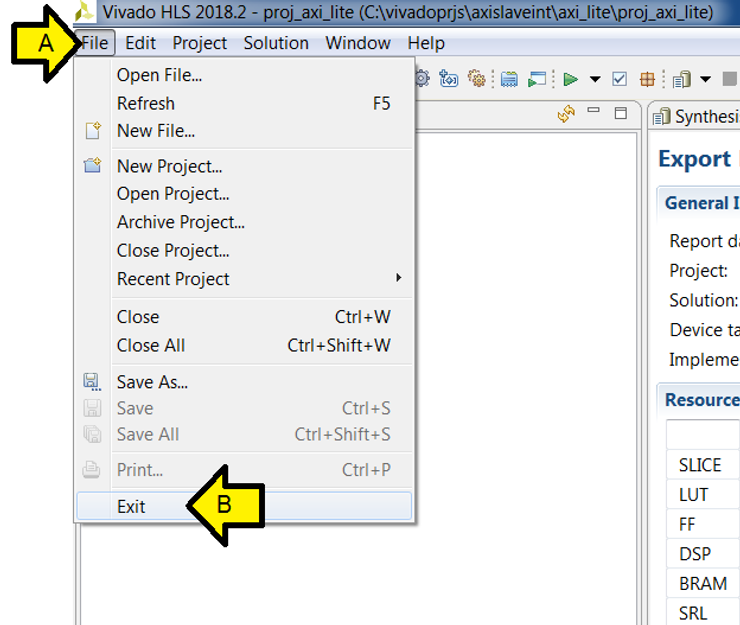

Step 8: Close Vivado HLS

A. Click File

B. Click Exit

Part 2: Create the Vivado Project

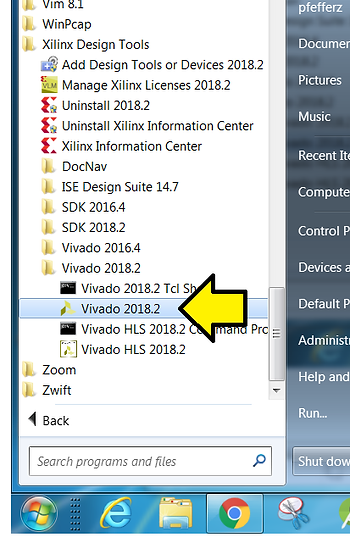

Step 1: Start Vivado

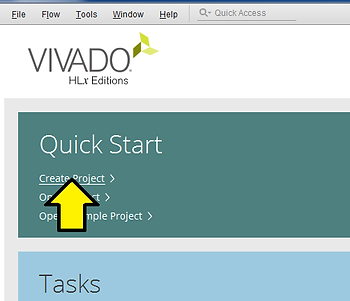

Step 2: Click Create Project

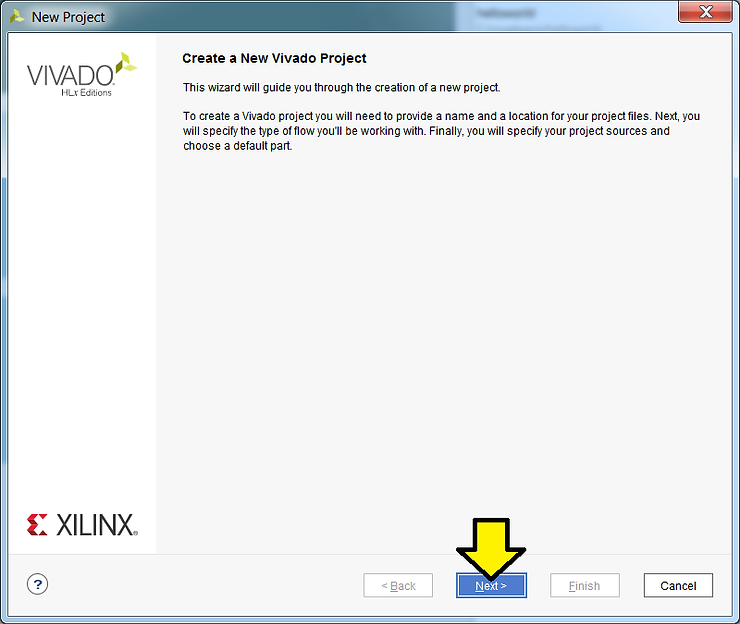

Step 3: Click Next

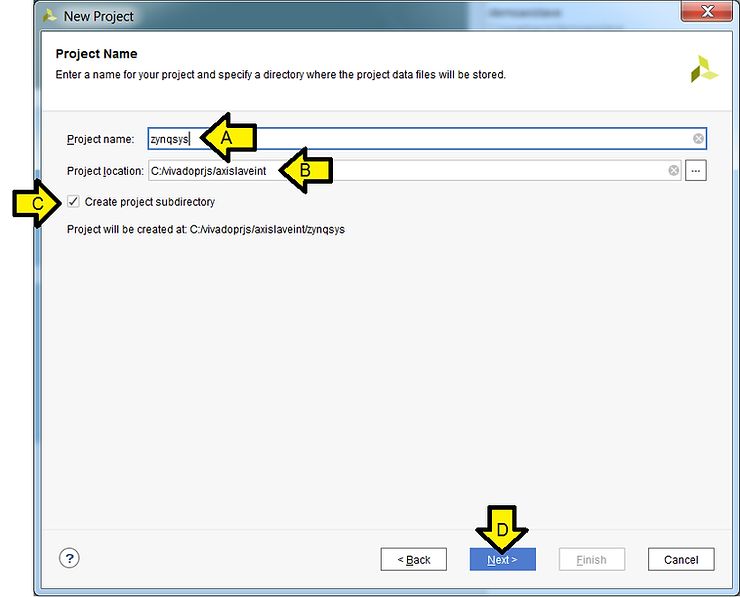

Step 4:

A. Set Project name to zynqsys

B: Set Project location to C:/vivadoprjs/axislaveint (created above)

C. Click the Create project subdirectory checkbox

D. Click Next

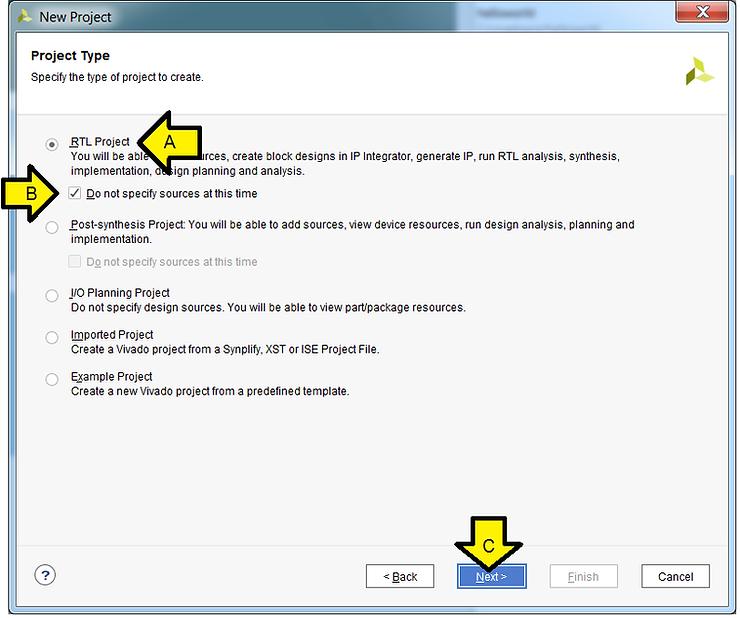

Step 5:

A. Select RTL Project

B. Check the Do not specify sources at this time check box

C. Click Next

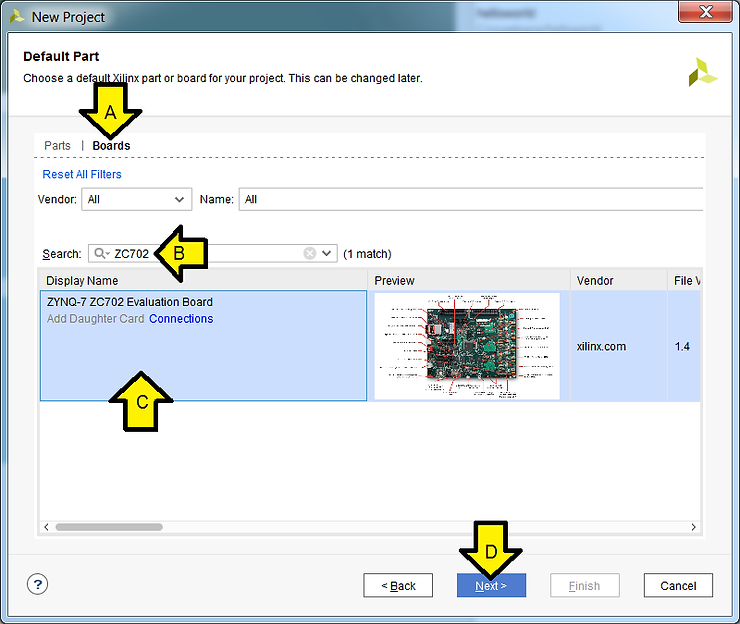

Step 6:

A. Click Boards

B. Type ZC702

C. Click on the ZYNQ-7 ZC702 Evaluation Board box

D. Click Next

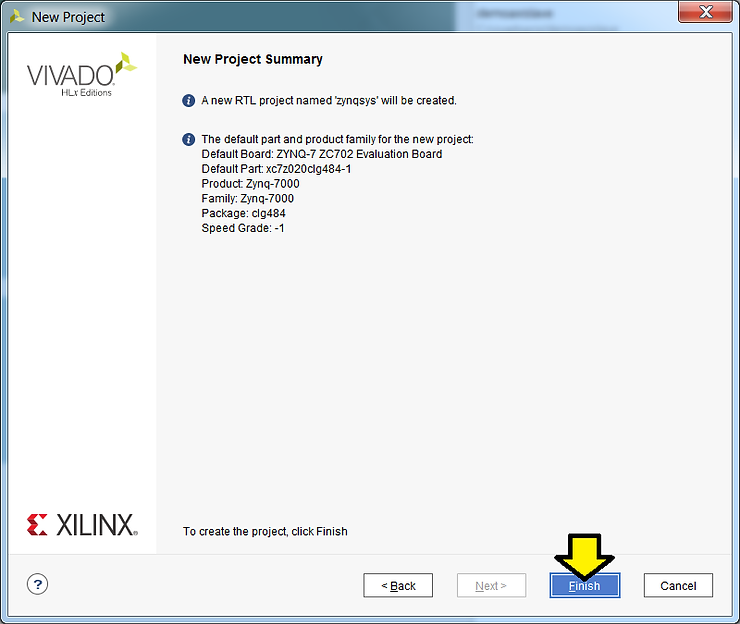

Step 7: Click Finish

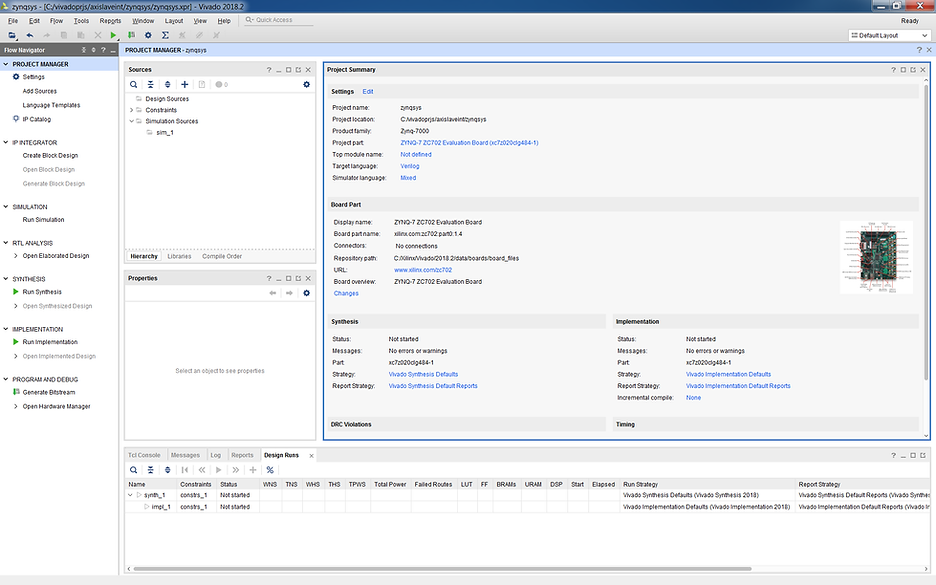

You should see:

Part 3: Add the axi_lite Repo to the UP Catalog

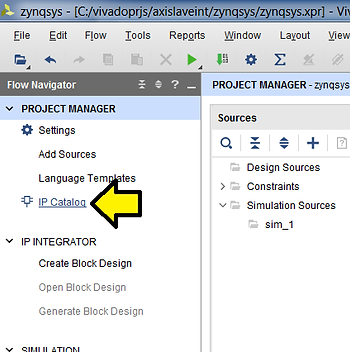

Step 1: Click IP Catalog

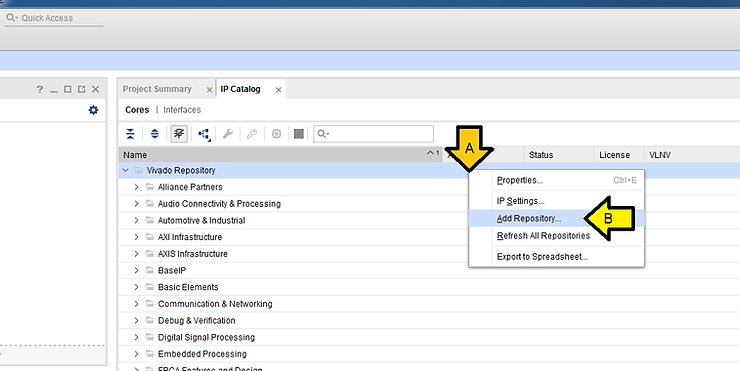

Step 2:

A. Right-click on Vivado Repository

B. Click Add Repository…

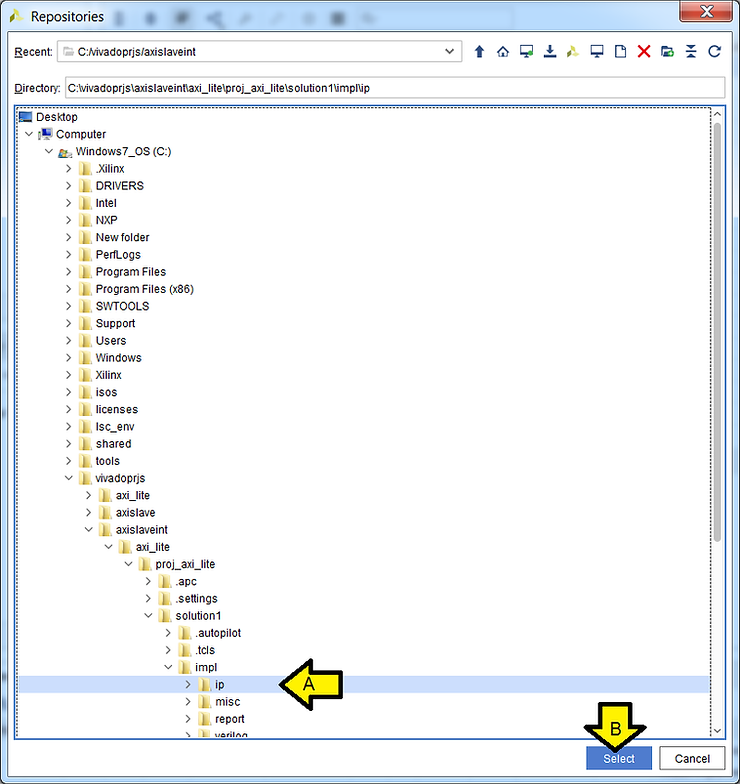

Step 3:

A. Expand the directory tree and click on C:\vivadoprjs\axislaveint\axi_lite\proj_axi_lite\solution1\impl\ip

B. Click Select

C. Click OK

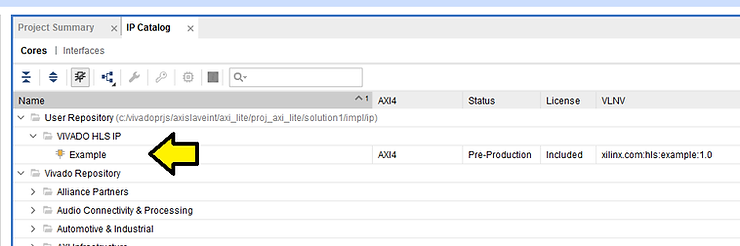

You should see Example under User Repository / VIVADO HLS IP:

Part 4: Create the Zynq-7000 in IP Integrator

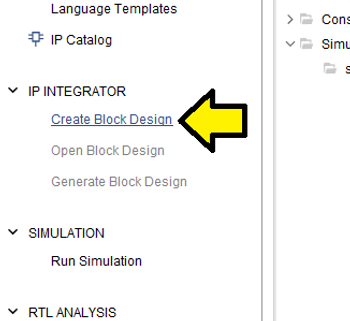

Step 1: Click Create Block Design

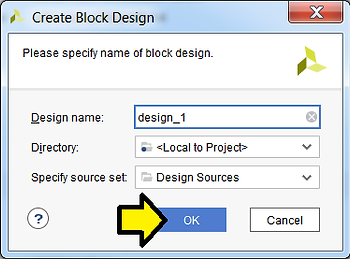

Step 2: Use defaults, click OK

Step 3: Click +

Step 4:

A. Type Zynq

B. Double-click on ZYNQ7 Processing System

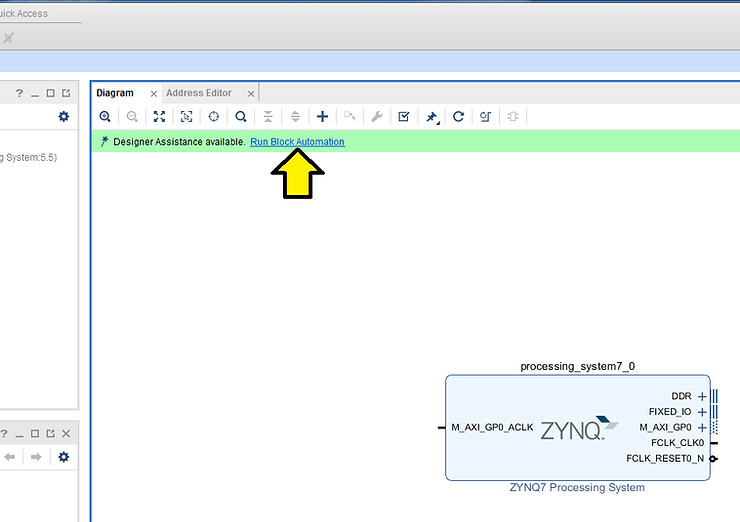

Step 5: Click Run Block Automation

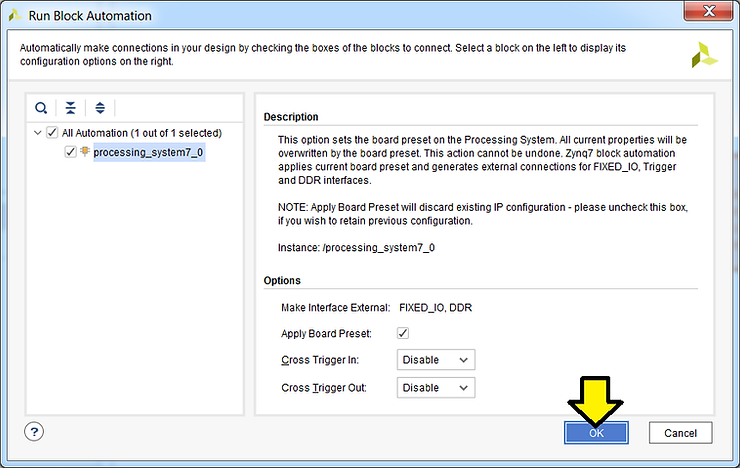

Step 6: Use defaults, click OK

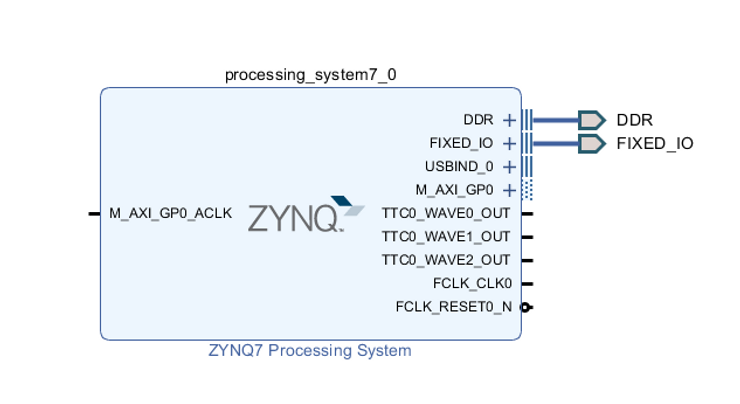

You should see:

Part 4: Connect the AXI Slave with Interrupt from HLS to Zynq-7000

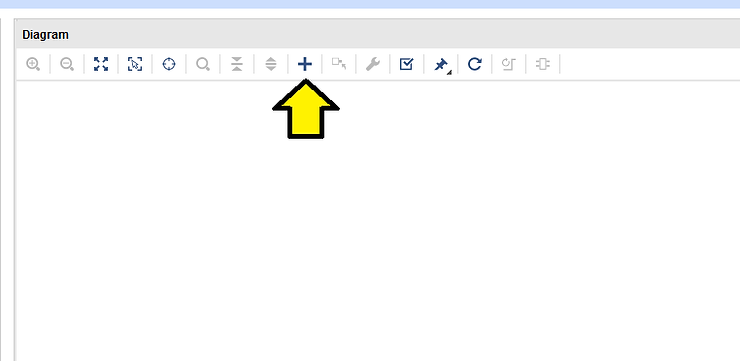

Step 1: Click +

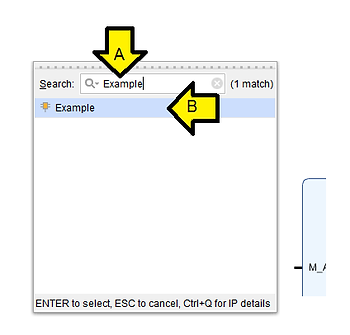

Step 2:

A. Type Example

B. Double-click on Example

Your screen should look similar to:

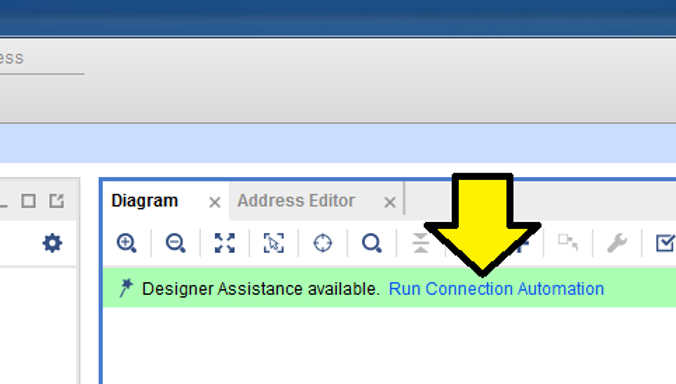

Step 3: Click Run Connection Automation

Step 4: Use defaults, click OK

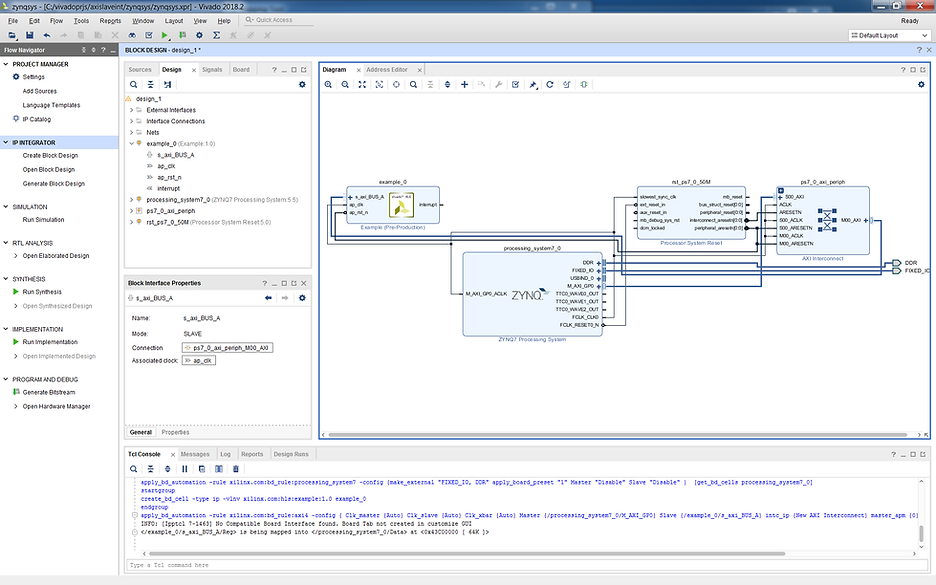

Your screen should look something like:

Part 5: Connect the HLS Interrupt Line to Zynq

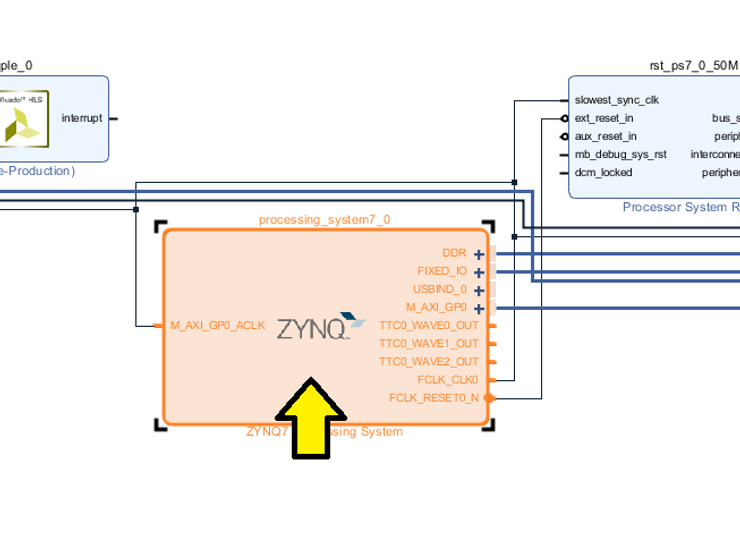

Step 1: Double click the ZYNQ block

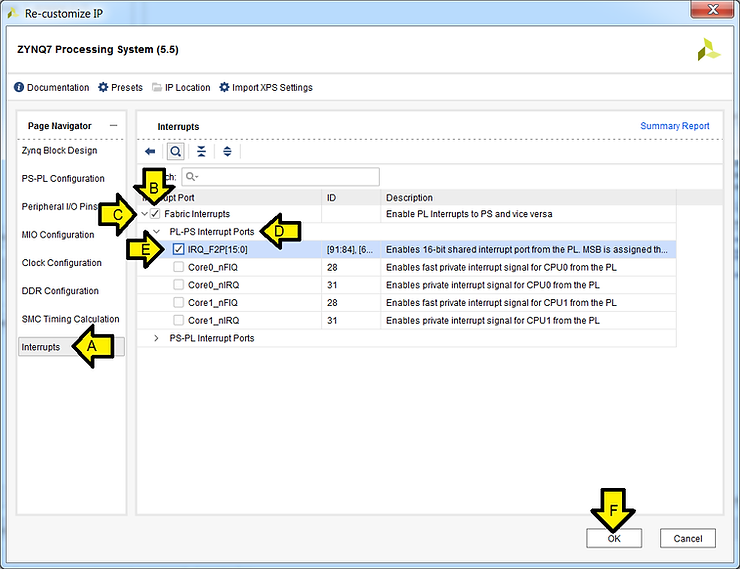

Step 2: Enable IRQ_F2P[15:0]

A. Click Interrupts

B. Check the Fabric Interrupts checkbox

C. Expand the Fabric Interrupts drop-down

D. Expand the PL-PS Interrupt Ports

E. Check the IRQ_F2P[15:0] checkbox

F. Click OK

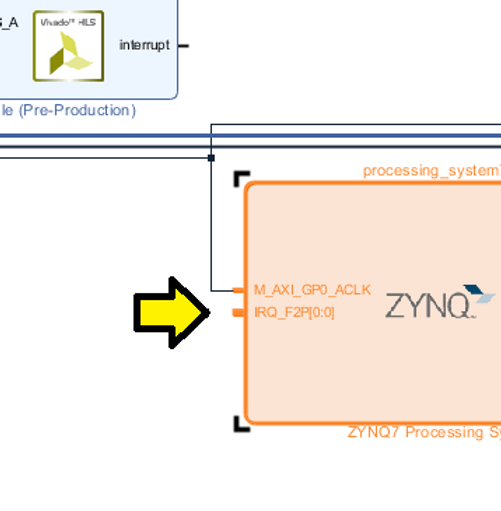

You should then see the IRQ_F2P[0:0] port on Zynq:

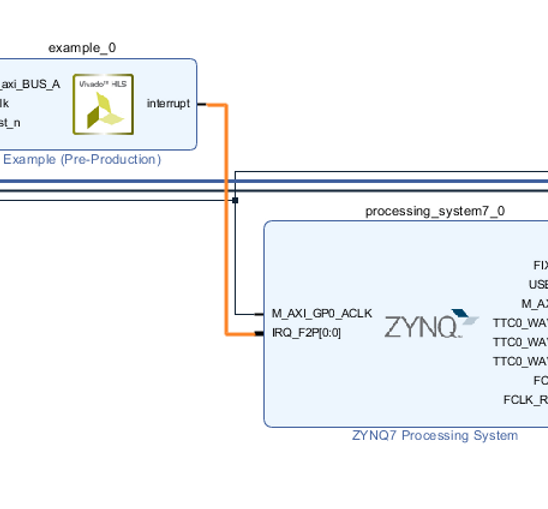

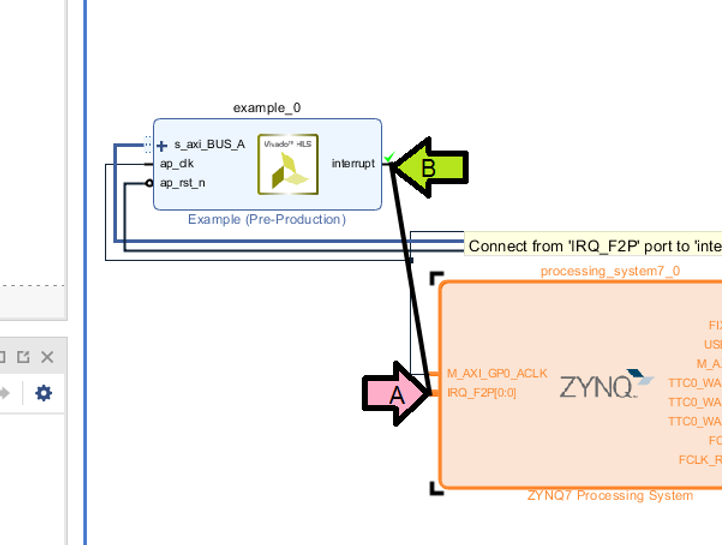

Step 3: Connect IRQ_F2P[0:0] to example_0 interrupt

A. Click and hold mouse button on IRQ_F2P[0:0]

B: Drag and release mouse button on interrupt

You should see:

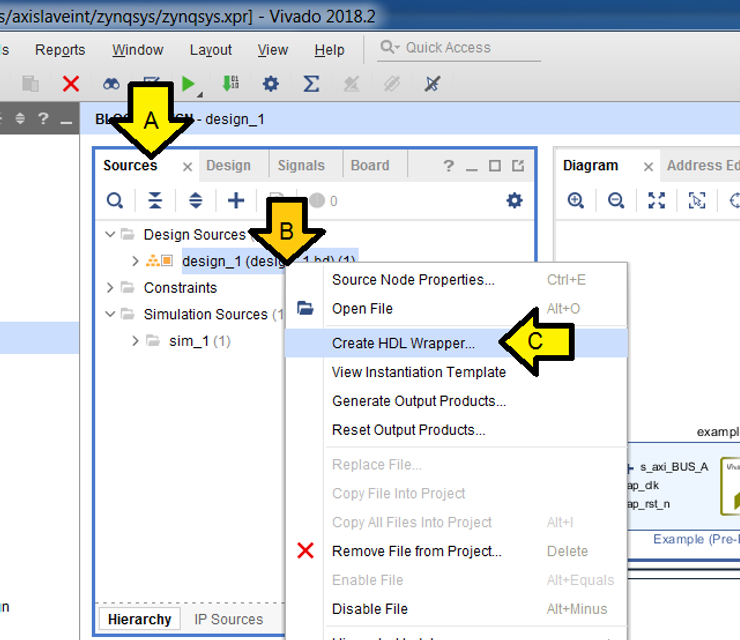

Part 6: Create a Top-Level HDL Wrapper

A. Click Sources

B. Right-click design_1 (design_1.bd) (1)

C. Click Create HDL Wrapper…

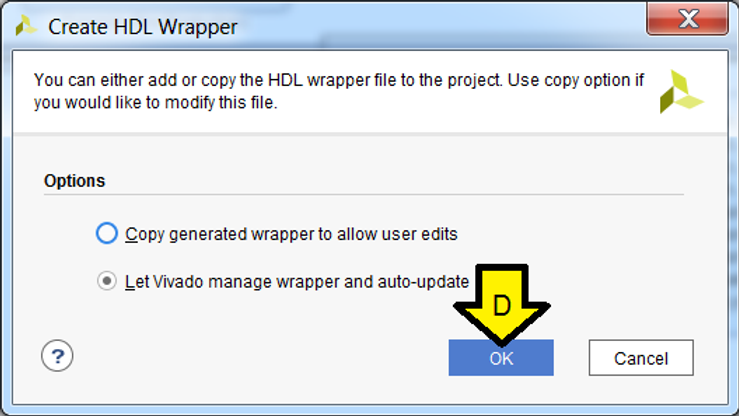

D. Leave Let Vivado manage wrapper and auto-update, click OK

After a little time you should see:

Part 7: Synthesize and Generate the Bitstream

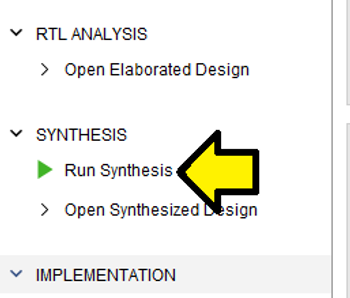

Step 1: Click Run Synthesis

Step 2: Use defaults, click OK

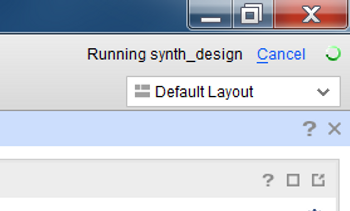

You’ll see the status in the upper right corner.

A sample of the output:

Step 3:

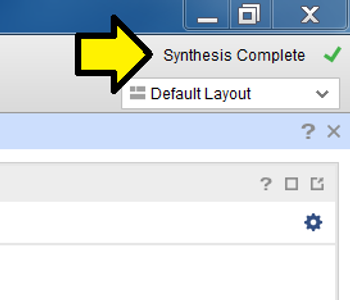

Wait approximately 1 to 5 min until you see Synthesis Complete in the upper right corner…

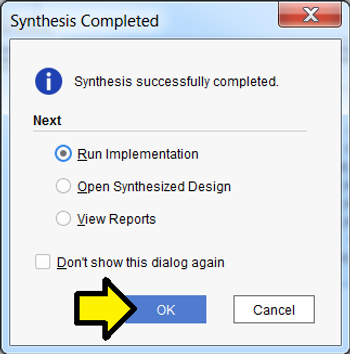

…and click OK to Run Implementation:

Step 4: Use defaults, click OK

Again, you’ll see status in the upper right:

Step 5:

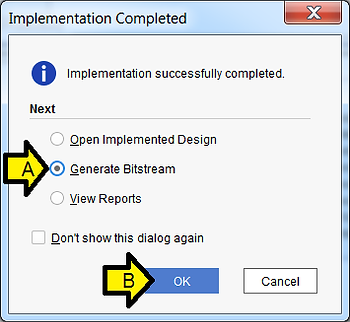

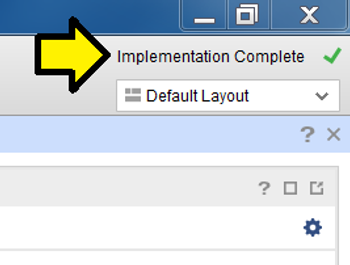

Wait approximately 1 to 5 min until you see Implementation Complete in the upper right corner…

A. Select Generate Bitstream

B. Click OK

Step 6: Use defaults, click OK

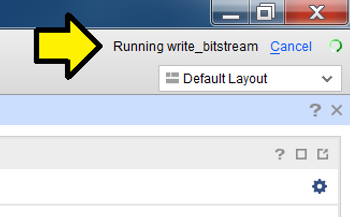

Again, you should see the status in the upper right:

Step 7: Click Cancel

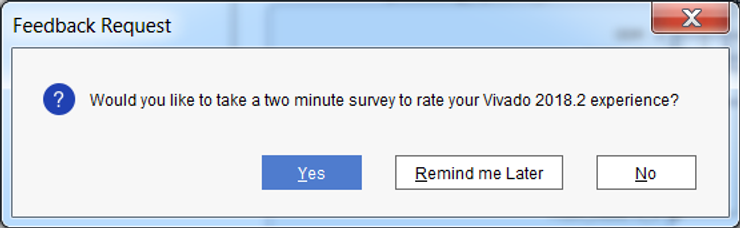

You may see this window pop-up:

Feel free to send feedback, set a reminder or click No. If you click No you may see:

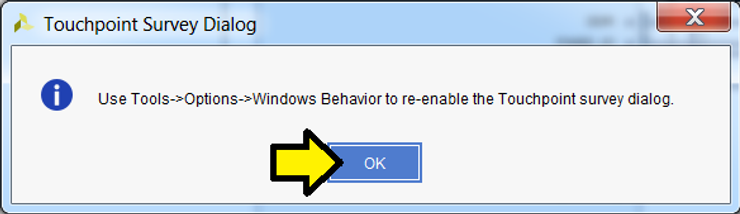

…click OK to dismiss.

Part 8: Export the Design and Open the SDK

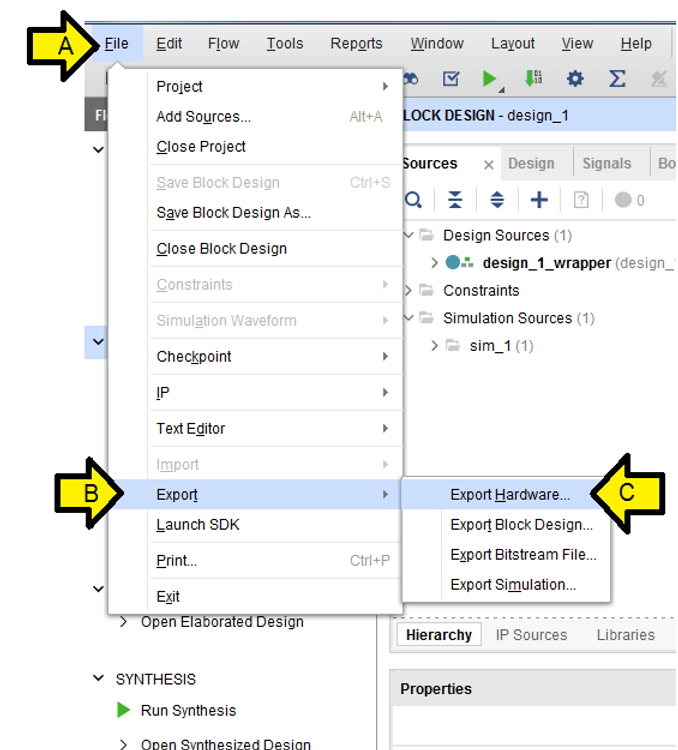

Step 1:

A. Click File

B. Click Export

C. Click Export Hardware…

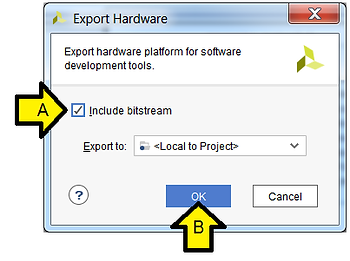

Step 2:

A. Click the Include bitstream checkbox

B. Click OK

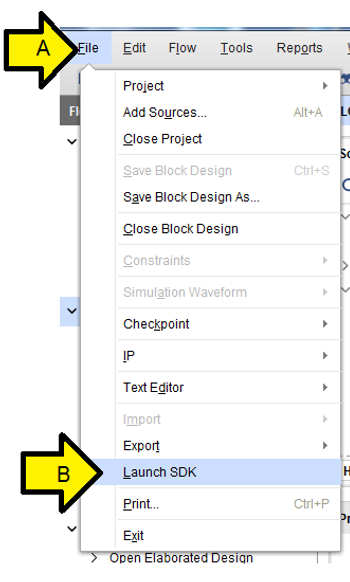

Step 3:

A. Click File

B. Click Launch SDK

Note: you can open the workspace directly from the SDK by opening the SDK and specifying C:\vivadoprjs\axislaveint\zynqsys\zynqsys.sdk as the workspace.

Step 4: Use defaults, click OK

You should see:

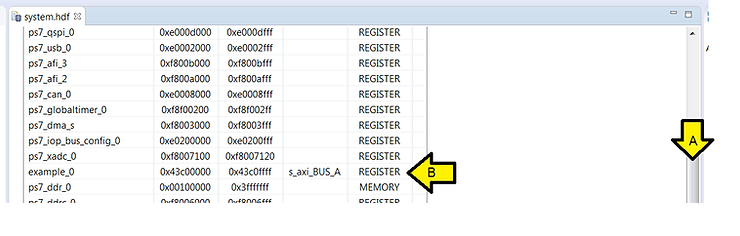

Note the Base Address of example_0:

A. Scroll down

B. Look for example_0

Part 9: Install the USB-to-UART Driver and Get the COM Assignment

Steps:

A. Goto [link] for the Silicon Labs CP210x USB to UART Bridge VCP Drivers

B. Download and unzip the correct installer for your OS

C. Install the driver (I did not need to restart on Windows 7 SP1)

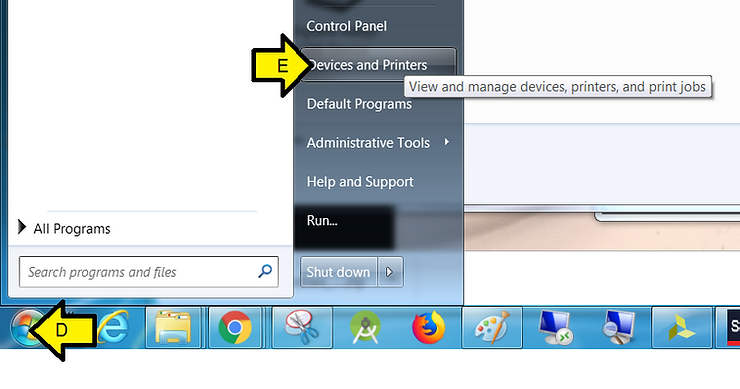

D. Click Windows

E. Click Devices and Printers

F. You should see Silicon Labs CP210x USB to UART BridgeG.

G. Note the COM port # (you’ll need this later)

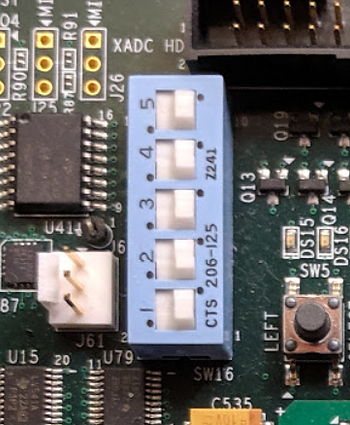

Part 8: Configure the Board to Boot from JTAG, Connect it to the PC and Power it On

For the rest of the jumpers see the high-resolution photo of the board in the correct state at [link]. Step 2: Connect a Micro-B to Type-A (host connection) USB cable from U23 (Diglent USB JTAG interface) to the host PC

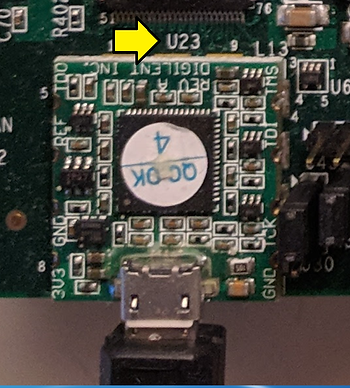

U23:

Micro-B connector:

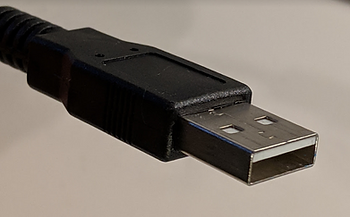

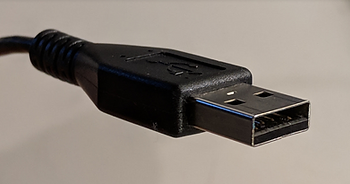

Type-A connector:

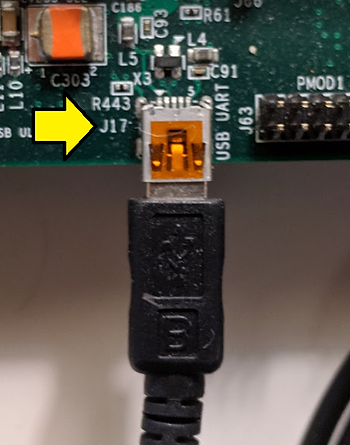

Step 3: Connect a Mini-B to Type-A (host connection) USB cable from J17 (CP2103GM USB-to_UART Bridge) to the host PC.

J17:

Mini-B connector:

Type-A connector:

Step 4: Turn on the board

Part 10: Create the Test App and BSP

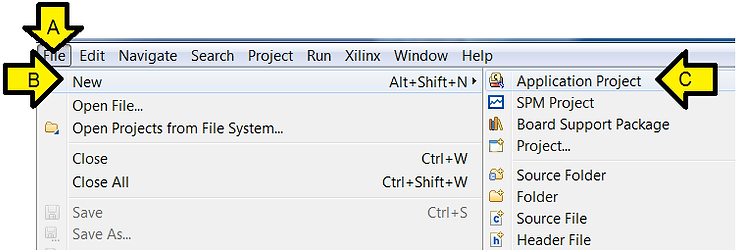

Step 1:

A. Click File

B. Click New

C. Click Application Project

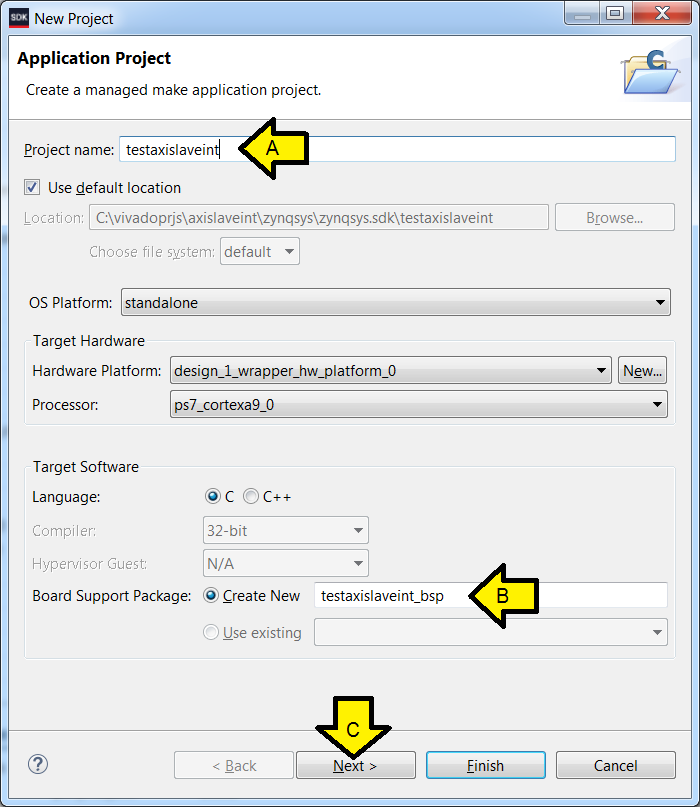

Step 2:

A. Type testaxislaveint into Project name:

B. Ensure the Board Support Package: Create New radio button is clicked and the name given is testaxislaveint_bsp

C. Click Next

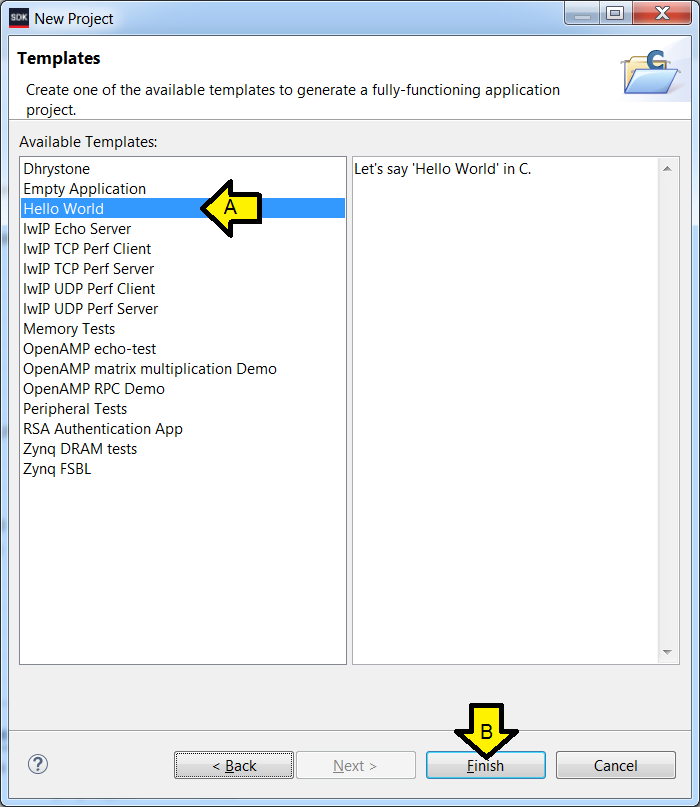

Step 3:

A. Click Hello World

B. Click Finish

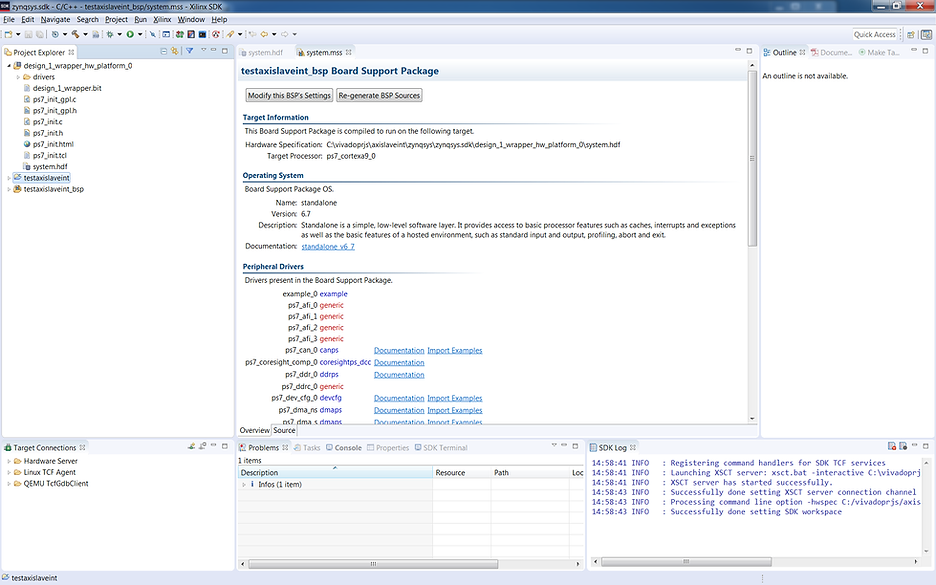

You should see:

Part 11: Test Debug Run + Further Config

These instructions allow debug to be set up more easily than entering in the details manually. After running a debug session, the Debug Configuration is fixed up to reset the FPGA and program the bitstream. The debugger COM port is also configured so that output can be read and the steps to test it and see Hello World are listed.

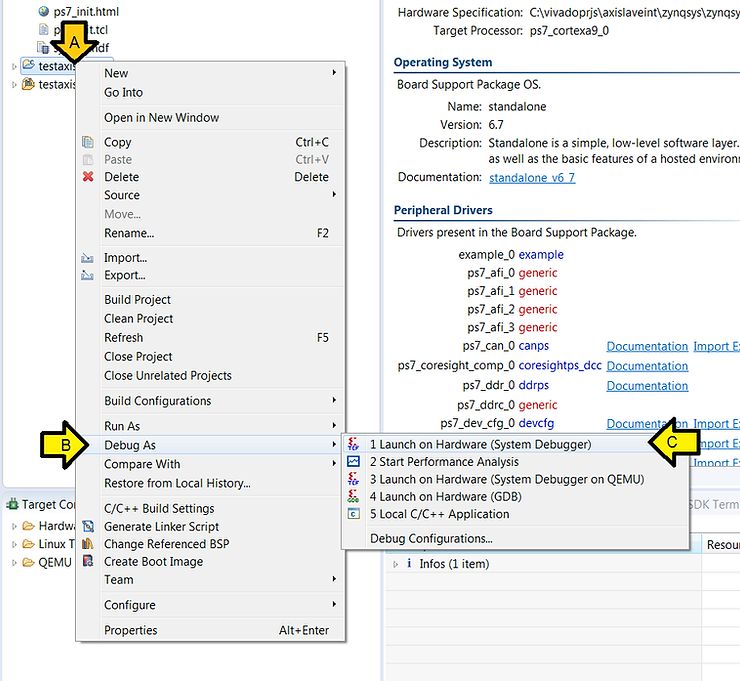

Step 1:

A. Right-click testaxislaveint

B. Click Debug As

C. Click Launch on Hardware (System Debugger)

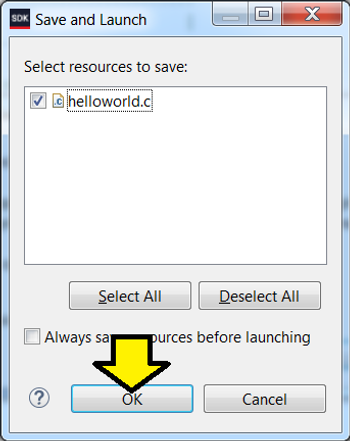

Step 2: Click OK (if you see this)

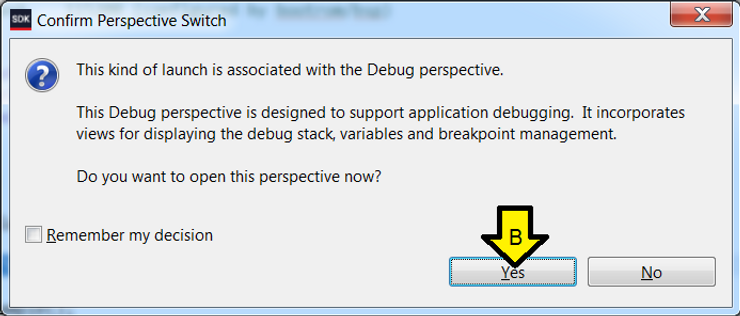

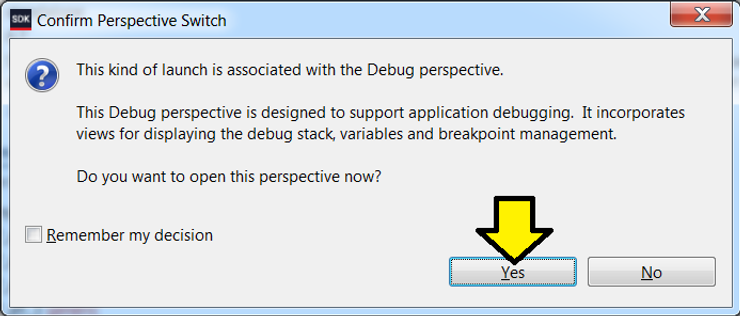

If you see this message click Yes. We’ll handle this in the next part.

…click Yes.

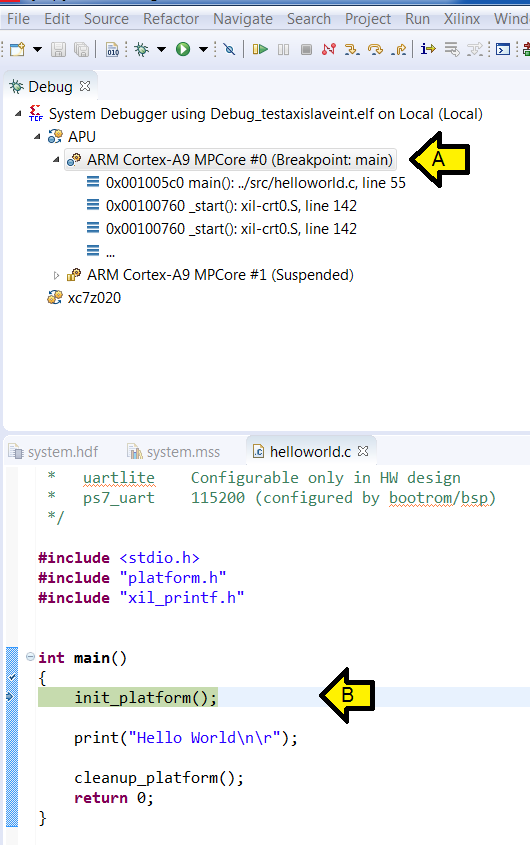

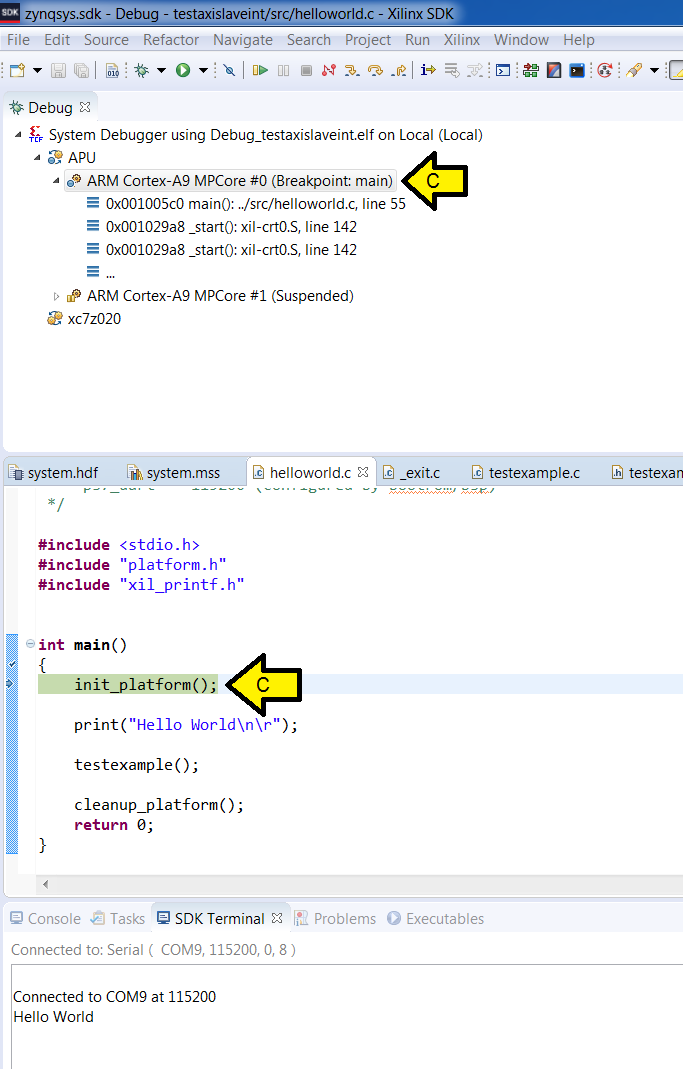

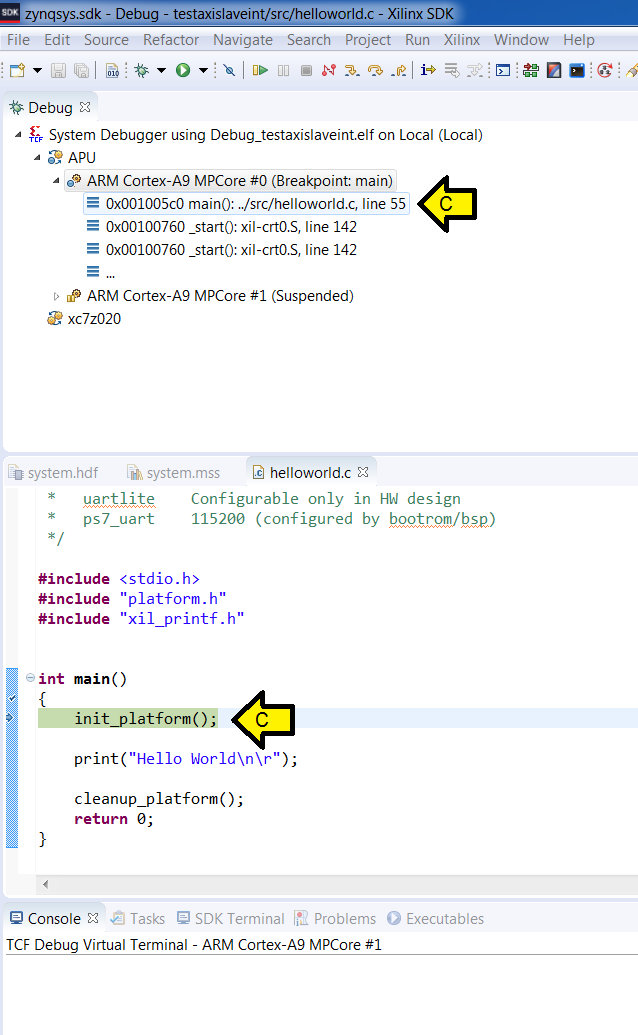

You should see the Debug Perspective display the code broken on init_platform():

A. Debug context on main()

B. helloworld.c on init_platform()

Step 3:

A. Click Run

B. Click Debug Configurations…

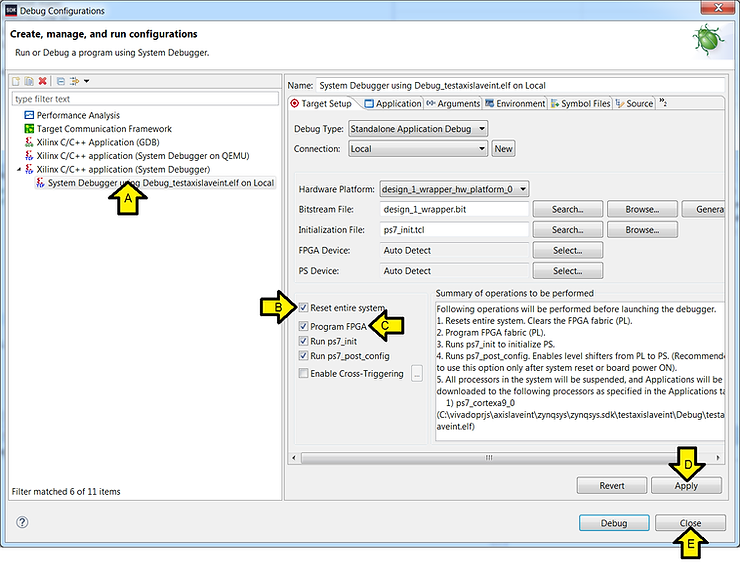

Step 4:

A. Ensure System Debugger using Debug_testaxislave on Local is selected (it should be)

B. Click the Reset entire system checkbox

C. Click the Program FPGA checkbox

D. Click Apply

E. Click Close

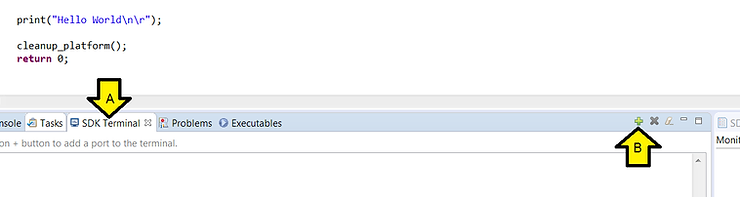

Step 5: Configure Debug View COM

A. Click SDK Terminal

B. Click the ’+’ (Connect to serial port.)

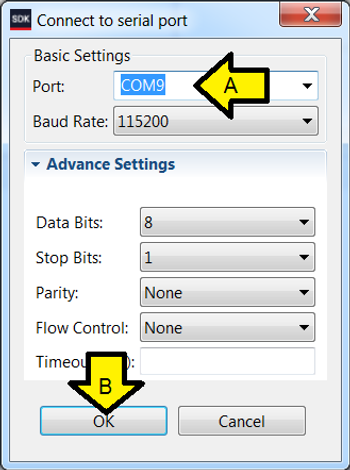

Step 6: Set Debug View COM settings

A. Enter the COM# from above

B. Click OK

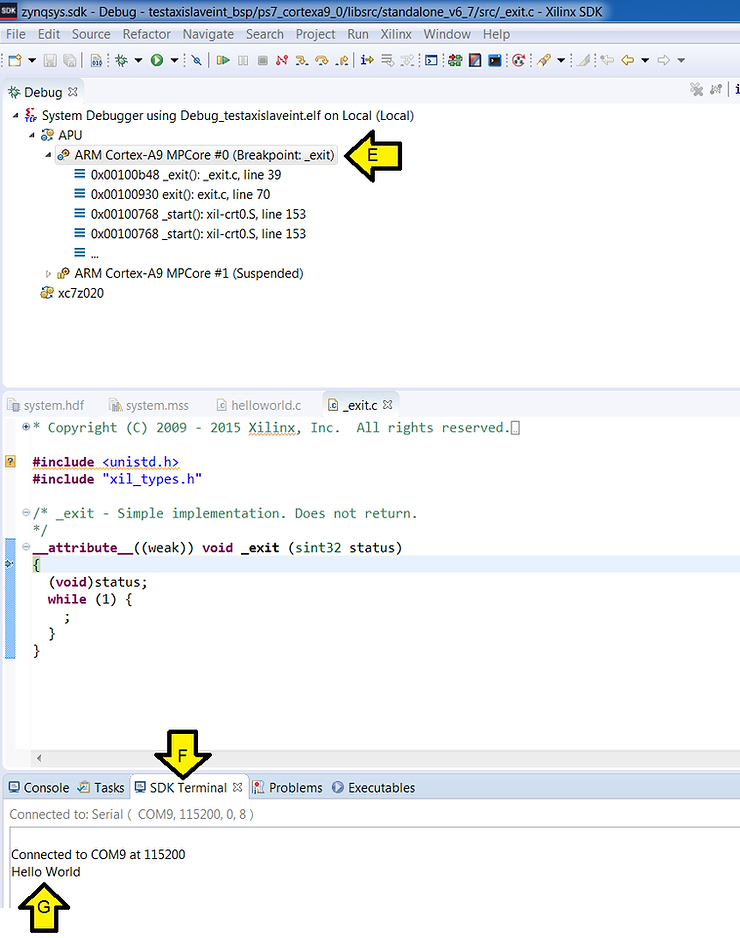

Step 7: Make sure you see Hello World on the console

A. Click on the bug

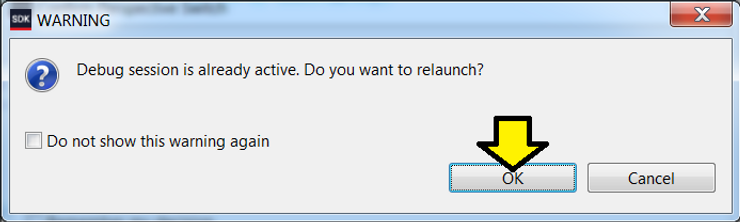

B. Click OK

C. Wait for the system to hit the breakpoint on main()

D. Click Resume

E. Wait until you see exit():

F. Click on SDK Terminal

G. Observe Hello World

Part 12: Test the AXI Module and the Interrupt

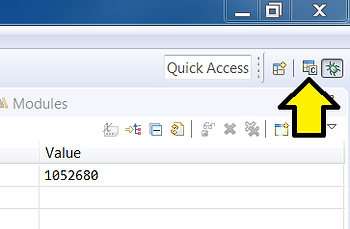

Step 1: Click on the C/C++ view

Step 2:

A. Expand testaxislaveint

B. Expand src

Step 3:

A. Right-click on src

B. Hover over New

C. Click File

D. Type testexample.c

E. Click Finish

F. Copy and paste the following code into testexample.c

#include  <stdlib.h>
#include "xil_printf.h"
#include "xparameters.h" // Parameter definitions for processor peripherals
#include "xscugic.h"	 // Processor interrupt controller device driver
#include "xexample.h" 	 // Device driver for HLS HW block

/* Example instance */
XExample example;

/* Interrupt Controller Instance */
XScuGic scugic;

volatile static int run_example = 0;
volatile static int result_available_from_example = 0;

void example_start(void *InstancePtr)
{
	XExample *example_instance = (XExample *) InstancePtr;

	XExample_InterruptEnable(example_instance, 1);
	XExample_InterruptGlobalEnable(example_instance);
	XExample_Start(example_instance);
}

void example_isr(void *InstancePtr)
{
	XExample *example_instance = (XExample *) InstancePtr;

	//Disable the global interrupt
	XExample_InterruptGlobalDisable(example_instance);

	//Disable the local interrupt
	XExample_InterruptDisable(example_instance, 0xffffffff);

	// clear the local interrupt
	XExample_InterruptClear(example_instance, 1);

	result_available_from_example = 1;

	// restart the core if it should run again
	if (run_example) {
		example_start(example_instance);
	}
}

static int connect_interrupt(void)
{
	//This functions sets up the interrupt on the Arm
	int status;

	XScuGic_Config *scugic_cfg = XScuGic_LookupConfig(XPAR_SCUGIC_SINGLE_DEVICE_ID);
	if (scugic_cfg == NULL) {
		xil_printf("Interrupt Configuration Lookup Failed\n\r");
		return XST_FAILURE;
	}

	status = XScuGic_CfgInitialize(&scugic, scugic_cfg, scugic_cfg->CpuBaseAddress);
	if(status != XST_SUCCESS) {
		return status;
	}

	status = XScuGic_SelfTest(&scugic);
	if(status != XST_SUCCESS) {
		return status;
	}

	Xil_ExceptionInit();

	Xil_ExceptionRegisterHandler(XIL_EXCEPTION_ID_INT,
			(Xil_ExceptionHandler) XScuGic_InterruptHandler, &scugic);

	Xil_ExceptionEnable();

	status = XScuGic_Connect(&scugic, XPAR_FABRIC_EXAMPLE_0_INTERRUPT_INTR,
			(Xil_InterruptHandler) example_isr, &example);
	if(status != XST_SUCCESS) {
		return status;
	}

	XScuGic_Enable(&scugic, XPAR_FABRIC_EXAMPLE_0_INTERRUPT_INTR);
	return XST_SUCCESS;
}

static int setup(void)
{
	int status;

	status = XExample_Initialize(&example, XPAR_XEXAMPLE_0_DEVICE_ID);
	if (status != XST_SUCCESS)
	{
		print("Failed XExample_Initialize()\r\n");
		return XST_FAILURE;
	}

	return XST_SUCCESS;
}

int add_w_interrupt(u8 a, u8 b, u8 *c)
{
	while(!XExample_IsIdle(&example));

	/* Reset available flag */
	result_available_from_example = 0;

	/* set the output to 0 */
	while(!XExample_IsReady(&example));
	XExample_Set_c_i(&example, 0);

	while(!XExample_IsReady(&example));
	XExample_Set_a(&example, a);

	while(!XExample_IsReady(&example));
	XExample_Set_b(&example, b);

	/* start the block */
	example_start(&example);

	/* wait until its done */
	while(!result_available_from_example);

	if (!XExample_Get_c_o_vld(&example))
		return XST_FAILURE;

	*c = XExample_Get_c_o(&example);

	return XST_SUCCESS;
}

int add_w_poll(u8 a, u8 b, u8 *c)
{
	while(!XExample_IsIdle(&example));

	/* set the output to 0 */
	while(!XExample_IsReady(&example));
	XExample_Set_c_i(&example, 0);

	while(!XExample_IsReady(&example));
	XExample_Set_a(&example, a);

	while(!XExample_IsReady(&example));
	XExample_Set_b(&example, b);

	/* start the block */
	XExample_Start(&example);

	/* wait until its done */
	while(!XExample_IsDone(&example));

	if (!XExample_Get_c_o_vld(&example))
		return XST_FAILURE;

	*c = XExample_Get_c_o(&example);

	return XST_SUCCESS;
}

enum interrupt_or_poll {
	INTERRUPT,
	POLL
};

static char *iorp_str[] =
{
		"Interrupt",
		"Poll"
};

int test(u8 a, u8 b, enum interrupt_or_poll iorp)
{
	int status;

	u8 c;
	char *str;

	if (iorp == INTERRUPT)
		str = iorp_str[0];
	else
		str = iorp_str[1];

	if (iorp == INTERRUPT)
		status = add_w_interrupt(a, b, &c);
	else
		status = add_w_poll(a, b, &c);

	if (status != XST_SUCCESS) {
		xil_printf("Failed to add in %s mode\r\n", str);
		return status;
	}

	u8 c_cpu = a + b;
	if (c != c_cpu) {
		xil_printf("FAILED: add(%u, %u) returned %u, which doesn't equal %u\r\n", a, b, c, c_cpu);
		return XST_FAILURE;
	}

	return XST_SUCCESS;
}

int test_interrupt(u8 a, u8 b)
{
	return test(a, b, INTERRUPT);
}

int test_poll(u8 a, u8 b)
{
	return test(a, b, POLL);
}

int test_all(void)
{
	int i, j;

	xil_printf("Test adding all values in %s mode: ", iorp_str[0]);
	for (i = 0; i < 0x100; i++)
		for (j = 0; j < 0x100; j++)
			if (test_interrupt(i, j) != XST_SUCCESS)
				return XST_FAILURE;
	xil_printf("PASSED\r\n");

	xil_printf("Test adding all values in %s mode: ", iorp_str[1]);
	for (i = 0; i < 0x100; i++)
		for (j = 0; j < 0x100; j++)
			if (test_poll(i, j) != XST_SUCCESS)
				return XST_FAILURE;
	xil_printf("PASSED\r\n");

	xil_printf("Test adding all values where modes switch off: ");
	for (i = 0; i < 0x100; i++) {
		for (j = 0; j < 0x100; j++) {
			if (test_poll(i, j) != XST_SUCCESS)
				return XST_FAILURE;
			if (test_interrupt(i, j) != XST_SUCCESS)
				return XST_FAILURE;
		}
	}
	xil_printf("PASSED\r\n");

	xil_printf("Test adding all values where modes switch off pseudo randomly: ");
	for (i = 0; i < 0x100; i++) {
		for (j = 0; j < 0x100; j++) {
			if (rand() % 2) {
				if (test_poll(i, j) != XST_SUCCESS)
					return XST_FAILURE;
			} else {
				if (test_interrupt(i, j) != XST_SUCCESS)
					return XST_FAILURE;
			}
		}
	}
	xil_printf("PASSED\r\n");
}

int testexample(void)
{
	int status;

	status = setup();
	if (status != XST_SUCCESS)
		return XST_FAILURE;

	status = connect_interrupt();
	if (status != XST_SUCCESS)
		return XST_FAILURE;

	xil_printf("Test 1+2 in %s mode: ", iorp_str[0]);
	if (test_interrupt(1, 2) != XST_SUCCESS)
		return XST_FAILURE;
	xil_printf("PASSED\r\n");

	xil_printf("Test 1+2 in %s mode: ", iorp_str[1]);
	if (test_poll(1, 2) != XST_SUCCESS)
		return XST_FAILURE;
	xil_printf("PASSED\r\n");

	if (test_all() != XST_SUCCESS)
		return XST_FAILURE;

	return XST_SUCCESS;
}

Step 6:

A. Right-click on src

B. Hover over New

C. Click File

Step 7:

A. Type testexample.h

B. Click Finish

Step 8: Copy and paste the following code into testexample.h

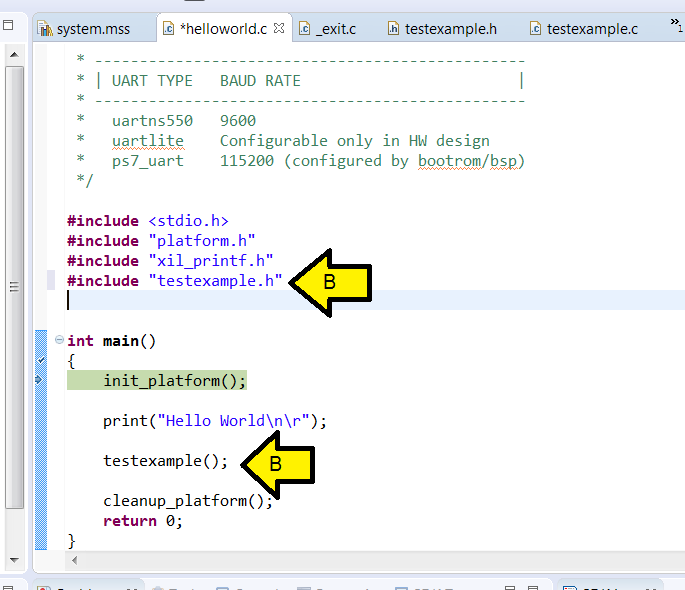

Step 9: Update helloworld.c

A. Double-click helloworld.c

B. Insert testexample(); after print(“Hello World\n\r”); and #include “test example.h” after #include “xil_printf.h”

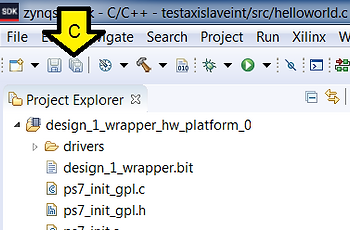

C. Click save-all

Step 10: Run it

A. Click on the bug

If you see WARNING pop-up this click OK

B. Click Yes to confirm the switch to the Debug perspective

C. You should see execution stopped at main(

D. Click Resume

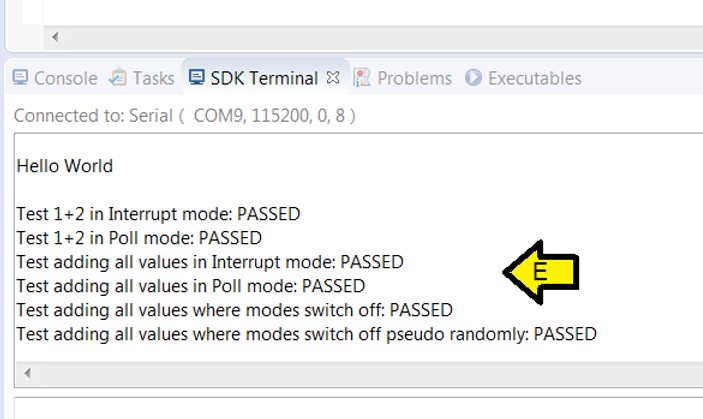

E. You should see all of the tests passing

References

• 2018.2 UG871 High-Level Synthesis (code at p.240-243) [link]

• Free Online HTML Escape / Unescape @ [link]

• Xilinx logo found via https://twitter.com/xilinxinc at [link]
